Connector Separation Point Wiring Diagram - PE54.18-P-2300-97BBC
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) up to model year 2020 Sheet 3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 105L |
| A15 | Additional instruments | 52L |
| A2 | Radio | 36L |
| A2 | Radio | 25L |
| A2 | Radio | 29L |
| A2 | Radio | 41L |
| A2/13 | Sound system amplifier control unit | 18L |
| B48/7 | Left front door pressure sensor | 15A |
| Code 535 | Smart Media System | 27A |
| Code 535 | Smart Media System | 33A |
| Code 537 | Smart Audio System | 39A |
| Code 583 | Power windows | 90A |
| Code 584 | Power windows with convenience feature and reversing function | 71A |
| Code 877 | Ambiance illumination | 44A |
| Code C08 | Audio preinstallation incl. rod antenna | 22A |
| Code P26 | Cool & Media Package | 33A |
| Code P26 | Cool & Media Package | 33B |
| Code P74 | Comfort package | 34B |
| Code SOUND | JBL sound system | 16A |
| Code V21 | Electrically adjustable and heated outside mirror | 20A |
| Code V21 | Electrically adjustable and heated outside mirror | 1A |
| Code V21 | Electrically adjustable and heated outside mirror | 34A |
| Code V21 | Electrically adjustable and heated outside mirror | 30A |

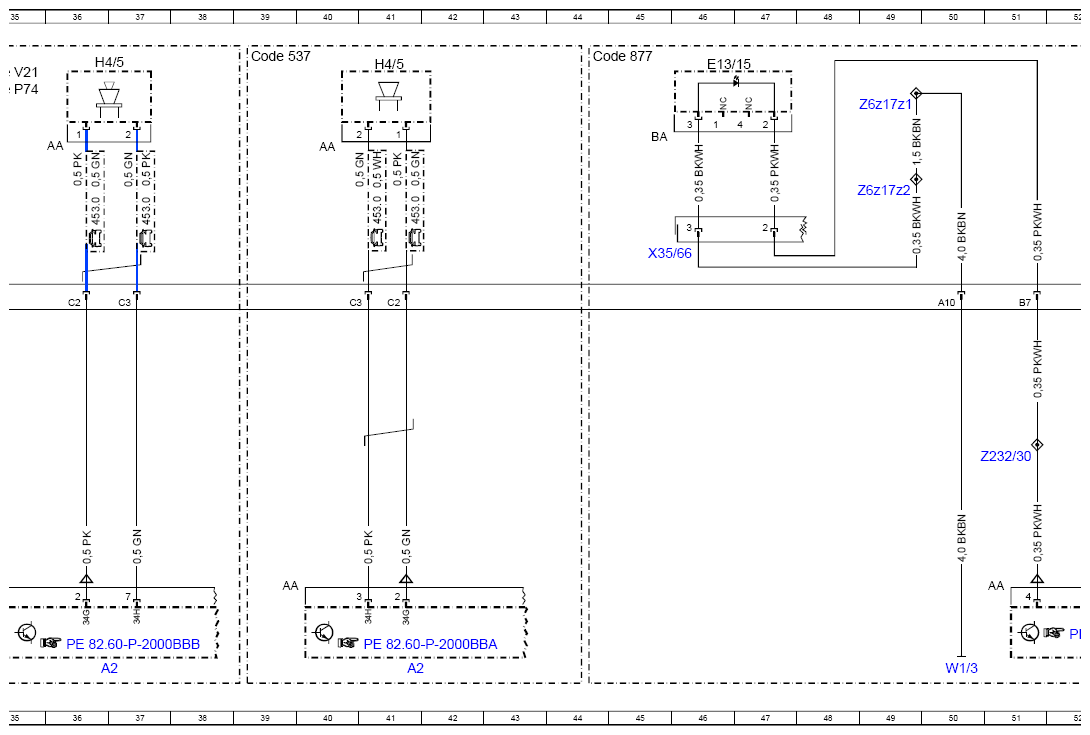

| E13/15 | Left front door ambiance illumination | 46A |
| F2 | Vehicle interior fuse and relay module | 10L |
| F2 | Vehicle interior fuse and relay module | 77L |
| F2 | Vehicle interior fuse and relay module | 94L |
| F2f14 | Fuse 14 | 92K |
| F2f18 | Fuse 18 | 8K |
| F2f43 | Fuse 43 | 10K |
| F2f44 | Fuse 44 | 76K |
| H4/33 | Left mirror triangle tweeter | 21A |
| H4/33 | Left mirror triangle tweeter | 32A |

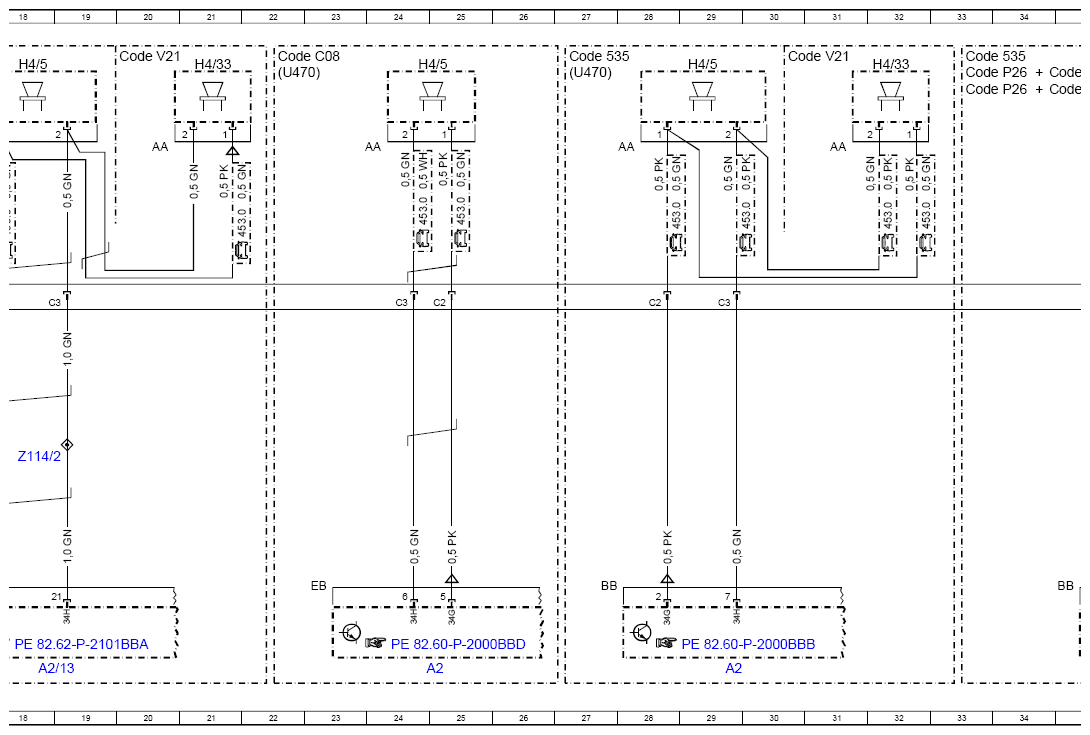

| H4/5 | Left front door speaker | 18A |
| H4/5 | Left front door speaker | 36A |
| H4/5 | Left front door speaker | 24A |
| H4/5 | Left front door speaker | 29A |
| H4/5 | Left front door speaker | 41A |

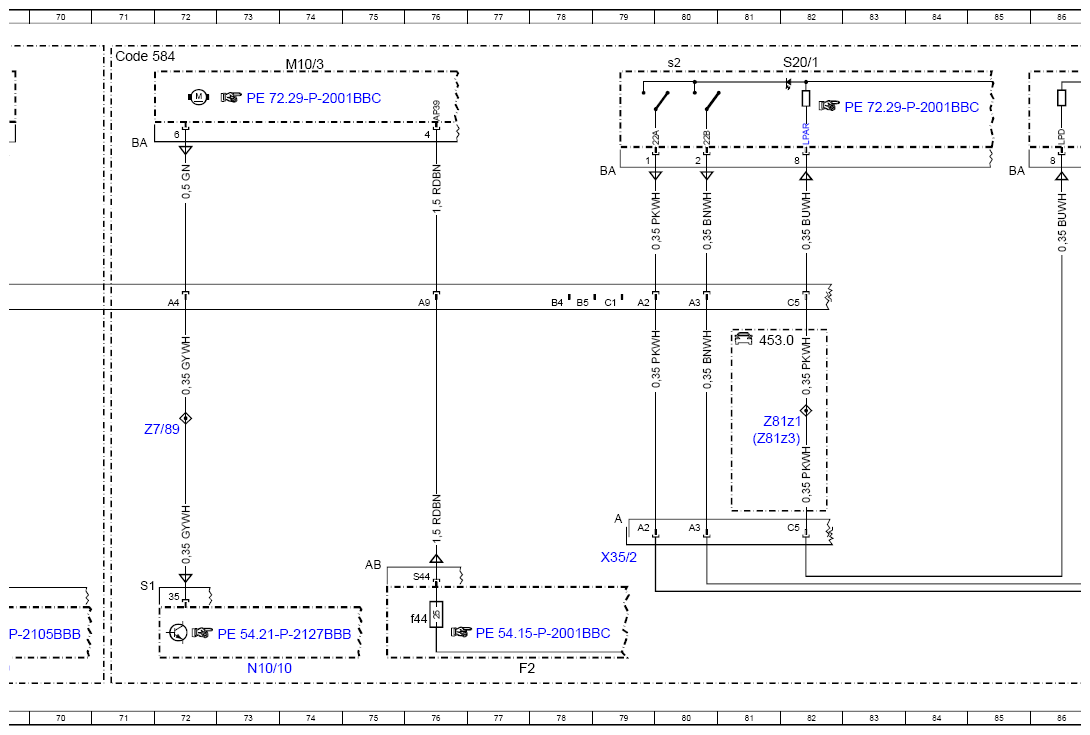

| M10/3 | Left front power window motor | 74A |
| M10/4 | Right front power window motor | 89L |

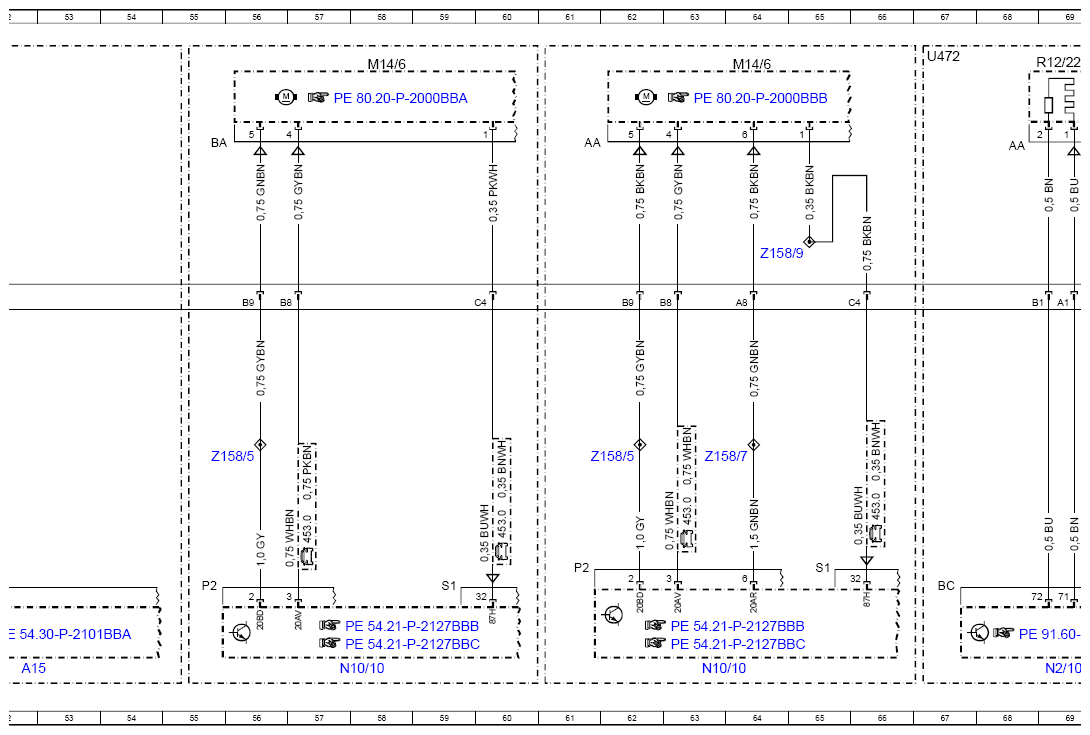

| M14/6 | Driver door central locking system actuator | 58A |
| M14/6 | Driver door central locking system actuator | 64A |
| M21/1 | Left electrically adjustable and heated outside mirror | 10A |
| M21/1m1 | Horizontal inclination adjustment actuator motor, left | 10B |
| M21/1m2 | Vertical inclination adjustment actuator motor, left | 10B |
| M21/2 | Right electrically adjustable and heated outside mirror | 6L |
| M21/2m1 | Horizontal inclination adjustment actuator motor, right | 6L |
| M21/2m2 | Vertical inclination adjustment actuator motor, right | 6K |
| N10/10 | Center SAM control unit | 58L |
| N10/10 | Center SAM control unit | 63L |
| N10/10 | Center SAM control unit | 73L |
| N2/10 | Supplemental restraint system control unit | 15L |
| N2/10 | Supplemental restraint system control unit | 69L |
| R12/22 | Left windowbag squib | 69A |

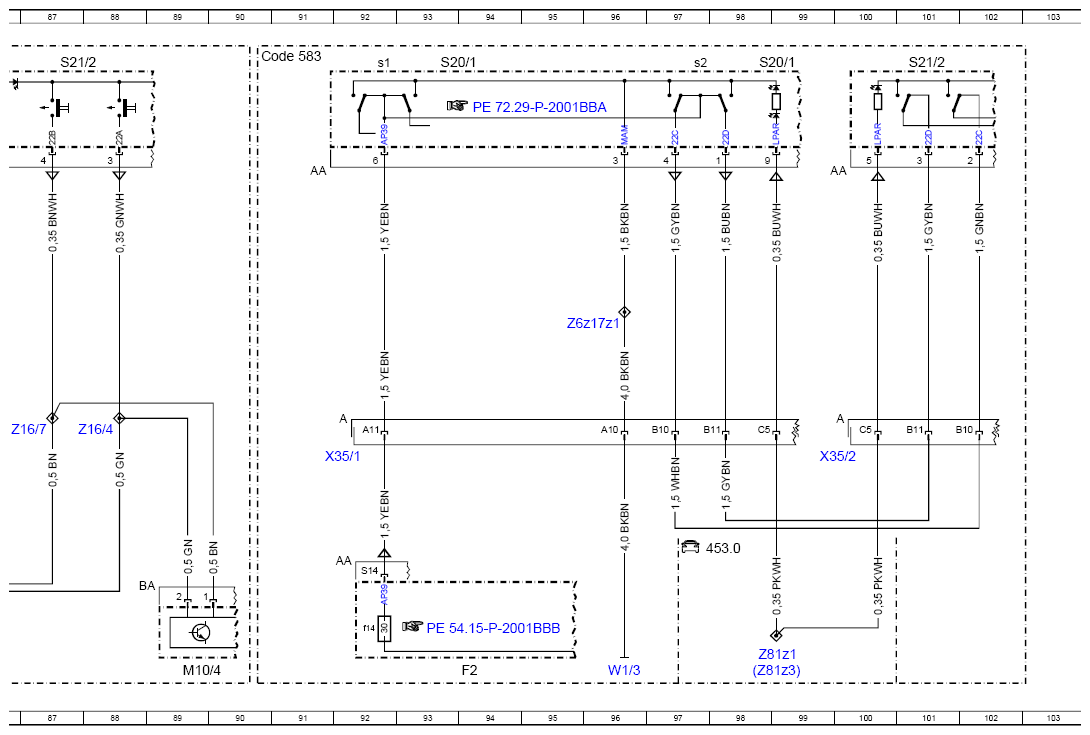

| S20/1 | Power window switch group, driver side | 82A |
| S20/1 | Power window switch group, driver side | 93A |
| S20/1 | Power window switch group, driver side | 98A |
| S20/1s1 | Left front power window switch | 92A |
| S20/1s2 | Right front power window switch | 80A |
| S20/1s2 | Right front power window switch | 97A |
| S21/2 | Passenger-side power window switch | 87A |
| S21/2 | Passenger-side power window switch | 101A |

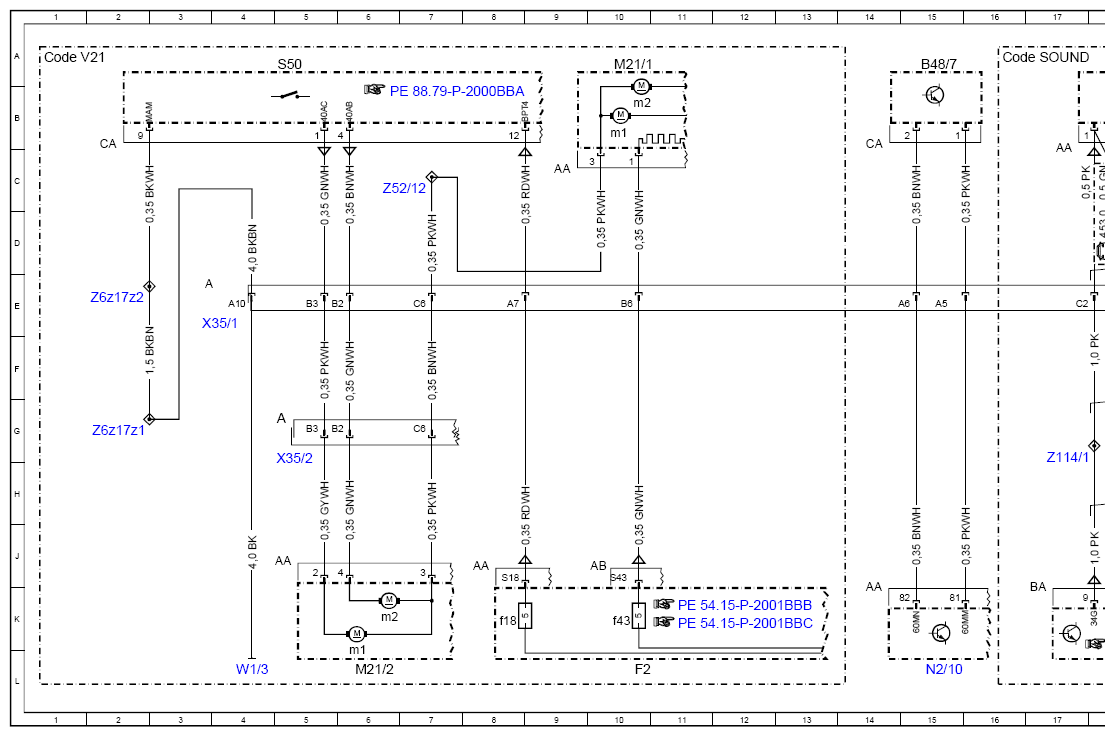

| S50 | Outside mirror adjustment switch | 5A |
| U470 | Valid for model 453.0 | 22A |
| U470 | Valid for model 453.0 | 27A |
| U472 | Valid for model 453.4 | 67A |
| W1/3 | Left cockpit ground point | 4L |
| W1/3 | Left cockpit ground point | 50L |
| W1/3 | Left cockpit ground point | 96L |
| X35/1 | Left front door electrical connector | 4E |
| X35/1 | Left front door electrical connector | 92H |
| X35/2 | Right front door electrical connector | 5H |
| X35/2 | Right front door electrical connector | 79J |
| X35/2 | Right front door electrical connector | 100H |
| X35/66 | Driver door electrical connector | 45D |
| Z114/1 | Left front speaker connector sleeve (+) | 17G |
| Z114/2 | Left front speaker connector sleeve (-) | 18G |
| Z158/5 | Central locking electric motors power supply connector sleeve | 56G |
| Z158/5 | Central locking electric motors power supply connector sleeve | 62G |
| Z158/7 | Central locking Superlocking signal connector sleeve | 64G |
| Z158/9 | Central locking driver door signal (-) connector sleeve | 64D |
| Z16/4 | Passenger-side power window motor "RAISE" signal connector sleeve | 88G |
| Z16/7 | Passenger-side power window motor "LOWER" signal connector sleeve | 87G |
| Z232/30 | Ambiance illumination power supply connector sleeve | 51G |
| Z52/12 | Outside mirror electric motors power supply connector sleeve | 7C |
| Z6z17z1 | Ground connection connector sleeve | 2G |
| Z6z17z1 | Ground connection connector sleeve | 49B |
| Z6z17z1 | Ground connection connector sleeve | 96E |
| Z6z17z2 | Ground connection connector sleeve | 2E |
| Z6z17z2 | Ground connection connector sleeve | 49C |
| Z7/89 | Line signal connector sleeve | 72G |
| Z81z1 | Circuit 58d connector sleeve | 82G |
| Z81z1 | Circuit 58d connector sleeve | 98L |
| Z81z3 | Circuit 58d connector sleeve | 81G |
| Z81z3 | Circuit 58d connector sleeve | 98L |
