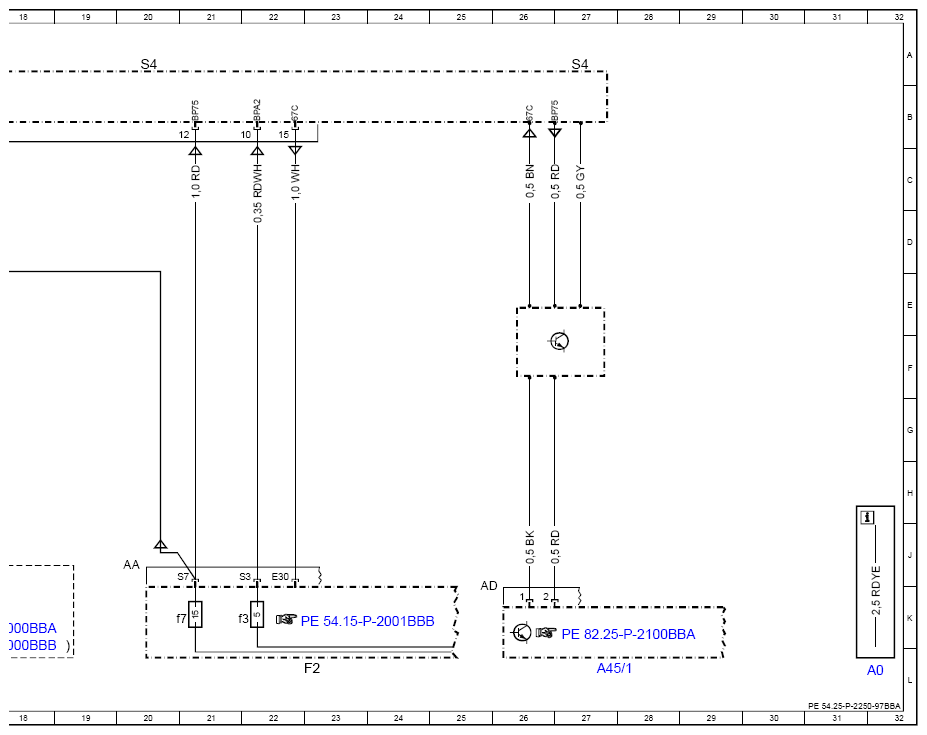

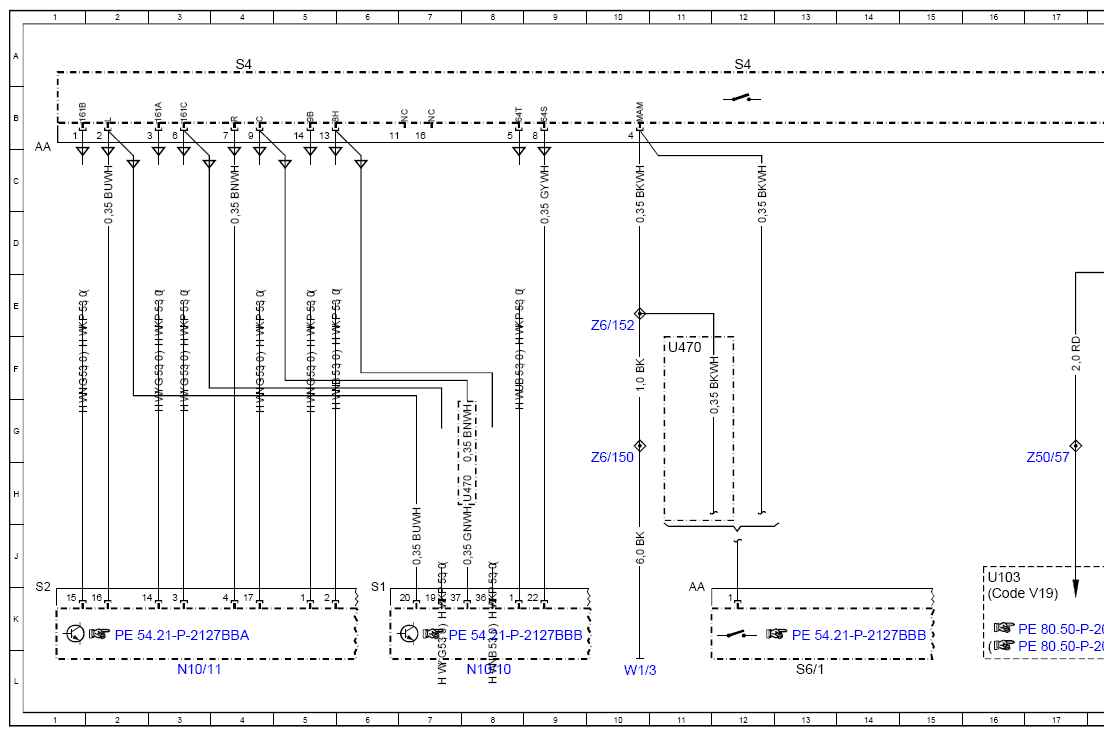

Combination Switch Wiring Diagram - PE54.25-P-2250-97BBA
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A45/1 | Steering wheel clock spring contact | 27L |
| Code V19 | Anti-theft alarm system | 16K |
| F2 | Vehicle interior fuse and relay module | 23L |
| F2f3 | Fuse 3 | 21K |
| F2f7 | Fuse 7 | 21K |
| N10/10 | Center SAM control unit | 8L |
| N10/11 | Driver SAM control unit | 3L |
| S4 | Combination switch | 4A |
| S4 | Combination switch | 12A |
| S4 | Combination switch | 20A |
| S4 | Combination switch | 27A |
| S6/1 | Instrument panel switch group | 13L |
| U103 | Valid without code V19 | 16J |
| U470 | Valid for model 453.0 | 8H |
| U470 | Valid for model 453.0 | 11F |
| W1/3 | Left cockpit ground point | 10L |
| Z50/57 | Circuit 30 (fused) connector sleeve | 17G |
| Z6/150 | Ground connection connector sleeve | 10G |
| Z6/152 | Ground connection connector sleeve | 10E |
