Disconnect/Connect Electrical Connectors - AR54.00-P-0051-01SRE

MODEL 453.091/391/491

Courtesy of MERCEDES-BENZ USA

Disconnect

Courtesy of MERCEDES-BENZ USA

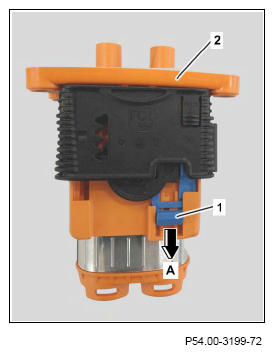

1. Press lock (1) of electrical connection (2) and slide in direction of arrow (A).

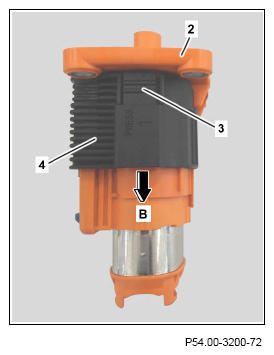

2. Push locking clip (3) at side on retaining ring (4) and slide retaining ring (4) in direction of arrow (B).

   Courtesy of MERCEDES-BENZ USA

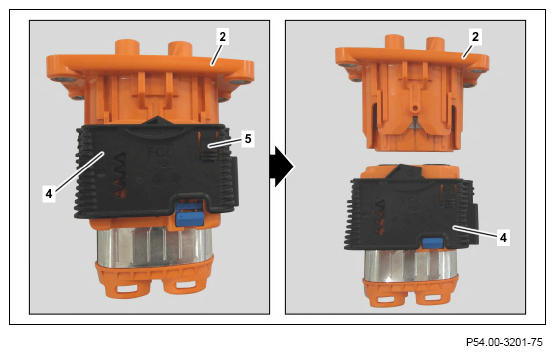

3. Push locking clip (5) at front on retaining ring (4) and disconnect electrical connection (2).
4. Seal separated electrical connection (2) with protective covers.

   Courtesy of MERCEDES-BENZ USA

   Connecting

5. Remove protective covers.
6. Connect electrical connection (2).

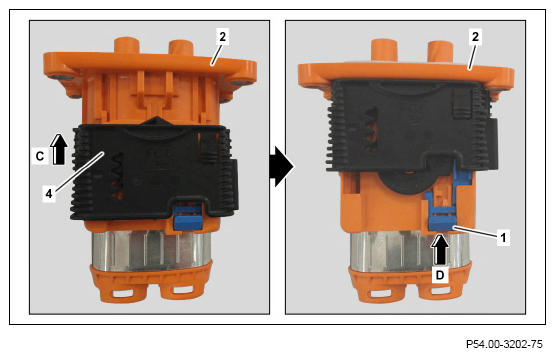

7. Slide retaining ring (4) until it noticeably latches into place in direction of arrow (C).
8. Slide lock (1) in direction of arrow (D).

Courtesy of MERCEDES-BENZ USA
