Check Lamps In Instrument Cluster And Interior Illumination - AP54.30-P-5453S
MODEL 453 (except 453.091/391/491)

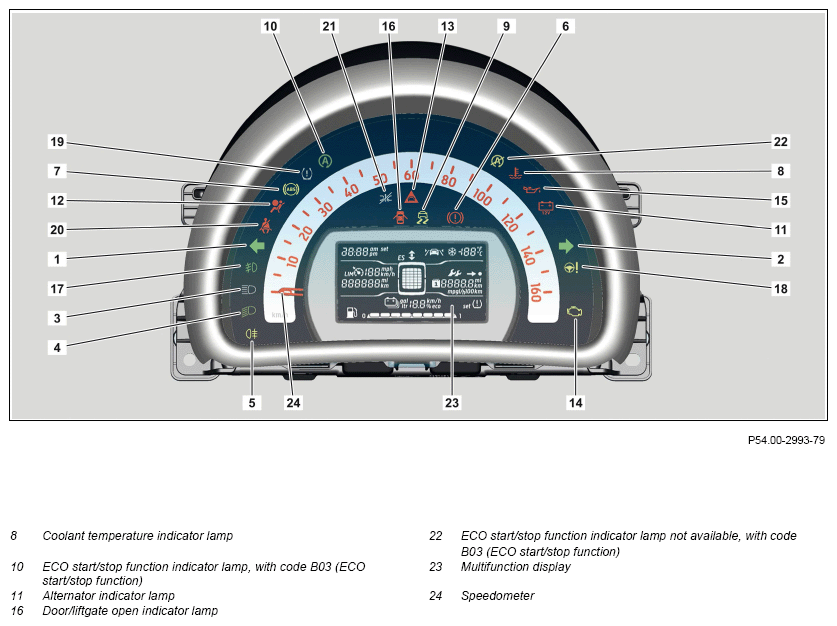

Shown with CODE (K35) Instrument cluster with monochrome display
| Preparatory activity | |||
| 1 | Switch electronic ignition lock control unit to position "2" (circuit 15) | ||
| Check | |||
| 2 | Check door/liftgate open indicator lamp (16) | If there is a problem |
|
| ↓ | |||
| Rectify problem subject to separate repair order. | |||
| 3 | Check ECO start/stop function not available indicator lamp (22) | Model 453 (except 453.091/391/491) with code B03 (ECO start/stop function) If there is a problem |
|
| ↓ | |||
| Rectify problem subject to separate repair order. | |||
| 4 | Check coolant temperature indicator lamp (8) | If there is a problem |
|
| ↓ | |||
| Rectify problem subject to separate repair order. | |||
| 5 | Check alternator indicator lamp (11) | If there is a problem |
|
| ↓ | |||
| Rectify problem subject to separate repair order. | |||
| 6 | Manually switch on the exterior lights | ||
| 7 | Check instrument illumination | ||
| ↓ | |||
| Rectify problem subject to separate repair order. | |||
| 8 | Check multifunction display (23) for visible pixel errors | If the multifunction display (23) exhibits vertical stripes, failed segments or black dots | |
| ↓ | |||
| Rectify problem subject to separate repair order. | |||
| 9 | Manually switch off exterior lights | ||
| 10 | Switch on lamps in passenger compartment and check for proper operation | If there is a problem |
|
| Rectify problem subject to separate repair order. | |||
| Finishing activity | |||
| 11 | Reset switch positions to input condition | ||
| 12 | Switch electronic ignition lock control unit to position "0" |
