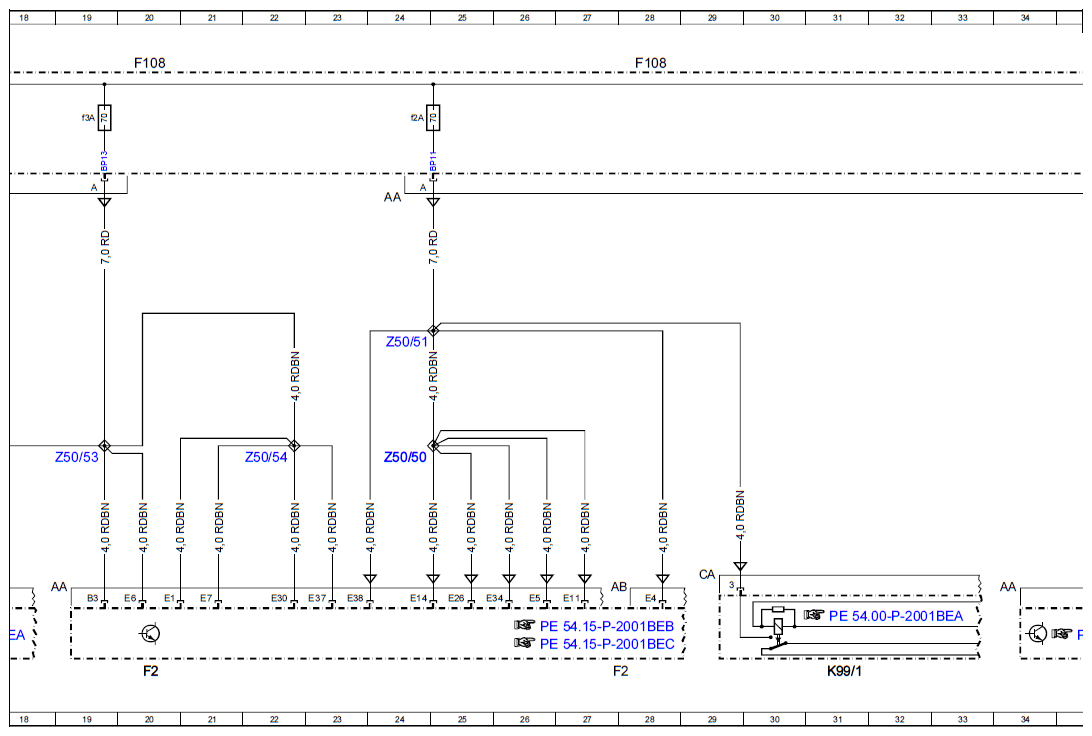

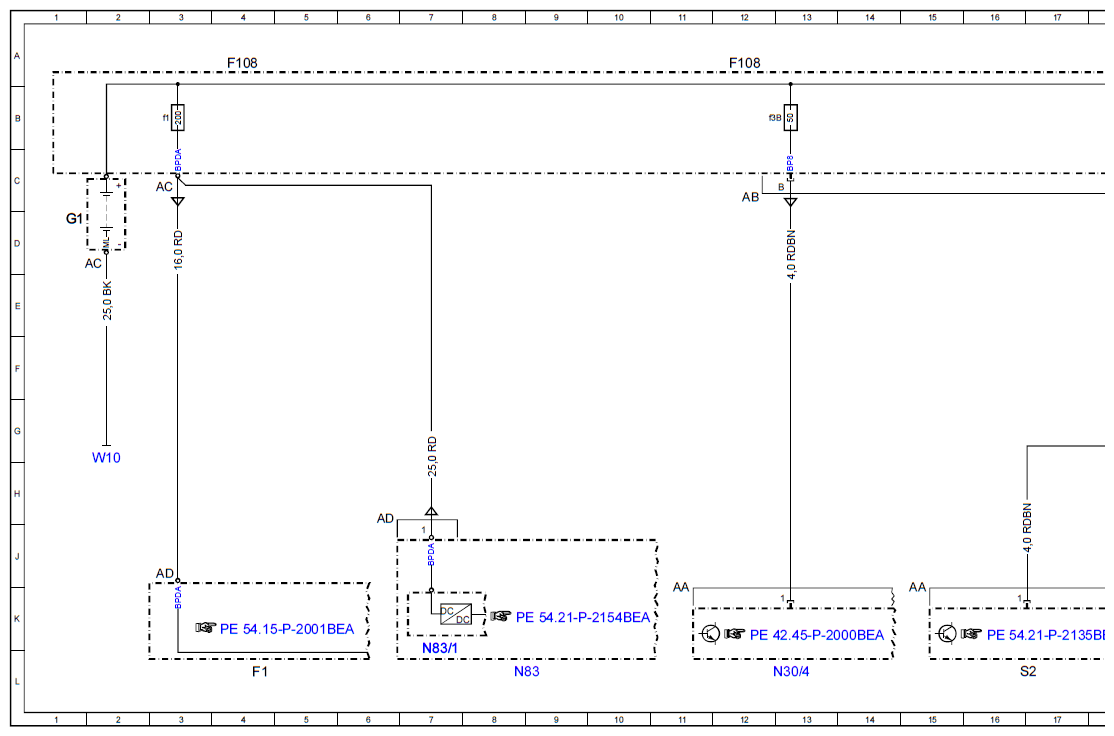

Wiring Diagram Of Starter, Alternator, Battery - PE15.00-P-2101-97BEA
MODEL 453.091/391/491 up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| F1 | Power supply fuse and relay module | 4L |
| F108 | Battery clamp fuse | 4A |
| F108 | Battery clamp fuse | 12A |
| F108 | Battery clamp fuse | 20A |
| F108 | Battery clamp fuse | 28A |
| F108 | Battery clamp fuse | 35A |
| F108f1 | Fuse 1 | 3B |
| F108f2A | Electrical fuse 2A | 24B |
| F108f2B | Electrical fuse 2B | 35B |
| F108f3A | Electrical fuse 3A | 19B |
| F108f3B | Electrical fuse 3B | 12B |
| F2 | Vehicle interior fuse and relay module | 20L |
| F2 | Vehicle interior fuse and relay module | 27L |
| G1 | On-board electrical system battery | 1D |
| K99/1 | Air conditioning blower motor power supply relay | 31L |
| N30/4 | Electronic Stability Program control unit | 13L |
| N68 | Electrical power steering control unit | 35L |
| N83 | High-voltage control unit box | 8L |
| N83/1 | DC/DC converter control unit | 7L |
| S2 | Ignition lock | 16L |
| W10 | Battery ground point | 2H |
| Z50/50 | Circuit 30 (fused) connector sleeve | 24G |
| Z50/51 | Circuit 30 (fused) connector sleeve | 24F |
| Z50/53 | Circuit 30 (fused) connector sleeve | 19G |
| Z50/54 | Circuit 30 (fused) connector sleeve | 22G |
