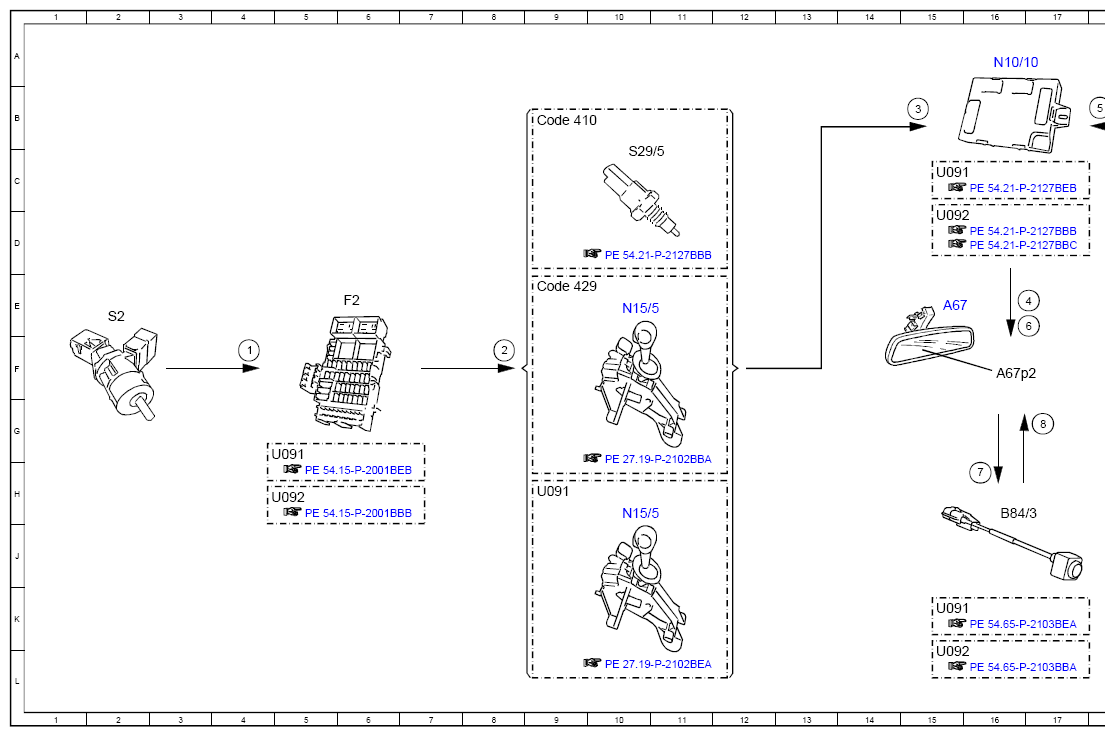

Electrical Function Schematic, Backup Camera - PE54.65-P-2051-97BBU
MODEL 453.3/4 as of model year 2018 with CODE 218 (Rear view camera) with CODE 494 (US version)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, signal | 4F |
| 2 | Terminal 15g, signal | 8F |
| 3 | Reverse gear engaged, signal | 15B |
| 4 | Reverse gear, status | 17E |
| 5 | Liftgate central locking system microswitch, status | 18B |
| 6 | Tailgate, status | 17E |
| 7 | Power supply, status ON | 16H |
| 8 | Video, signal | 17G |
| A67 | Inside rearview mirror | 15E |
| A67p2 | Reversing camera display (LAPV 6.1) | 16F |
| B84/3 | Backup camera | 16H |
| Code 410 | 5-speed manual transmission | 9B |
| Code 429 | twinamic | 9E |
| F2 | Vehicle interior fuse and relay module | 6E |
| M14/7s1 | Liftgate central locking system microswitch | 20A |
| N10/10 | Center SAM control unit | 16A |
| N15/5 | Electronic selector lever module control unit | 10H |
| N15/5 | Electronic selector lever module control unit | 10E |
| S2 | Ignition lock | 2E |
| S29/5 | Backup light activation/idle recognition switch | 10C |
| U091 | Valid for model 453.091/391/491 | 4G |
| U091 | Valid for model 453.091/391/491 | 15K |
| U091 | Valid for model 453.091/391/491 | 9H |
| U091 | Valid for model 453.091/391/491 | 15C |
| U092 | Except model 453.091/391/491 | 4H |
| U092 | Except model 453.091/391/491 | 15L |
| U092 | Except model 453.091/391/491 | 15D |
