Remove/Install Car2Go Wiring Harness - AR54.18-P-0200SR

MODEL 453.3 (except 453.391) with CODE P02 (car2go)

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A

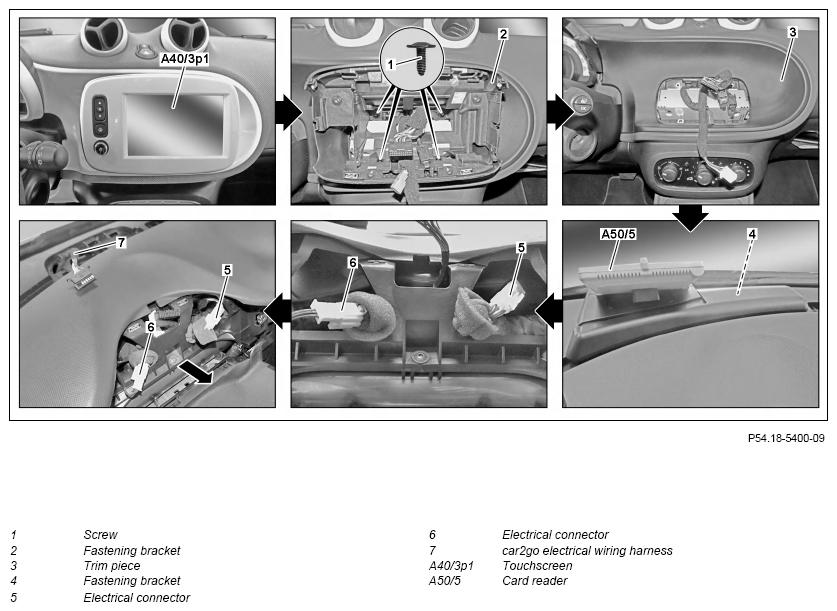

	Remove/install
1	Switch off ignition and remove ignition key from ignition lock
2	Remove touchscreen (A40/3p1) and instrument cluster (A1)		AR54.30-P-6015SR
3	Remove bolts (1) and remove mounting console (2)	: Check electrical wiring harnesses are correctly seated.
4	Unclip trim piece (3) and remove	Clip remover	Fig 1
5	Remove card reader (A50/5) from windshield		AR54.30-P-2000SR
6	Remove mounting console (4) from instrument panel		AR68.10-P-1580SR
7	Disconnect electrical connections (5, 6)
8	Remove electrical wiring harness for car2go (7)	: Check for correct seating of electrical wiring harness for car2go (7). Use pulling-in aid for removal/installation.
9	Install in the reverse order

Fig 1: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
