Charge Battery - AR54.10-P-1130SR
MODEL 453
MODIFICATION NOTES
| 16.06.2017 | "General information", inserted | Step 5 |
| Risk of injury caused by contact with battery gel when handling damaged lead-gel batteries | No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. | AS54.10-Z-0001-02A | |
| Risk of injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte or due to short circuit. Risk of burn injuries due to thermal changes. Risk of poisoning from swallowing battery electrolyte. | Wear protective gloves, protective clothing and safety glasses. In the event of escaping battery electrolyte, battery vapors, battery mist, smoke or heat development, secure the area, leave it and alert the fire department. | AS54.10-Z-0001-04A | |
| Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| Check | |||
| 1 | Open maintenance flap | With on-board electrical system battery (G1) installed. | |
| 2 | Check installation position of vent hose and stop plugs of on-board electrical system battery (G1) | With on-board electrical system battery (G1) installed. If there are problems ↓ Correct installation position of vent hose or stop plugs of on-board electrical system battery (G1). |
|
| 3 | Check condition of on-board electrical system battery (G1) | Not with on-board electrical system battery (G1) installed with active transport mode. | AR54.10-P-1129SR |
| Charging | |||

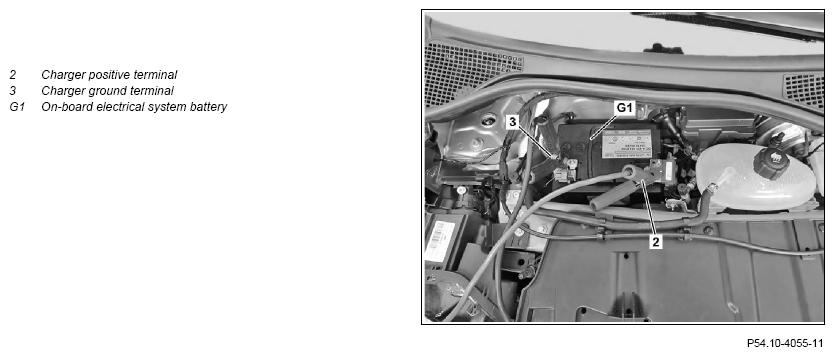

| 4 | Connect positive terminal for charger (2) to positive pole of on-board electrical system battery (G1) and ground clamp for charger (3) to negative pole of on-board electrical system battery (G1) | ||
| 000 588 00 81 00 Charger | Otherwise a short circuit will cause damage. |
WS54.00-P-0037B | |
| 5 | Charge on-board electrical system battery (G1) | The battery charging period depends on the charge level of the on-board electrical system battery (G1). The on-board electrical system battery (G1) is sufficiently charged when the displayed charging current is < 5 A. Interrupt charging process when charging current undershoots 25 A during Midtronics test. |
|
| 6 | Switch off charger | Arcing can otherwise occur. |
|
| 7 | Disconnect positive terminal for charger (2) from positive pole of on-board electrical system battery (G1) and ground clamp for charger (3) from negative pole of on-board electrical system battery (G1) and close maintenance flap | ||
| Check | |||
| 8 | Check condition of on-board electrical system battery (G1) | Not with active transport mode. | AR54.10-P-1129SR |
