Check Charging Cable And Vehicle Socket - AP54.10-P-5458A
MODEL 453 with ENGINE 780

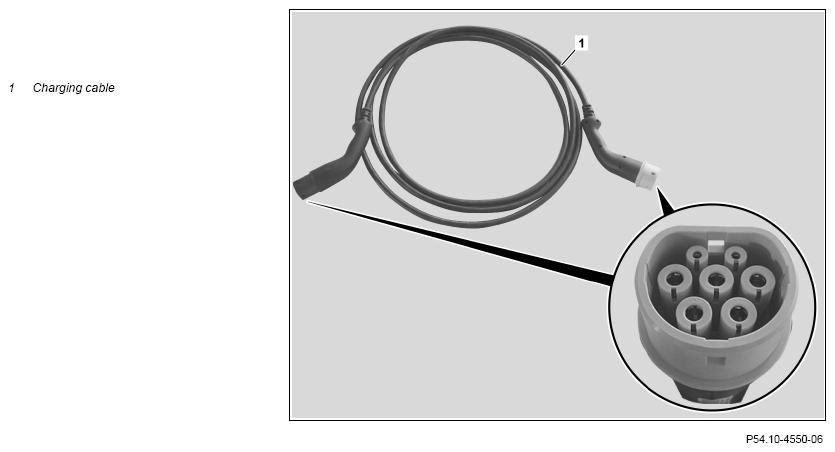

Shown on charging cable (1) for charging station

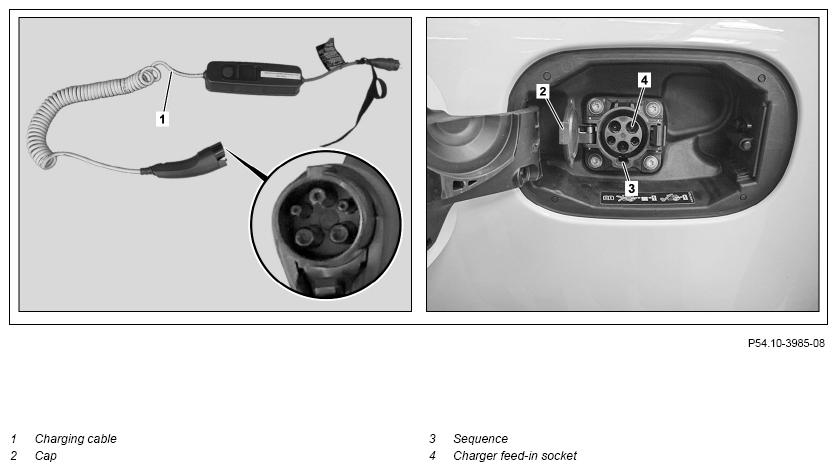

Shown on charging cable (1) with cable inspection box
| Risk of death when touching components on vehicles with high-voltage on-board electrical system | Do not touch damaged or defective components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers) must not carry out any work on high-voltage on-board electrical systems. | AS54.00-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||
| 1 | Remove charging cable (1) from vehicle. | ||
| Check | |||
| 2 | Check entire length of charging cable (1), plugs and switches for cracks, kinks, bites, cuts, crushed areas, chafe marks and other damage. | If problems occur, | |
| ↓ | |||
| replace charging cable (1). |
|||
| Install | |||
| 3 | Place charging cable (1) into vehicle. | ||
| Check | |||

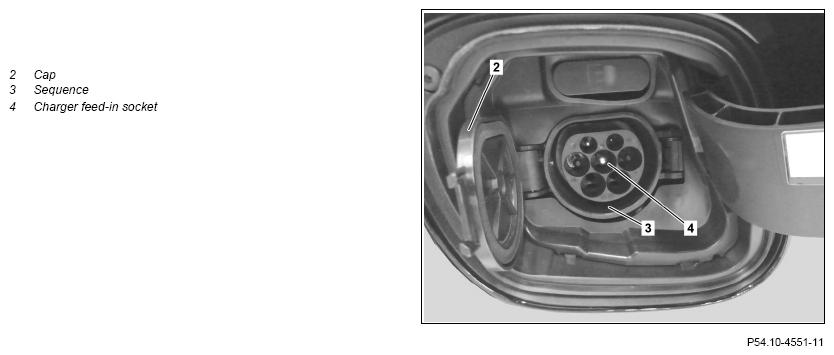

| 4 | Check charger feed socket (4) for damage. | If problems occur, | |
| ↓ | |||
| Replace charger feed socket (4). |
|||
| 5 | Check that cap (2) is firmly seated on charger feed socket (4). | If problems occur, | |
| ↓ | |||
| Replace charger feed socket (4). |
|||
| 6 | Check drain (3) for clear passage and soiling. | Soiling must not be present. This is because water must not collect in the charger feed socket (4) area. If problems occur, |
|
| ↓ | |||
| rectify problems. | |||
