Remove/Install Rear Taillamp Unit - AR82.10-P-4731SR

MODEL 453

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove/install
1	Open liftgate

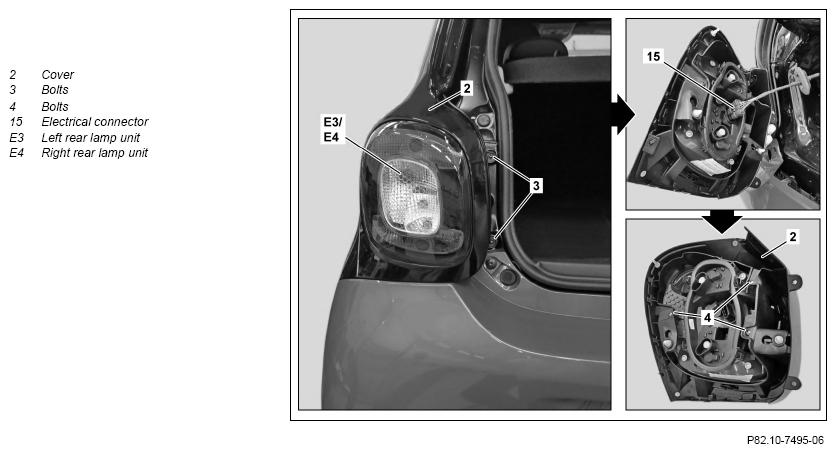

2	Unscrew screws/bolts (3) and unclip left rear lamp unit (E3) or right rear lamp unit (E4) while rotating it outwards
3	Disconnect electrical connector (15) and remove left rear lamp unit (E3) or right rear lamp unit (E4) from vehicle	The grommet of the subharness must be reinstalled in the body after removing the left rear lamp unit (E3) or the right rear lamp unit (E4).
4	Remove screws/bolts (4) and remove paneling (2) from left rear lamp unit (E3) or right rear lamp unit (E4)	When replacing left rear lamp unit (E3) or right rear lamp unit (E4).
5	Install in the reverse order
