Remove/Install Fog Lamps - AR82.10-P-1835SR
MODEL 453
with CODE V07 (Front fog lamps)

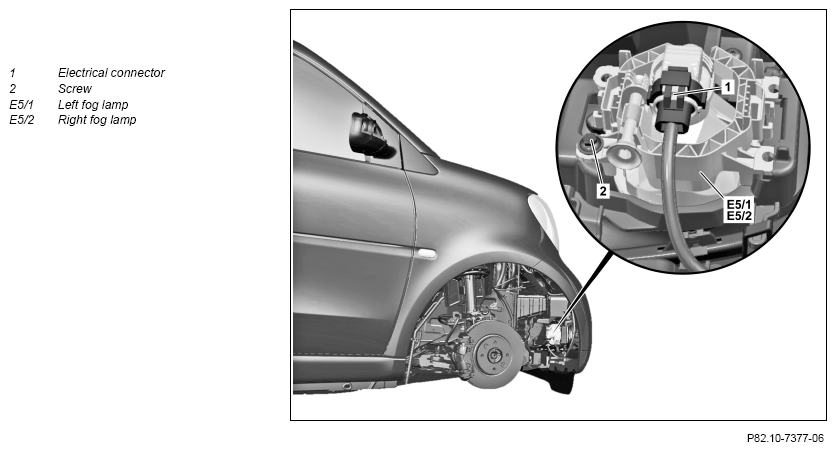

Shown on right side of vehicle
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and remove ignition key from ignition lock | ||
| 2 | Raise vehicle with vehicle lift | AR00.60-P-0100SR | |
| 3 | Detach front fender liner until left front fog lamp (E5/1) or right front fog lamp (E5/2) is accessible | ||
| 4 | Disconnect electrical connector (1) at left front fog lamp (E5/1) or right front fog lamp (E5/2) | ||
| 5 | Remove screw/bolt (2) of left front fog lamp (E5/1) or right front fog lamp (E5/2) | ||
| 6 | Remove left front fog lamp (E5/1) or right front fog lamp (E5/2) | Carefully lead left front fog lamp (E5/1) or right front fog lamp (E5/2) out of the front bumper towards the rear. Otherwise it may get scratched. |
|
| 7 | Install in the reverse order | ||
| Check | |||
| 8 | Check setting of left front fog lamp (E5/1) and right front fog lamp (E5/2), correct if necessary |
