Remove/Install Antenna For Radio - AR82.62-P-8108SRA

MODEL 453.3/4

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A

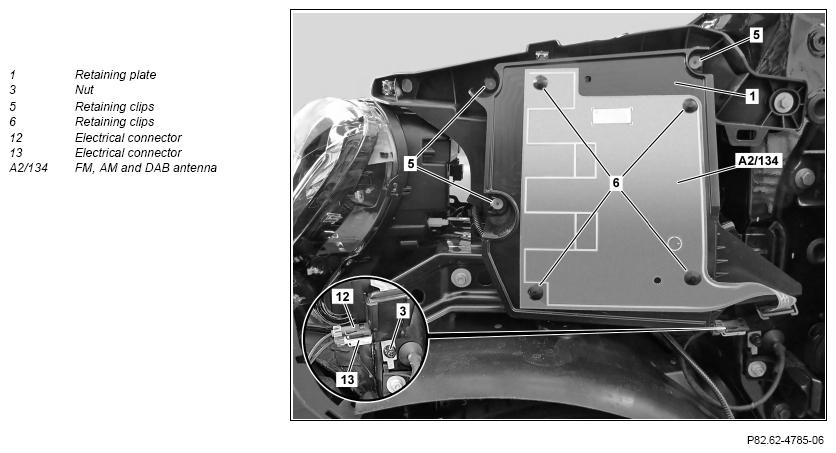

	Remove/install
1	Remove front left fender		AR88.10-P-1000SRA
2	Unscrew nut (3)
3	Disconnect electrical connectors (12, 13) from FM, AM and DAB antenna (A2/134)
4	Unclip retaining plate (1) with FM, AM and DAB antenna (A2/134)	Check retaining clips (5) for any damage. In case of damage ↓ Replace retaining clips (5).
5	Unclip retaining clips (6) of FM, AM and DAB antenna (A2/134) from retaining plate (1)	When replacing the FM, AM and DAB antenna (A2/134). Check retaining clips (6) for damage. Clip remover In case of damage ↓ Replace the retaining clips (6).	Figure
6	Remove antenna amplifier of FM, AM and DAB antenna (A2/134) from retaining plate (1)	When replacing the FM, AM and DAB antenna (A2/134).
7	Install in the reverse order

Fig 1: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
