Check/Adjust Front Fog Lamps - AP82.10-P-8265A
MODEL 453
| Preparatory tasks | |||
| 1 |
Determine degree of inclination for front fog lights Notes on determining headlamp aiming values |
AH82.10-P-1005-01A | |
| 2 | Park the vehicle on a horizontal, level surface |
|
|
| 3 | Prepare vehicle for front fog light checking/adjustment | Before the front fog lights are checked and adjusted, all operation steps listed in the linked description must be performed carefully. Otherwise it cannot be guaranteed that the front fog lights concerned are correctly set, which can then jeopardize the road safety of the vehicle! |
AP82.10-P-8260-10SR |
| 4 |

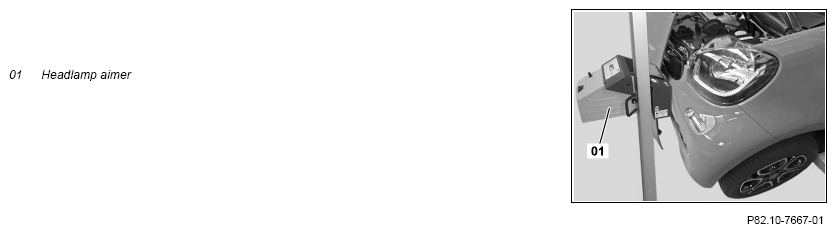

Align headlamp aimer (01) 000 588 11 21 00 Adjustment device |
It is essential to align the headlamp aimer (01) parallel to the front of the vehicle. The front fog light adjustment will otherwise be incorrect, which then may jeopardize the road safety of the vehicle! Other country-specific regulations or specifications in the operating instructions from the headlamp aiming device manufacturer must be observed accordingly. |
WS82.00-P-0151B |
| 5 | Set specified degree of inclination for front fog lights at headlamp aimer (01) | ||
| 6 | Switch on front fog lights at exterior lights switch | ||
| Check, adjust if necessary | |||
| 7 | Check front fog light setting, adjust if necessary | If the adjustment of the left or right front fog light is not correct: ↓ Correct the left or right front fog light by turning the adjustment screw. |
|
| Concluding tasks | |||
| 8 | Reset switch positions and, if necessary, load condition of vehicle to initial condition |
