Install Roof Paneling - Ar65.10-P-5702-03SR

Model 453.3 with code E23 (solid roof)

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

1. Install roof paneling (1) on roof frame with aid of helper.

   Observe gap dimensions (A, B, C).

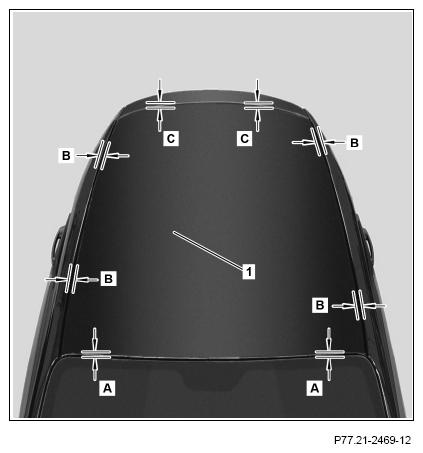

   Fig 2: Locating Dimensions A, B, & C

   Courtesy of MERCEDES-BENZ USA
2. Align roof paneling (1) according to previously determined gap dimensions (A, B, C) with feeler gauge and press on.

   Roof paneling (1) must with cast-on spacers rest on roof frame.

   Accordingly fix in place position of roof paneling.

3. Weight roof paneling (1) uniformly with sandbags until adhesive material has cured.

   Total weight of sandbags must be approx. 40 kg and must be uniformly distributed. Place sandbags in center first, then at rear and then at front.

   Adhesion problems of adhesive material and slippage can otherwise occur.
