Install And Weld In Wheel Well - Ar62.20-P-1200-17SR

MODEL 453

IMPORTANT The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side in the event of damage.

  1. Install longitudinal member (4), fit and fix in place.
  2. Drill 6.7 mm rivet holes in longitudinal member (4) (area S).

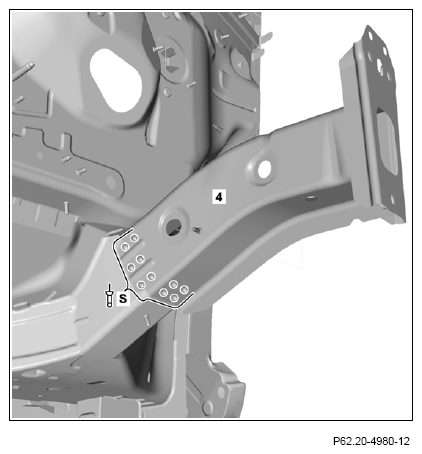

    Fig 1: Locating Area S
    G12094345Courtesy of MERCEDES-BENZ USA
  3. Remove longitudinal member (4).
  4. Deburr rivet holes on longitudinal member (4) and body on both sides.
  5. Install longitudinal member (4), fit and fix in place.
  6. Rivet longitudinal member (4) with 6.5 x 12.5 rivets (area S).
  7. Drill out longitudinal member (4) with a 7 mm bit one sheet metal thickness (area T).

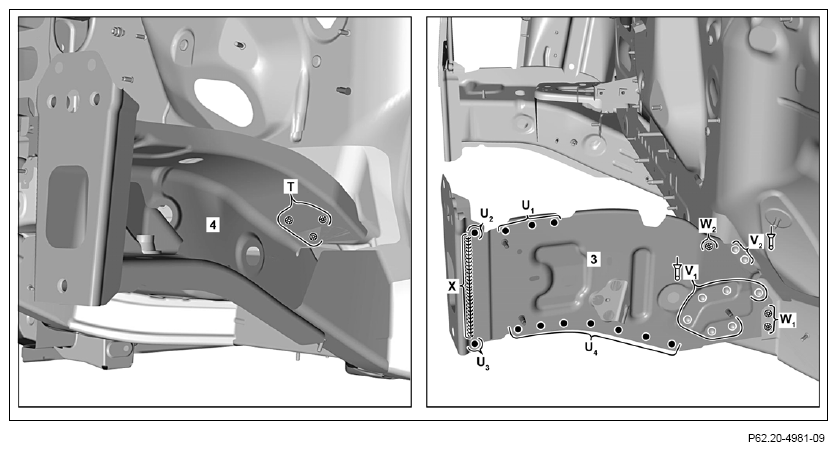

    Fig 2: Locating Areas T, U1, U 2, U3 , U4 , V 1 , V2 , W & X
    G12094346Courtesy of MERCEDES-BENZ USA

    Shown on MODEL 453.3

  8. longitudinal member (4) SHIELDED GAS PLUG WELD (area T).
  9. Install longitudinal member end plate (3), fit and fix in place.
  10. Drill longitudinal member end plate (3) with 6.7 mm bit (areas V 1 and V2 ).
  11. Remove longitudinal member end plate (3).
  12. Deburr rivet holes longitudinal member end plate (3) and body on both sides.
  13. Remove drilling shavings with wet/dry vacuum cleaner.
  14. Coat insides of riveted joints with zinc dust paint.
  15. Install longitudinal member end plate (3), fit and fix in place.
  16. Rivet longitudinal member end plate (3) with 6.5 x 12.5 rivets (areas V1 and V2 ).
  17. Longitudinal member (4) POLARIZATION RESISTANCE SINGLE-ROW SPOT WELD (areas U1 , U 2 , U3 and U4 ).
  18. Longitudinal member (4) BRAZING (area X).
  19. Install suspension strut tower (2), fit and fix in place.
  20. Drill suspension strut tower (2) with 6.7 mm bit (area Z).

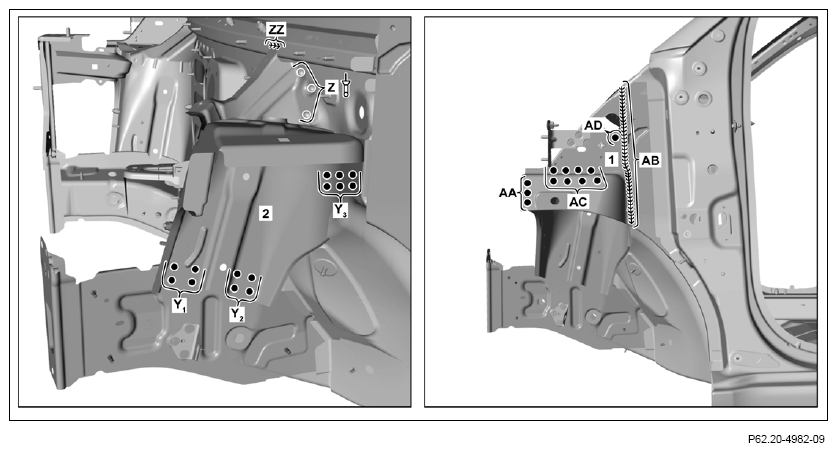

    Fig 3: Locating Areas Y1, Y2 and Y3 , Z, ZZ, AA, AB. AC, AD
    G12094347Courtesy of MERCEDES-BENZ USA

    Shown on MODEL 453.3

  21. Remove suspension strut tower (2).
  22. Deburr rivet holes on suspension strut tower (2) and body on both sides.
  23. Remove drilling shavings with wet/dry vacuum cleaner.
  24. Coat insides of riveted joints with zinc dust paint.
  25. Install suspension strut tower (2), fit and fix in place.
  26. Rivet suspension strut tower (2) with 6.5 x 12.5 rivets (area Z).
  27. Suspension strut tower (2) POLARIZATION RESISTANCE SINGLE-ROW SPOT WELD (areas Y1 , Y2 and Y3 ).
  28. Suspension strut tower (2) BRAZING (area ZZ).
  29. Install A-pillar end plate (1), fit and fix in place.
  30. A-pillar end plate (1) POLARIZATION RESISTANCE SINGLE-ROW SPOT WELD (areas AA, AC and AD).
  31. A-pillar end plate (1) MEXICO ONLY (area AB).

IMPORTANT Inert gas weld in intervals and allow welding area to cool down in between. Reduces heat distortion.
