Remove/Install Rear Left Brake Line From ESP® Hydraulic Unit To Underfloor - AR42.10-P-0003SR
MODEL 453
Shown on MODEL 453.3
| Risk of poisoning
from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid |
Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Remove/install | |||
| 1 | Unhook coolant expansion reservoir and remove from working area with lines connected | Model 453 with engine 281 | AR20.30-P-4950SR |

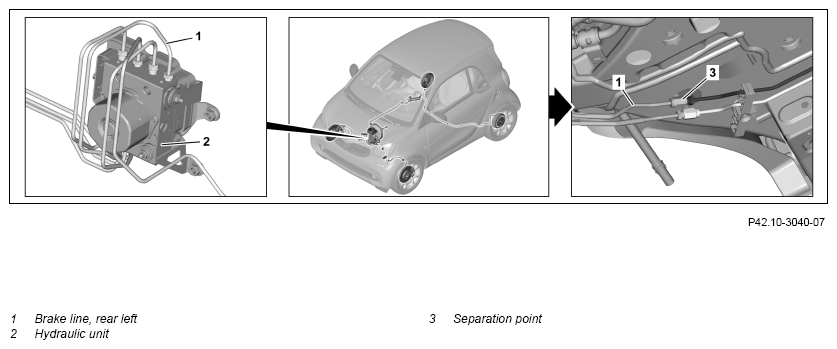

| 2 | Disconnect left rear brake line (1) from hydraulic unit (2) and seal off connections | *BA42.10-P-1004-04SR | |
| Fig 1 | |||
| 3 | Remove front axle | AR33.10-P-0100SR | |
| 4 | Disconnect left rear brake line (1) at connecting point (3) and seal off connections | *BA42.10-P-1005-04SR | |
| Fig 1 | |||
| 5 | Unclip left rear brake line (1) | ||
| 6 | Remove left rear brake line (1) | Do not kink or bend the left rear brake line (1). Leaks can occur otherwise. |
|
| 7 | Install in the reverse order |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 453 | |
|---|---|---|---|
| BA42.10-P-1004-04SR | Retaining screw, brake line to hydraulic unit | Nm | 14 |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 453 | ||
|---|---|---|---|---|
| BA42.10-P-1005-04SR | Retaining screw, brake line to threaded socket | Stage 1 | Nm | 8 |
| Stage 2 | ∠° | 40 | ||
