Remove/Install Master Brake Cylinder - AR42.10-P-0300SR
MODEL 453
| Risk of poisoning
from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid |
Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Remove/install | |||
| 1 | Reduce vacuum in brake booster (4) by depressing brake pedal several times | ||
| 2 | Remove brake fluid reservoir | AR42.10-P-0301SR | |
| 3 | Identify brake lines (2) at the corresponding connections | ||
| 4 | Detach brake lines (2) from master brake cylinder (1) and seal connections | *BA42.10-P-1003-04SR | |

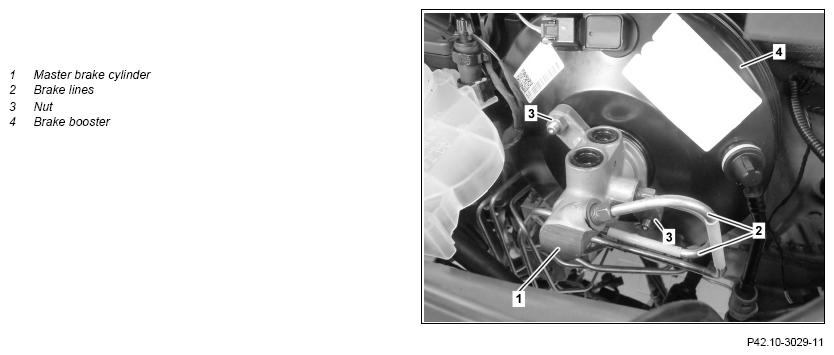

| Figure | |||
| 5 | Unscrew nuts (3) | *BA42.10-P-1001-05M | |
| 6 | Pull out master brake cylinder (1) directly forward out of brake booster (4) | Do not tilt master brake cylinder (1). The push rod will otherwise be pressed out of its axial position. Collect brake fluid which runs out with an absorbent rag. Otherwise the vehicle paint may be damaged. |
|
| 7 | Install in the reverse order |
MASTER BRAKE CYLINDER
| Number | Designation | MODEL 453 | |
|---|---|---|---|
| BA42.10-P-1001-05M | Nut, brake master cylinder to brake booster | Nm | 21 |
BRAKE LINES, BRAKE HOSES
| Number | Designation | MODEL 453 | |
|---|---|---|---|
| BA42.10-P-1003-04SR | Retaining screw, brake line to master brake cylinder | Nm | 14 |
