Remove Trim Piece On Parking Brake Lever - AZ42.20-P-0006-01SR

MODEL 453.0/3/4

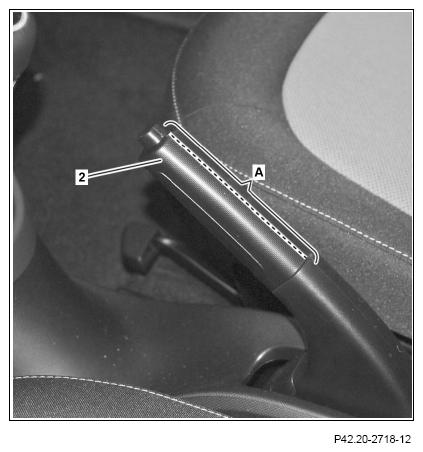

1. Separate trim piece (2) along broken line (area A).

   Do not cut too deeply.

   Otherwise the components below can be damaged and weakened.

   Use eccentric saw for separating.

2. Remove trim piece (2).

   Courtesy of MERCEDES-BENZ USA

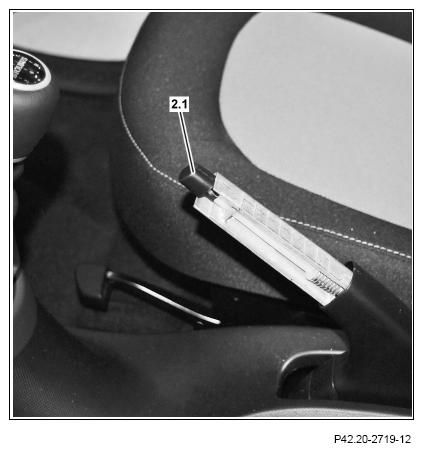

3. Detach knob (2.1).

   Courtesy of MERCEDES-BENZ USA
