Install Trim Piece On Parking Brake Lever - AZ42.20-P-0006-02SR

MODEL 453.0/3/4

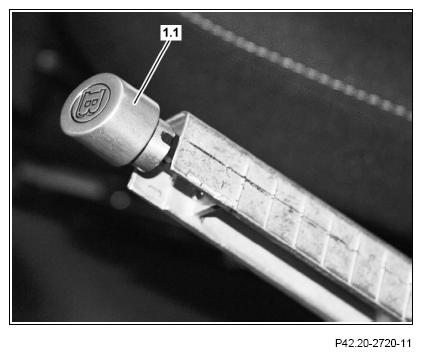

1. Insert knob (1.1) into parking brake lever.

   Courtesy of MERCEDES-BENZ USA

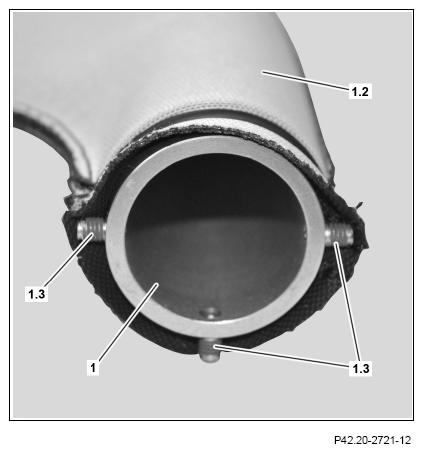

2. Fit boot (1.2) onto trim piece (1).
3. Screw grub screws (1.3) approx. 2 turns into trim piece (1).

   Courtesy of MERCEDES-BENZ USA

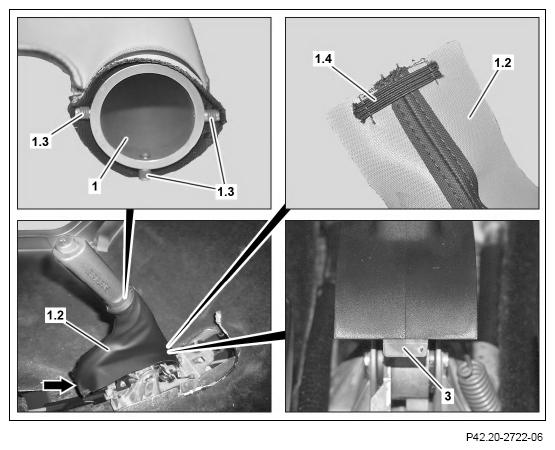

4. Fit trim piece (1) onto parking brake lever and align.
5. Tighten grub screws (1.3).
6. Pull boot (1.2) over parking brake lever.
7. Slide front section of boot (1.2) over parking brake lever (arrow).
8. Hook shackle (1.4) onto protrusion (3) of parking brake lever.
9. Align boot (1.2) so it is without any creases.

   Courtesy of MERCEDES-BENZ USA
