Assess Condition Of Brake Linings - AP42.10-P-4252S
MODEL 453
On front axle
MODIFICATION NOTES
| 09.05.2018 | Brake lining | BE42.10-P-1001-05Y |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Check | |||

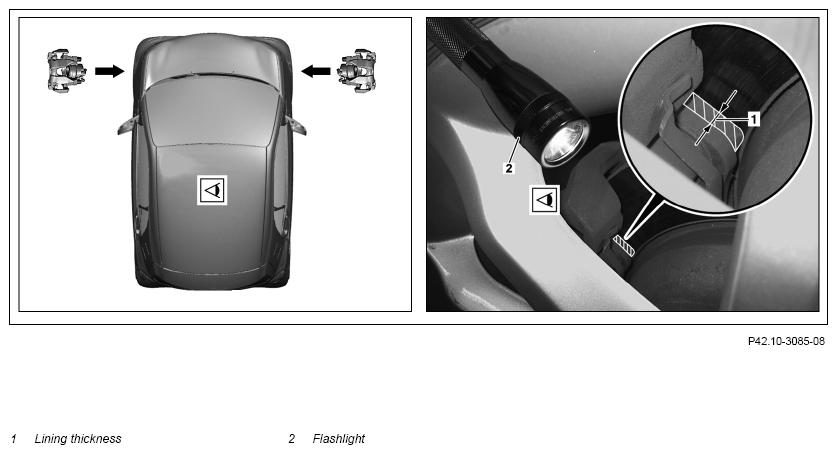

| 1 | Assess lining thickness (1) of brake linings on front axle | If, in exceptional cases, assessment by means of visual inspection is not possible: ↓ Detach wheel and tire assemblies and inspect them, subject to separate repair order. |
*BE42.10-P-1001-05Y |
| 2 | Determine likely remaining distance of brake linings on front axle | If the wear limit for the brake linings is reached, the brake linings must be replaced subject to separate repair order. Otherwise the braking effect may be impaired and people, property and environmental damage may result. In order to avoid an unscheduled workshop visit between services, it is necessary to determine the remaining distance of the present brake linings. If the remaining distance determined is smaller than the next service interval, premature brake pad replacement should be recommended to the customer. |
AP42.10-P-4253-03EW |
CHECK VALUES FOR FRONT BRAKE LINING
| Number | Designation | Model 453 | ||
|---|---|---|---|---|
| BE42.10-P-1001-05Y | Brake lining | Brake pad, new | mm | 12 |
| Pad backing plate | mm | 5, 5 | ||
| Wear limit | mm | 2 | ||
| Wear indicator activated (if installed) | mm | 2-3 | ||
