Remove/Install Soft Top Bow On Soft Top - AR77.30-P-1200MCO
MODEL 451.4, 453.4

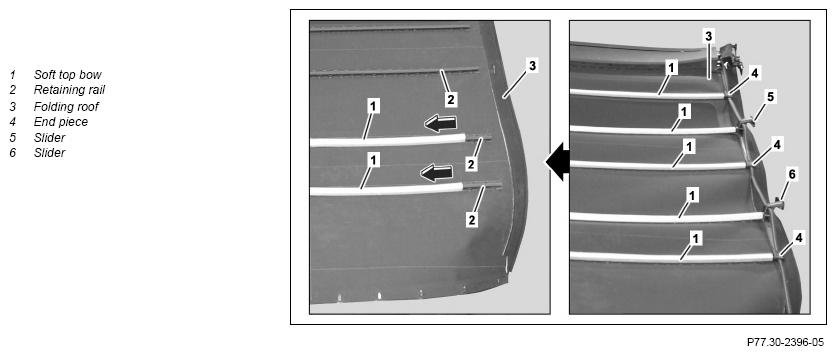

Shown on left side of vehicle on model 451.4
| Notes on soft tops | AH77.30-P-0001-01MCO | ||
| Remove/install | |||
| 1 | Remove sliding rail (5, 6) and end pieces (4). | AR77.33-P-2000MCO | |
| 2 | Detach soft top bow (1) from retaining strips (2) on folding roof (3) | ||
| 3 | Install in the reverse order |
