Remove/Install Rear Soft Top Window Seal - AR77.35-P-1001SRC
MODEL 453.4
| Remove | |||

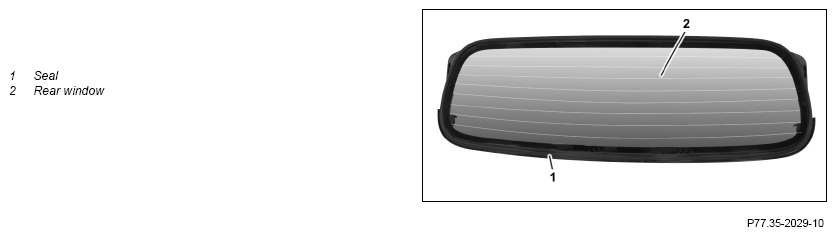

| 1 | Remove rear window (2) | AR77.35-P-1000SRC | |
| 2 | Pull seal (1) out of rear window frame (2) | ||
| Check | |||
| 3 | Check seal (1) for damage and wear | If complaint present ↓ Replace seal (1) |
|
| Clean | |||
| 4 | Clean sealing surfaces on rear window frame (2) and rear soft top | ||
| Install | |||
| 5 | Starting from the middle, press bottom of seal (1) into rear window frame (2) | ||
| 6 | Install rear window (2) | AR77.35-P-1000SRC | |
| Check | |||
| 7 | Check that rear window (2) and rear soft top are tight |
