Remove/Install Rear Soft Top Motor - AR77.39-P-4010SRC
MODEL 453.4

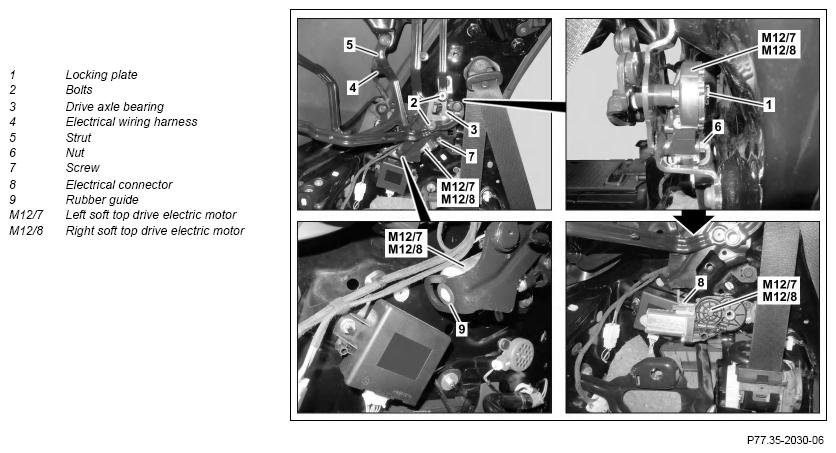

Shown on left side of vehicle
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on soft tops | AH77.30-P-0001-01MCO | ||
| Remove/install | |||
| 1 | Remove paneling on B-pillar | AR68.30-P-4700SRC | |
| 2 | Remove lock washer (1) | ||
| 3 | Unscrew screws/bolts (2) | ||
| 4 | Pull out drive axle with drive axle bearing (3) | ||
| 5 | Detach electrical wiring harness (4) from strut (5) | ||
| 6 | Counterhold nut (6) and remove bolt (7) | ||
| 7 | Move left soft top drive electric motor (M12/7) or right soft top drive electric motor (M12/8) downwards to remove, and disconnect electrical connector (8) | ||
| 8 | Install in the reverse order |
