Remove/Install Rear Soft Top - AR77.30-P-1150SRC

MODEL 453.4

Courtesy of MERCEDES-BENZ USA

	Notes on soft tops		AH77.30-P-0001-01MCO

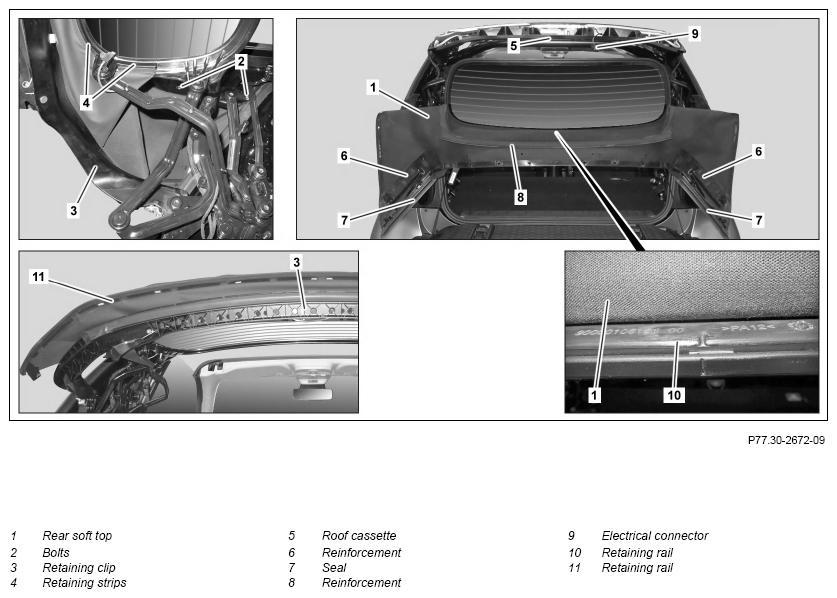

	Remove/install
1	Remove folding roof		AR77.30-P-1100MCO
2	Pull all retaining strips (4) of water pocket out of rear window frame
3	Fold up retainer (3)
4	Remove bolts (2) of reinforcements (6)
5	Detach reinforcements (6) and seals (7) from roof cassette (5) and fold back rear soft top (1)	: Check bonding of seals (7). In the event of complaints ↓ Repair or replace defective bonds Rear window sealing profile	*BR00.45-Z-1084-01A
6	Guide electrical connector (9) through rear soft top (1) and pull reinforcement (8) out of roof cassette (5)
7	Pull retaining strip (11) out of retainer (3) from outside towards inside	Mounting wedge	Fig 1
8	Fold down retainer (3) and turn rear soft top (1) down
9	Pull retaining strip (10) out of rear window frame and detach rear soft top (1)	: Align marking of retaining strip (10) with marking on rear window frame. Mounting wedge	Fig 1
10	Remove dips still in retainer (3) or real window frame	: Fit clips on retaining strips (10 or 11).
11	Remove seals (7) and reinforcements (6)	When replacing rear soft top (1) : Check bonds. In the event of complaints ↓ Repair or replace defective bonds Rear window sealing profile	*BR00.45-Z-1084-01A
12	Install in the reverse order

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIAL

Number	Designation	Order number
BR00.45-Z-1084-01A	Rear window sealing profile	A 004 989 60 20
