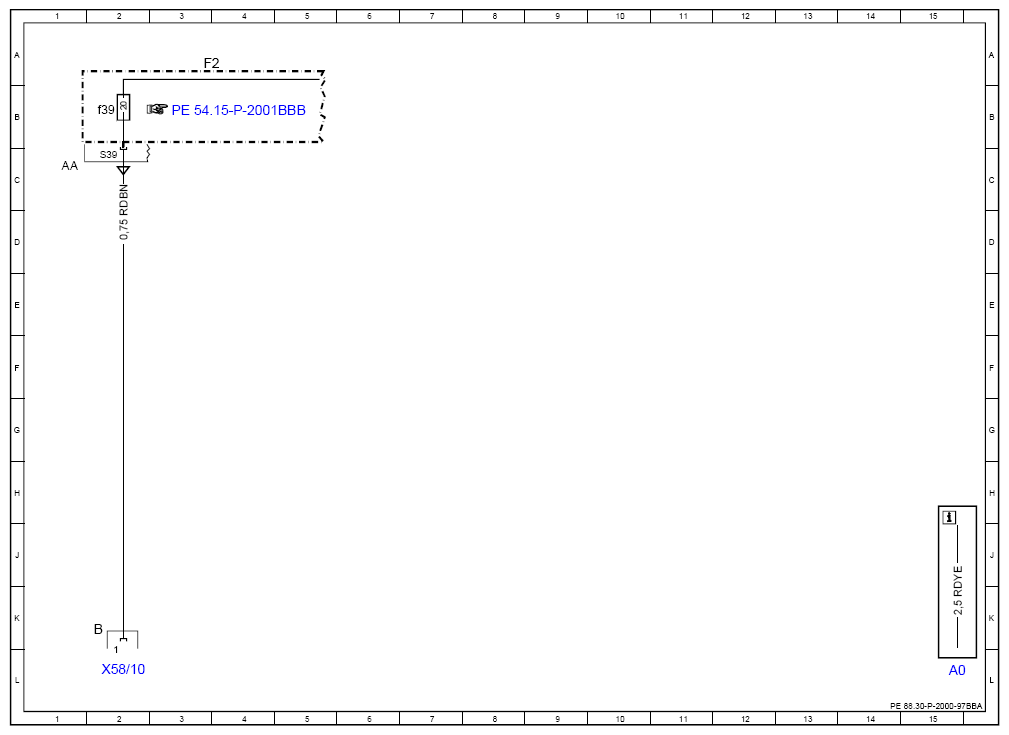

Electric Wiring Diagram For Rear Luggage Carrier - PE88.30-P-2000-97BBA
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) up to model year 2020 with CODE E12 (Preinstallation for rear-end carrier)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| F2 | Vehicle interior fuse and relay module | 3A |
| F2f39 | Fuse 39 | 2B |
| X58/10 | Rear luggage carrier electrical connector | 2L |
