Replace Roll Bar - Ar65.20-P-1056SRC

Model 453.4

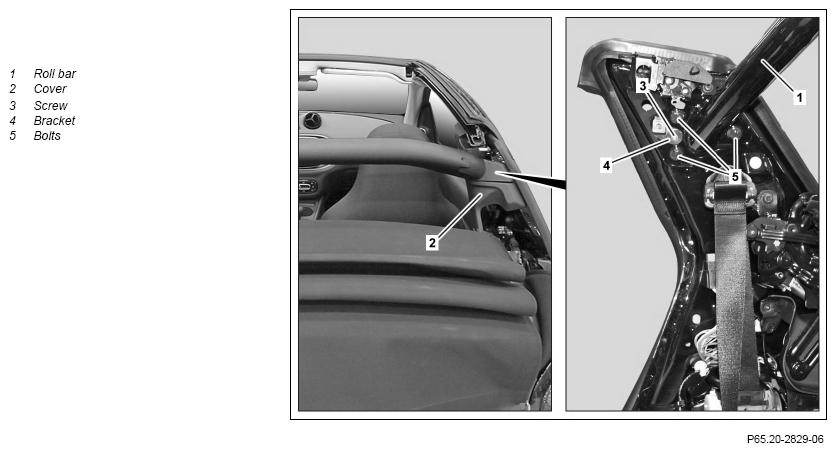

Shown on right side of vehicle

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Remove/install
1	Detach paneling (2) from right an right B-pillar and remove from working area	Do not remove belt end fittings.	AR68.30-P-4700SRC
2	Unscrew bolts (3) and remove bracket (4)
3	Unscrew bolts (5) and remove roll bar (i)	: Repair paint damage on bolt head (5). Helper required.
4	Install in the reverse order
