Install Rear Roof Frame - Ar65.20-P-1008-03SR

Model 453.0/3

1. Install bottom rear roof frame (2), fit and fix in place.
2. Bottom rear roof frame (2) (areas I and J).

   Shown on Model 453.3

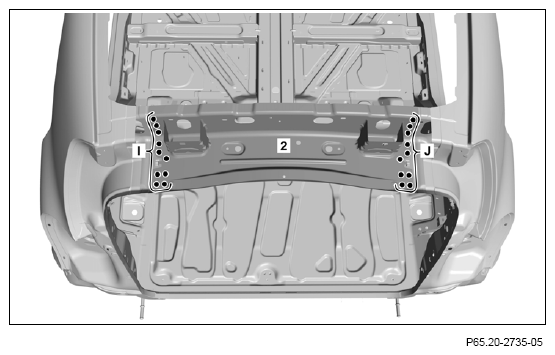

   Fig 1: Locating Areas I & J

   Courtesy of MERCEDES-BENZ USA
3. Install top rear roof frame (1), fit and fix in place.
4. Upper rear roof frame (1) (areas K, L, Q and R).

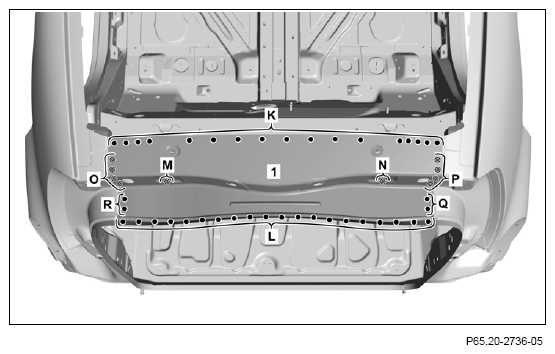

   Fig 2: Locating Areas K, L, M, N, O, P, Q & R

   Courtesy of MERCEDES-BENZ USA
5. Drill top rear roof frame (1) with 07 mm sheet metal thickness (areas M, N, O and P).
6. Top rear roof frame (1) (areas M, N, O and P).

   Shown on Model 453.3
