Actuate Emergency Release Of Fuel Fitter Flap - AR88.60-P-1002SR

MODEL 453

Shown on MODEL 453.0

Courtesy of MERCEDES-BENZ USA

	Run
1	Open liftgate
2	Remove cargo area floor covering
3	Remove engine compartment flap

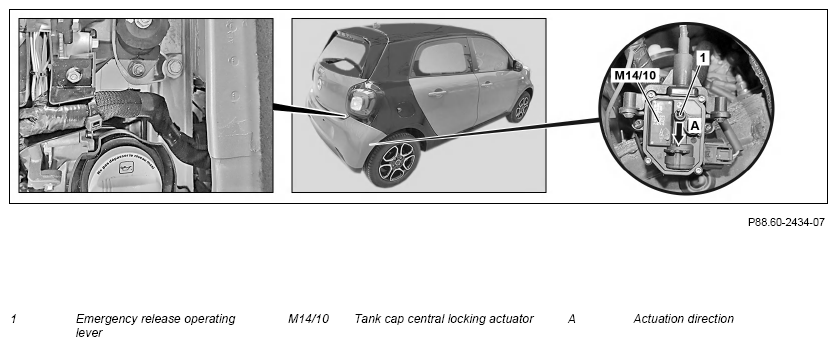

4	Actuate emergency release operating lever (1) on tank cap center locking actuator (M14/10) in direction of arrow (A)	The tank cap center locking actuator (M14/10) can be reached through the engine compartment.
5	Open fuel filler flap
