Retrofit Spoiler On Front Bumper - AZ88.20-P-0010SR

MODEL 453.3/4

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Remove

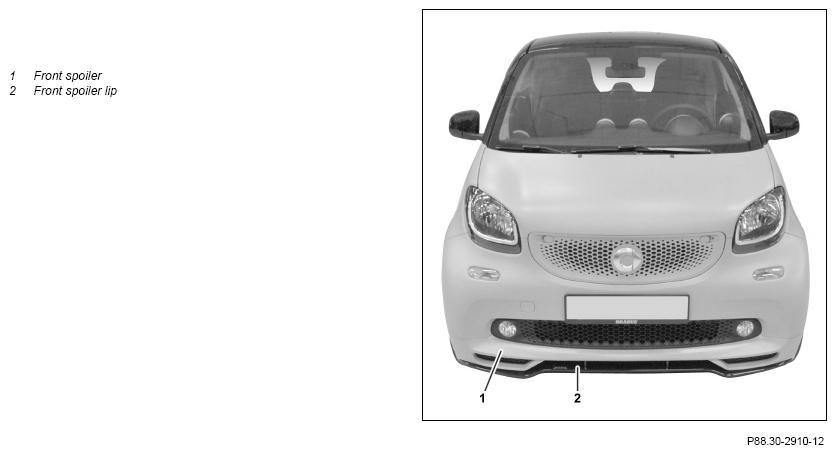

1	Remove front spoiler (1) installed at factory	Factory-installed front spoiler (1) is eliminated part.	AR88.20-P-2050SRA
	Install
2	Paint front spoiler (1) and front spoiler lip (2)	Also paint front spoiler (1) and front spoiler lip (2) in area of bonding surfaces. Proper bonding cannot be ensured on an unpainted surface. Use only paints approved by Daimler AG.
3	Retrofit front spoiler lip (2) on new front spoiler (1)	When pressing on, ensure that the pressure is applied directly on the adhesive strips. The maximum adhesive strength is only reached after approx. 72 h at 20 °C. Avoid any contact with moisture (e.g. rain, fog, frost, carwash) or any mechanical stress within the first 24 h. Otherwise adhesion problems may occur.	AZ88.20-P-0010-02SR
		Cleaner	*BR00.45-Z-1025-04A

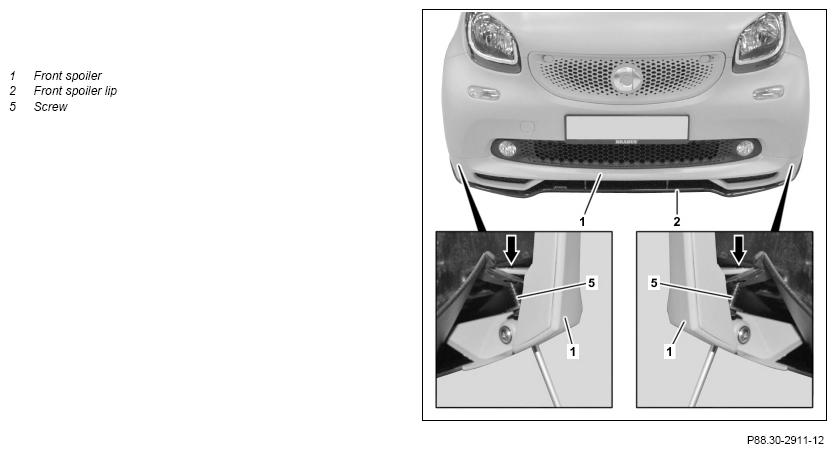

4	Install new front spoiler (1)	Insert bolts (5) so that the shackles of the wheel well paneling and the shackles (arrows) on the front spoiler (1) are bolted.	AR88.20-P-2050SRA
	Update Vehicle Documentation (VeDoc)
5	Attach note "Front spoiler retrofitted according to AZ88.20-P-0010SR " field organization texts for design group 88

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98 (siehe EPC)	Parts kit Front spoiler	1
A 453 989 01 00	Bonding kit	1
