Seam Sealing Following Repair, Rear End Damage - Ar97.10-P-4000-02SR

MODEL 453

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-01A	White sealing compound, 310 ml, DBL 6069.20	A 001 989 63 20
BR00.45-Z-1041-01A	Seam sealant, sprayable 310 ml	A 002 989 84 20

Seal connecting flange of repaired area body sealant material.
Observe standard sealing. Seal only primed body parts. Install plastic stoppers and grommets with sealant.

When sealing seams we differentiate between:
- smoothing/wiping (A)
- sealing/spreading (B)
Seal spot welds and rivets in repaired area with seam sealant material.
Keep sealant out of threads on weld nuts and threaded bolts by masking or covering with cardboard sleeves.

Also keep drain openings and contact surfaces for axle attachments, windows and detachable parts free of sealant. It is necessary to seal accessible spot weld flanges on both sides. If accessible from one side, only seal corresponding surface.

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

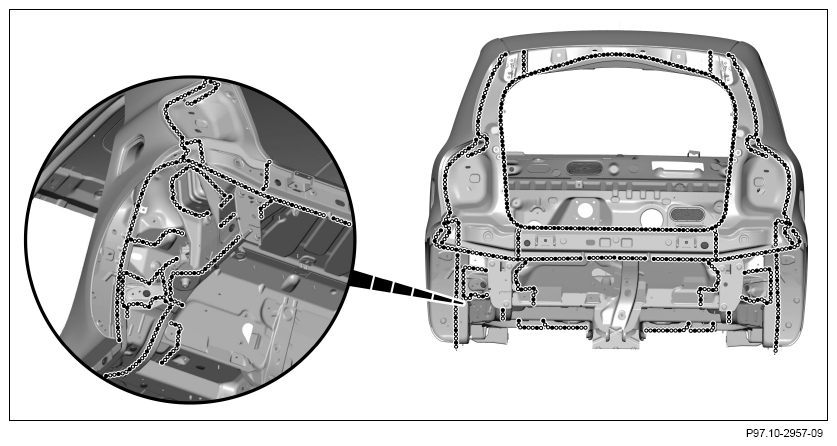

Shown on model 453.3, rear area, rear fender and left rear wheel arch
