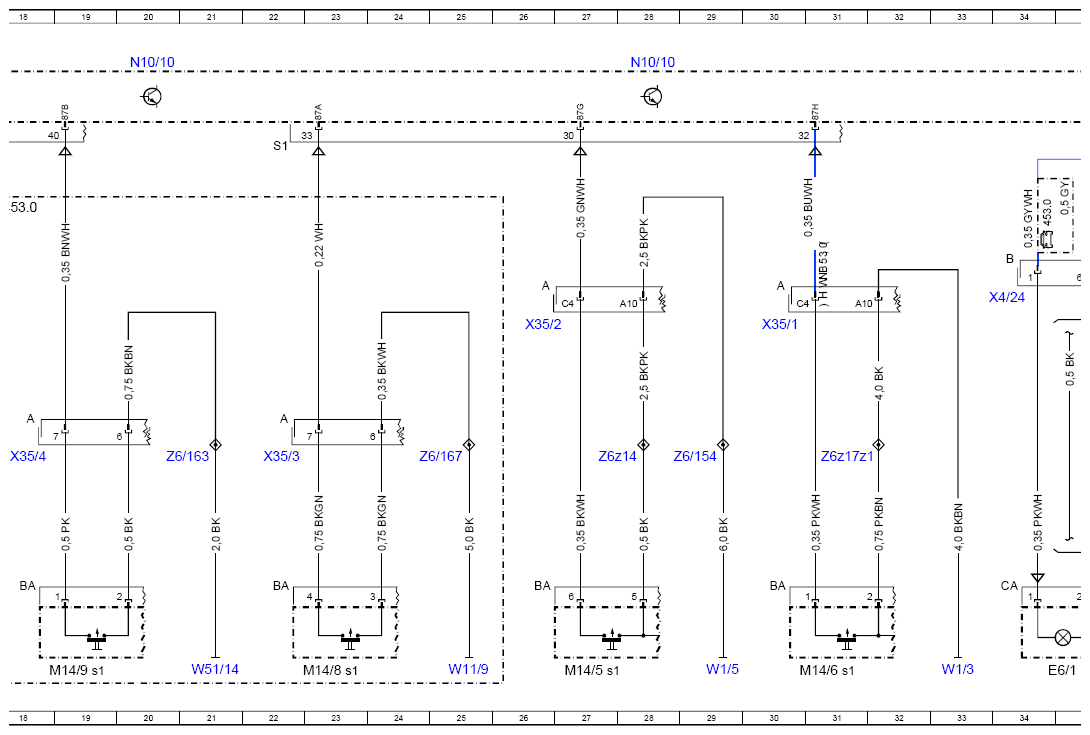

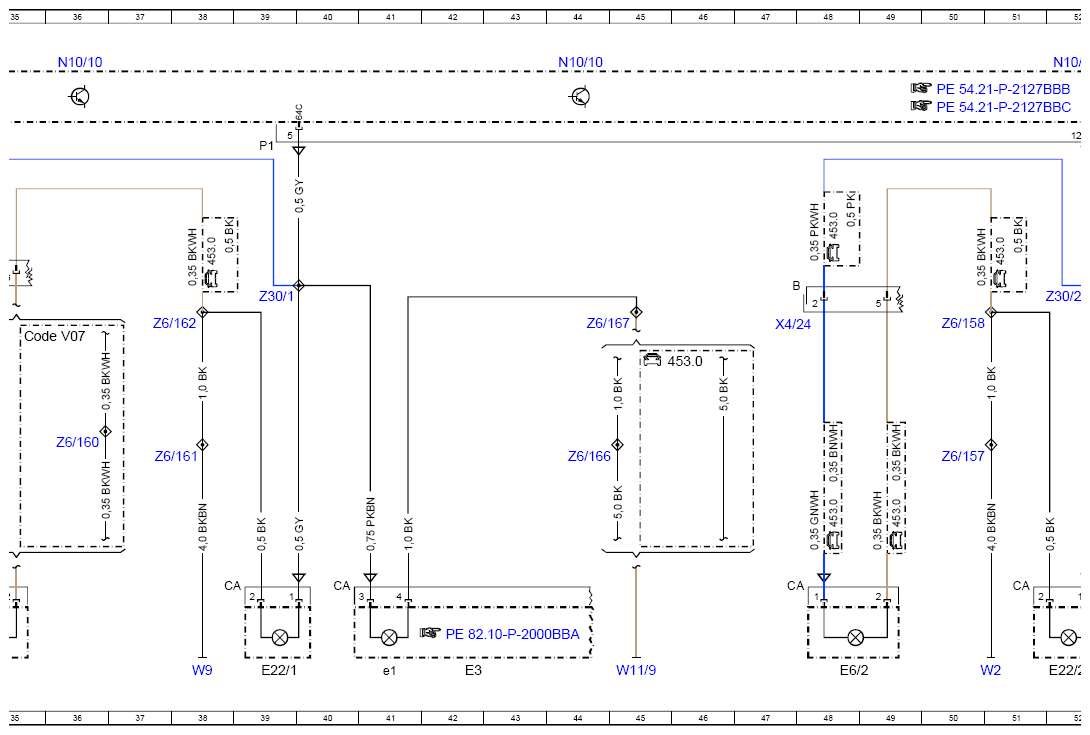

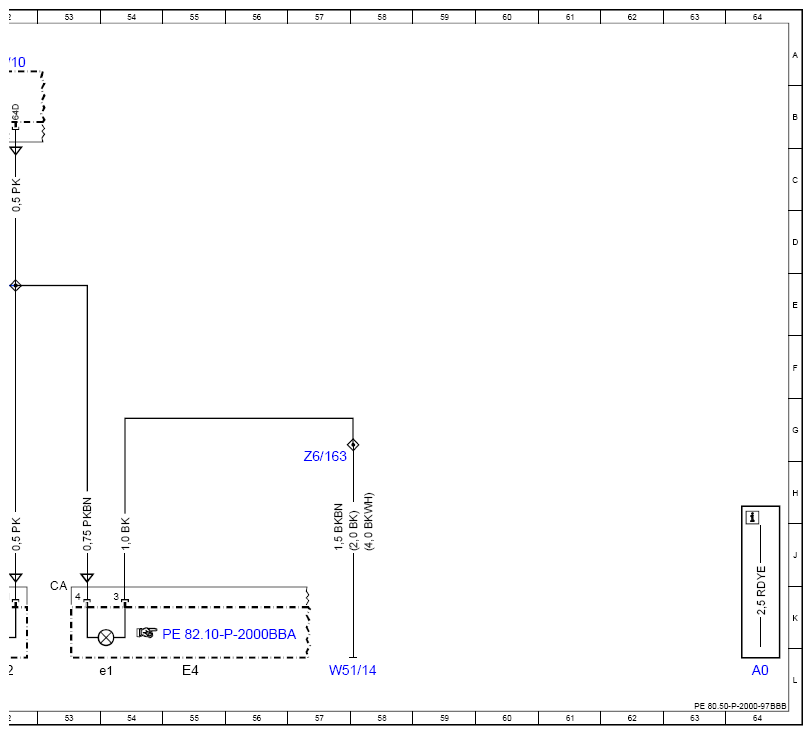

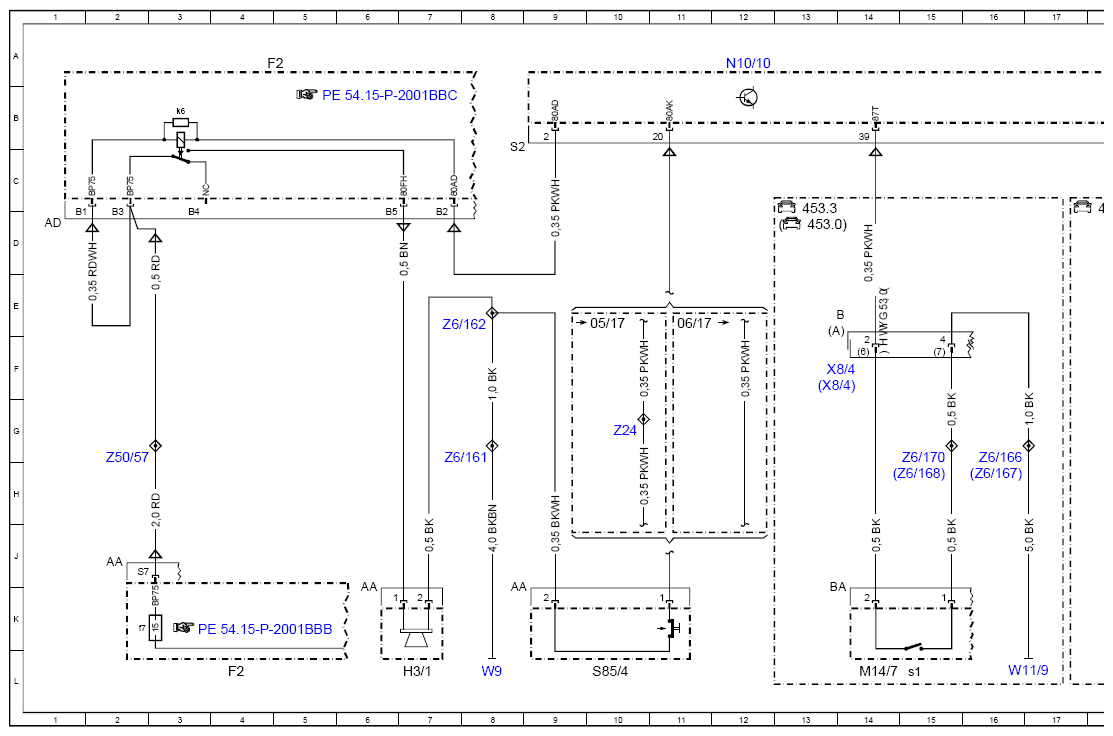

Wiring Diagram Of Anti-Theft Alarm System (ATA) - PE80.50-P-2000-97BBB
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) up to model year 2020 with CODE V19 (Anti-theft alarm system)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 64L |
| Code V07 | Front fog lamp | 35F |
| E22/1 | Left additional turn signal lamp | 39L |
| E22/2 | Right additional turn signal lamp | 52L |
| E3 | Left rear lamp unit | 42L |
| E3e1 | Left rear turn signal lamp | 41L |
| E4 | Right rear lamp unit | 55L |
| E4e1 | Right rear turn signal lamp | 54L |
| E6/1 | Left turn signal lamp | 34L |
| E6/2 | Right turn signal lamp | 48L |
| F2 | Vehicle interior fuse and relay module | 4L |
| F2 | Vehicle interior fuse and relay module | 4A |
| F2f7 | Fuse 7 | 2K |
| F2k6 | Fanfare horn relay | 3B |
| H3/1 | Alarm si ren | 7L |
| M14/5 | Front passenger door central locking system actuator | 27L |
| M14/5s1 | Front passenger door central locking system microswitch | 27L |
| M14/6 | Driver door central locking system actuator | 31L |
| M14/6s1 | Driver door central locking system microswitch | 31L |
| M14/7 | Rear-end door central locking motor | 14L |
| M14/7s1 | Liftgate central locking system microswitch | 15L |
| M14/8 | Left rear central locking actuator | 23L |
| M14/8s1 | Left rear central locking microswitch | 23L |
| M14/9 | Right rear central locking actuator | 19L |
| M14/9s1 | Right rear central locking microswitch | 19L |
| N10/10 | Center SAM control unit | 12A |
| N10/10 | Center SAM control unit | 20A |
| N10/10 | Center SAM control unit | 28A |
| N10/10 | Center SAM control unit | 36A |
| N10/10 | Center SAM control unit | 44A |
| N10/10 | Center SAM control unit | 52A |
| S85/4 | EDW switch, battery | 10L |
| W1/3 | Left cockpit ground point | 33L |
| W1/5 | Right cockpit ground point | 29L |
| W11/9 | Left rear ground point | 16L |
| W11/9 | Left rear ground point | 25L |
| W11/9 | Left rear ground point | 45L |
| W2 | Right front ground point | 51L |
| W51/14 | Right rear frame ground connection | 21L |
| US VI4 | Right rear frame ground connection | 57L |
| W9 | Left front ground point (at lamp unit) | 8L |
| W9 | Left front ground point (at lamp unit) | 38L |
| X35/1 | Left front door electrical connector | 30E |
| X35/2 | Right front door electrical connector | 26E |
| X35/3 | Left rear door electrical connector | 22H |
| X35/4 | Right rear door electrical connector | 18H |
| X4/24 | Vehicle interior/daytime running lights electrical connector | 34E |
| X4/24 | Vehicle interior/daytime running lights electrical connector | 47E |
| X8/4 | Trunk lid electrical connector | 14F |
| X8/4 | Trunk lid electrical connector | 13F |
| Z24 | ATA [EDW] engine hood connector sleeve | 10G |
| Z30/1 | Left turn signal indicator connector sleeve | 39E |
| Z30/2 | Right turn signal indicator connector sleeve | 52E |
| Z50/57 | Circuit 30 (fused) connector sleeve | 2G |
| Z6/154 | Ground connection connector sleeve | 29G |
| Z6/157 | Ground connection connector sleeve | 50G |
| Z6/158 | Ground connection connector sleeve | 50E |
| Z6/160 | Ground connection connector sleeve | 36G |
| Z6/161 | Ground connection connector sleeve | 8G |
| Z6/161 | Ground connection connector sleeve | 38G |
| Z6/162 | Ground connection connector sleeve | 8E |
| Z6/162 | Ground connection connector sleeve | 38E |
| Z6/163 | Ground connection connector sleeve | 21G |
| Z6/163 | Ground connection connector sleeve | 57G |
| Z6/166 | Circuit 31 connector sleeve | 16G |
| Z6/166 | Circuit 31 connector sleeve | 44G |
| Z6/167 | Circuit 31 connector sleeve | 16H |
| Z6/167 | Circuit 31 connector sleeve | 25G |
| Z6/167 | Circuit 31 connector sleeve | 45E |
| Z6/168 | Circuit 31 connector sleeve | 15H |
| Z6/170 | Ground connection connector sleeve | 15G |
| Z6z14 | Ground connection connector sleeve | 28G |
| Z6z17z1 | Ground connection connector sleeve | 31G |
