Wiring Diagram Interior Illumination - PE82.20-P-2000-97BEA
MODEL 453.091/391/491 up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 64L |
| A15 | Additional instruments | 43A |
| Code 877 | Ambiance illumination | 30A |

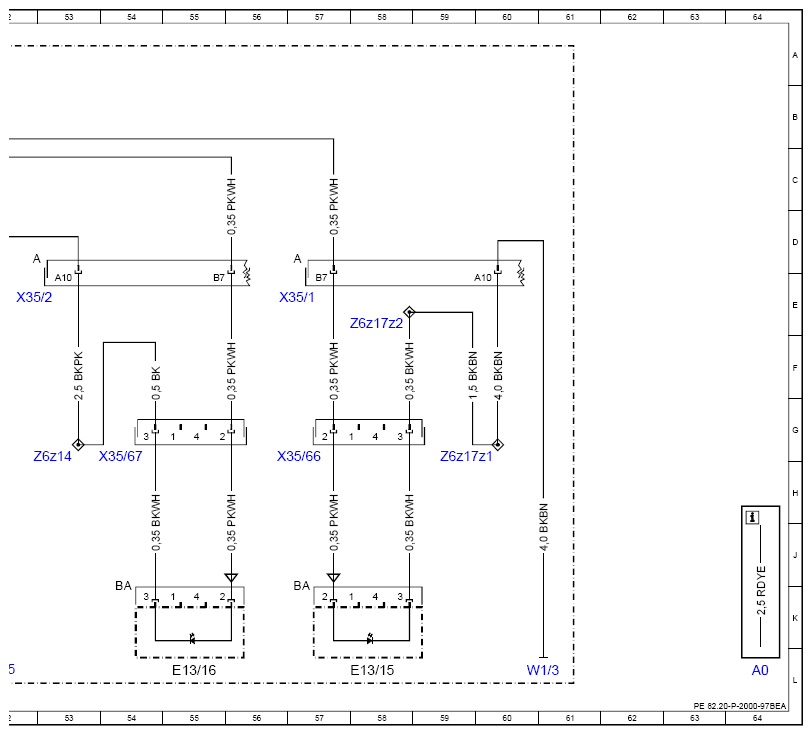

| E13/1 | Glove box lamp | 50L |
| E13/15 | Left front door ambiance illumination | 58L |
| El 3/16 | Right front door ambiance illumination | 55L |
| E15/1 | Front dome lamp with reading lamps | 22L |
| E15/1 | Front dome lamp with reading lamps | 13L |
| E15/1e1 | Left front reading lamp | 13L |
| E15/1e1 | Left front reading lamp | 22L |
| E15/1e2 | Right front reading lamp | 15L |
| E15/1e2 | Right front reading lamp | 24L |
| E15/1e3 | Front interior lamp | 14L |
| E15/1e3 | Front interior lamp | 23L |
| E15/1s1 | Left front reading lamp switch | 13K |
| E15/1s1 | Left front reading lamp switch | 22K |
| E15/1s2 | Right front reading lamp switch | 15K |
| E15/1s2 | Right front reading lamp switch | 24K |
| E15/1s3 | Front interior lamp switch | 14K |
| E15/1s3 | Front interior lamp switch | 23K |
| E15/2 | Front dome lamp | 10L |
| E15/2 | Front dome lamp | 19L |
| E15/2e1 | Front interior lamp | 11L |
| E15/2e1 | Front interior lamp | 20L |
| E15/2s1 | Front dome lamp switch | 10L |
| E15/2s1 | Front dome lamp switch | 19L |

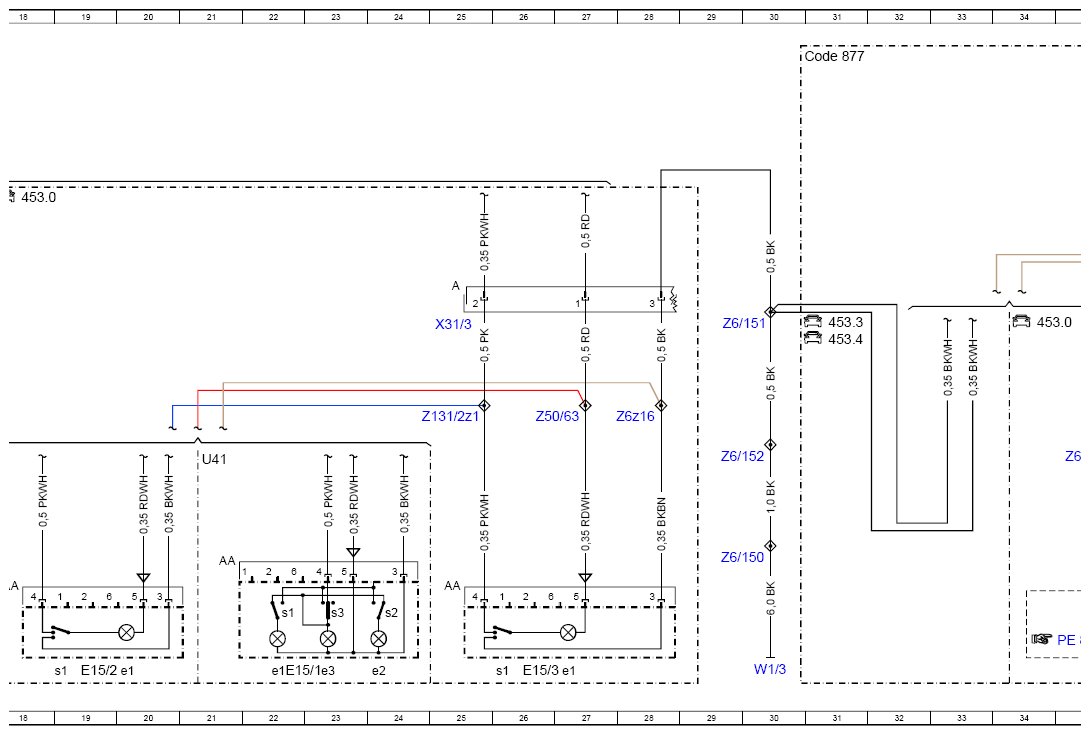

| E15/3 | Rear dome lamp | 26L |
| E15/3e1 | Rear lamp | 27L |
| E15/3s1 | Rear dome lamp switch | 26L |
| E17/15 | Right front footwell lamp | 45L |
| El 7/16 | Left front footwell lamp | 38L |

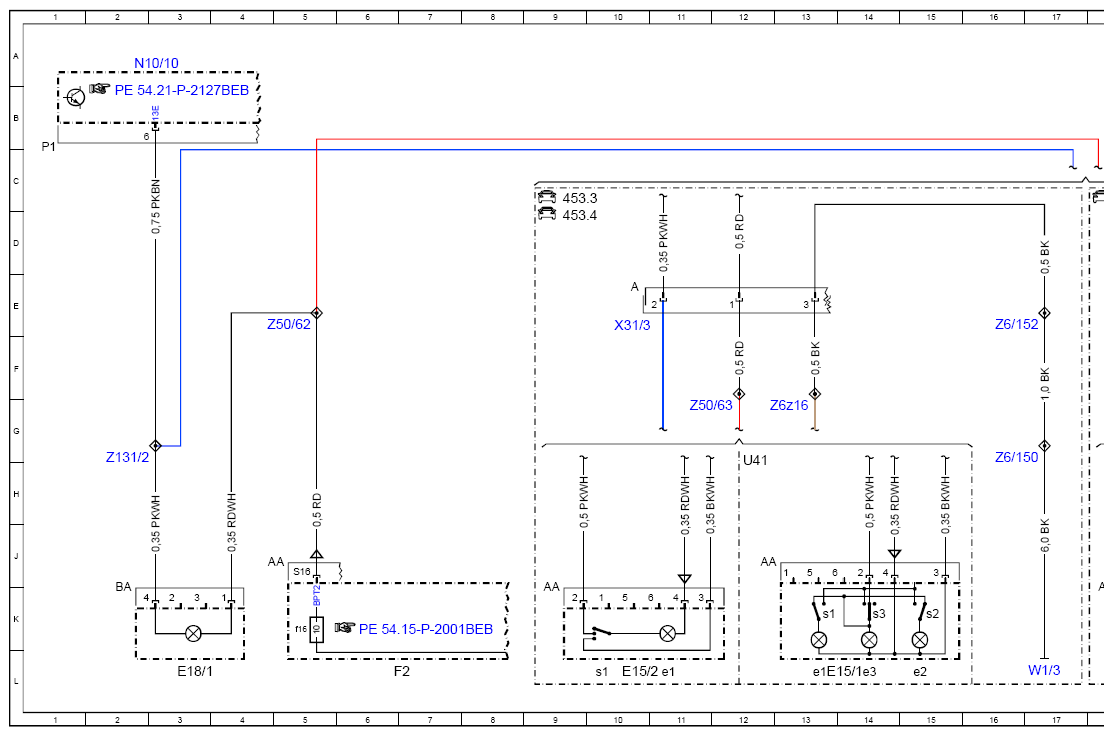

| E18/1 | Load compartment lamp | 3L |

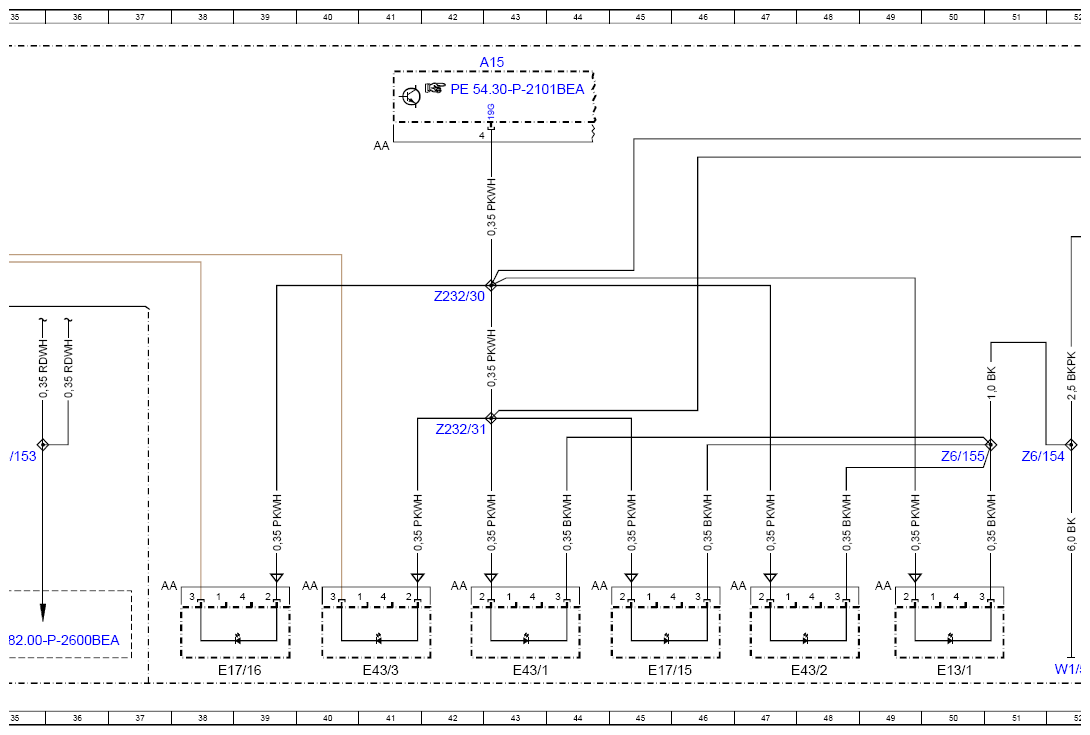

| E43/1 | Left cockpit ambiance illumination | 43L |
| E43/2 | Center cockpit ambiance illumination | 48L |
| E43/3 | Right cockpit ambiance illumination | 41L |
| F2 | Vehicle interior fuse and relay module | 6L |
| F2f16 | Fuse 16 | 5K |
| N10/10 | Center SAM control unit | 2A |
| U41 | Valid for special equipment (Highline: Passion, Prime, Proxy, Brabus Edition #1) | 12H |
| U41 | Valid for special equipment (Highline; Passion, Prime, Proxy, Brabus Edition #1) | 21H |
| W1/3 | Left cockpit ground point | 17L |
| W1/3 | Left cockpit ground point | 30L |
| W1/3 | Left cockpit ground point | 60L |
| W1/5 | Right cockpit ground point | 52L |
| X31/3 | Dome lamp electrical connector | 10E |
| X31/3 | Dome lamp electrical connector | 25E |
| X35/1 | Left front door electrical connector | 57E |
| X35/2 | Right front door electrical connector | 52E |
| X35/66 | Driver door electrical connector | 57H |
| X35/67 | Front passenger door electrical connector | 54H |
| Z131/2 | Time-controlled interior illumination connector sleeve | 2G |
| Z131/2z1 | Time-controlled interior illumination connector sleeve | 25G |
| Z232/30 | Ambiance illumination power supply connector sleeve | 42E |
| Z232/31 | Ambiance illumination power supply connector sleeve | 42G |
| Z50/62 | Circuit 30 (fused) connector sleeve | 5E |
| Z50/63 | Circuit 30 (fused) connector sleeve | 12G |
| Z50/63 | Circuit 30 (fused) connector sleeve | 27G |
| Z6/150 | Ground connection connector sleeve | 16G |
| Z6/150 | Ground connection connector sleeve | 30J |
| Z6/151 | Ground connection connector sleeve | 30E |
| Z6/152 | Ground connection connector sleeve | 30G |
| Z6/152 | Ground connection connector sleeve | 16E |
| Z6/153 | Ground connection connector sleeve | 35G |
| Z6/154 | Ground connection connector sleeve | 51G |
| Z6/155 | Ground connection connector sleeve | 50G |
| Z6z14 | Ground connection connector sleeve | 53G |
| Z6z16 | Ground connection connector sleeve | 13G |
| Z6z16 | Ground connection connector sleeve | 28G |
| Z6z17z1 | Ground connection connector sleeve | 59G |
| Z6z17z2 | Ground connection connector sleeve | 58E |
