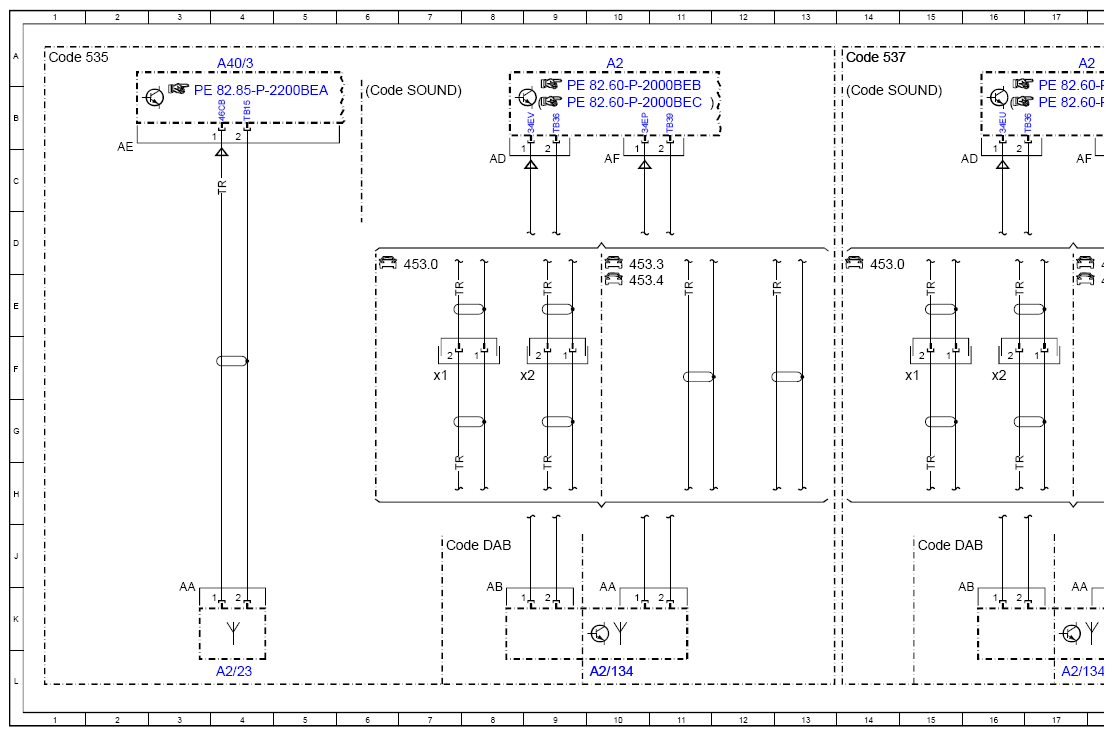

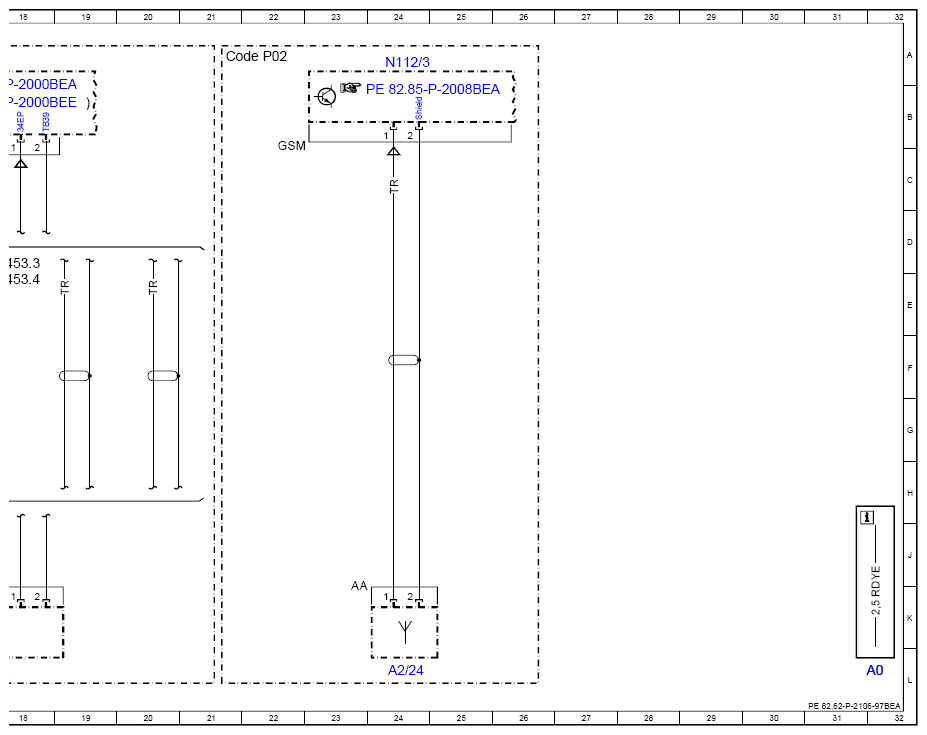

Wiring Diagram For Sound Amplifier Control Unit, Dolby Surround Amplifier - PE82.62-P-2106-97BEA
MODEL 453.091/391/491 up to model year 2020
| Code: | Des i gnat ion: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A2 | Radio | 10A |
| A2 | Radio | 17A |
| A2/134 | FM, AM and DAB antenna | 10L |
| A2/134 | FM, AM and DAB antenna | 17L |
| A2/134x1 | DAB antenna electrical connector | 7F |
| A2/134x1 | DAB antenna electrical connector | 15F |
| A2/134x2 | FM, AM antenna electrical connector | 9F |
| A2/134x2 | FM, AM antenna electrical connector | 16F |
| A2/23 | GPS antenna | 4L |
| A2/24 | GSM/UMTS antenna | 24L |
| A40/3 | smart radio multimedia navigator | 4A |
| Code 535 | Smart Media System | 1A |
| Code 537 | Smart Audio System | 14A |
| Code DAB | Digital radio (DAB) | 15J |
| Code DAB | Digital radio (DAB) | 7J |
| Code P02 | car2go | 21A |
| Code SOUND | JBL sound system | 6B |
| Code SOUND | JBL sound system | 14B |
| N112/3 | Windshield reading system control unit | 24A |
