Wiring Diagram For Sound Amplifier Control Unit, Dolby Surround Amplifier - PE82.62-P-2106-97BBA
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A2 | Radio | 12A |
| A2 | Radio | 18A |
| A2/134 | FM, AM and DAB antenna | 11L |
| A2/134x1 | DAB antenna electrical connector | 8E |
| A2/134x2 | FM, AM antenna electrical connector | 10E |
| A2/23 | GPS antenna | 3L |
| A2/24 | GSM/UMTS antenna | 21L |

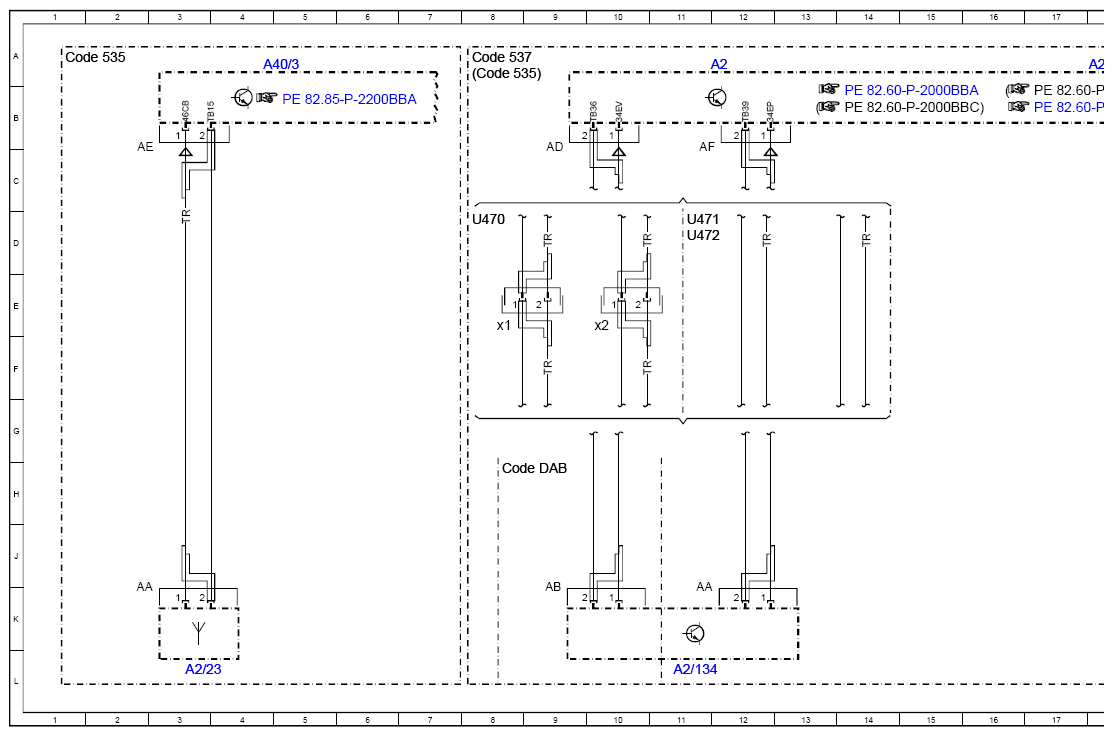

| A40/3 | smart radio multimedia navigator | 4A |
| Code 535 | Smart Media System | 1A |
| Code 535 | Smart Media System | 8A |
| Code 537 | Smart Audio System | 8A |
| Code DAB | Digital radio (DAB) | 8H |

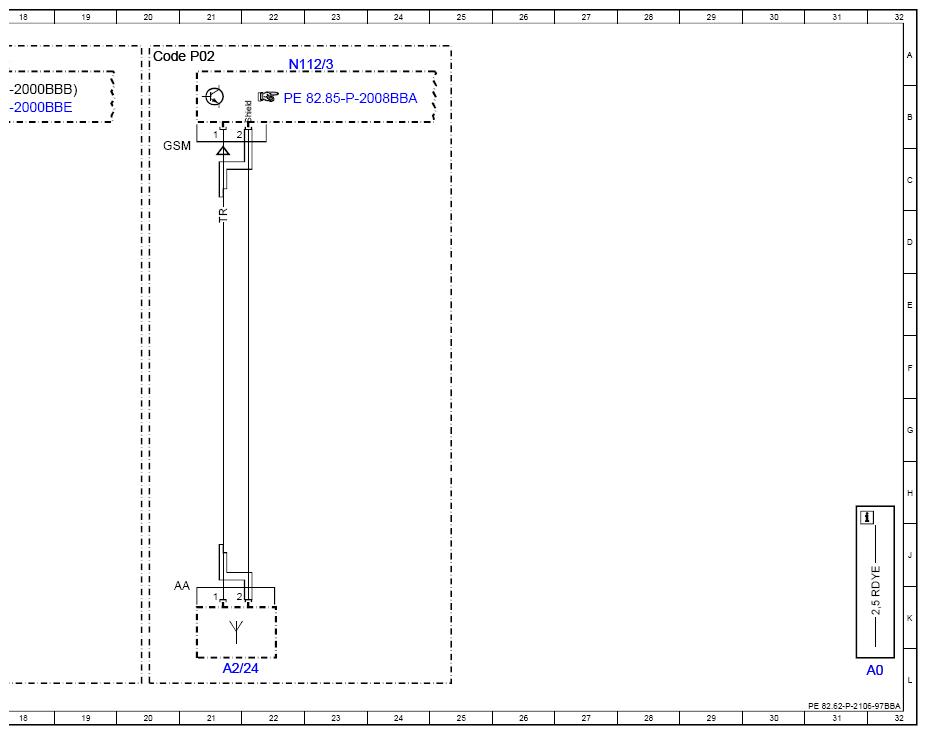

| Code P02 | car2go | 20A |
| N112/3 | Windshield reading system control unit | 22A |
| U470 | Valid for model 453.0 | 8D |
| U471 | Valid for model 453.3 | 11D |
| U472 | Valid for model 453.4 | 11D |
