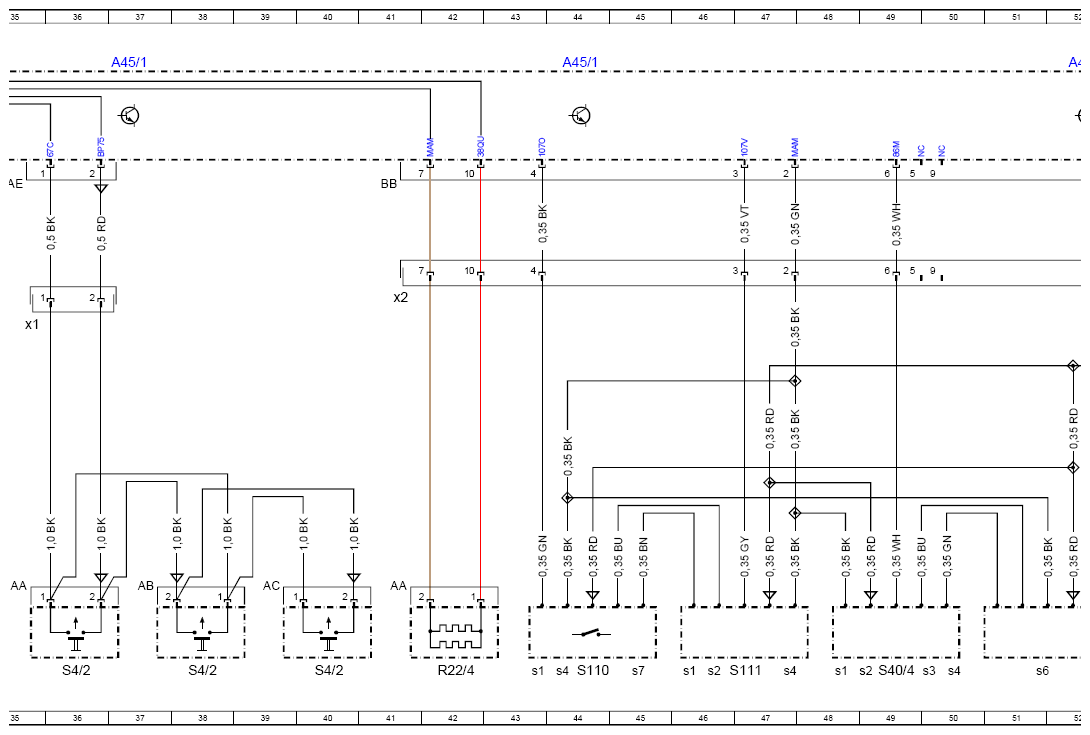

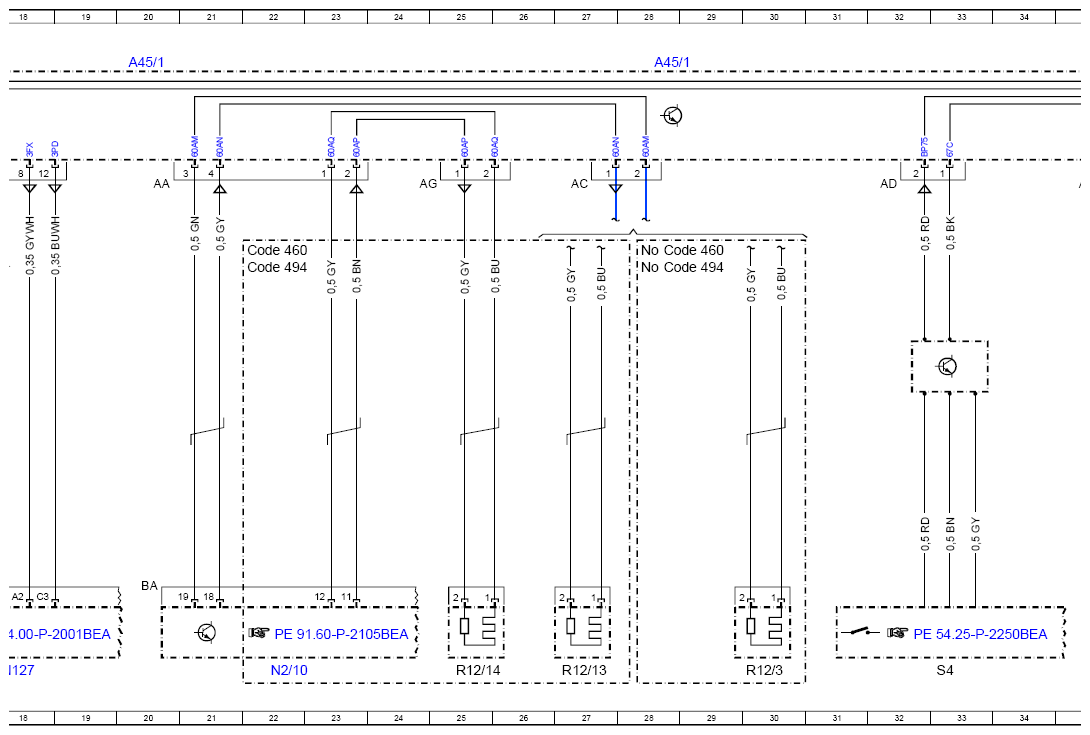

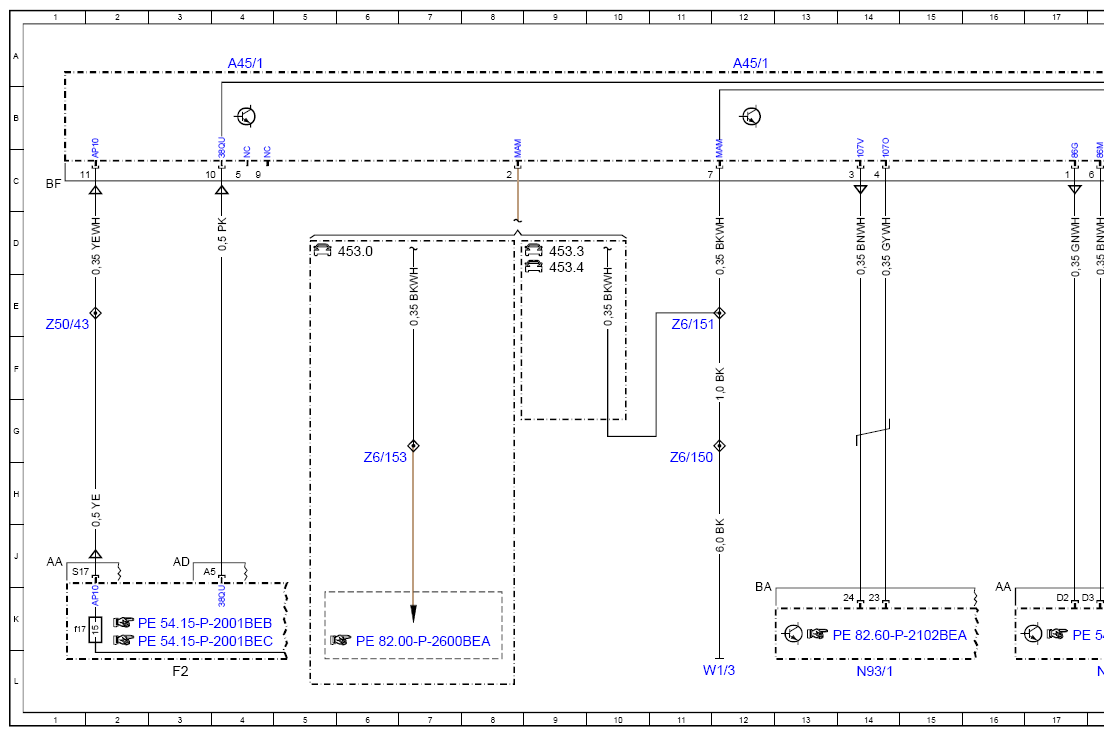

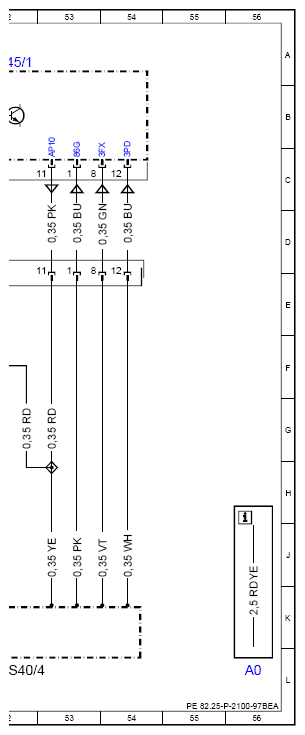

Wiring Diagram Airbag/Fanfare Horns Clock Spring Contact - PE82.25-P-2100-97BEA
MODEL 453.091/391/491 up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 56L |
| A45/1 | Steering wheel clock spring contact | 28A |
| A45/1 | Steering wheel clock spring contact | 4A |
| A45/1 | Steering wheel clock spring contact | 12A |
| A45/1 | Steering wheel clock spring contact | 20A |
| A45/1 | Steering wheel clock spring contact | 37A |
| A45/1 | Steering wheel clock spring contact | 44A |
| A45/1 | Steering wheel clock spring contact | 52A |
| A45/1x1 | Steering wheel clock spring contact electrical connector 1 | 35E |
| A45/1x2 | Steering wheel clock spring contact electrical connector 2 | 41E |
| Code 460 | Canada version | 28D |
| Code 460 | Canada version | 22D |
| Code 494 | USA version | 28D |
| Code 494 | USA version | 22D |
| F2 | Vehicle interior fuse and relay module | 3L |
| F2f 17 | Fuse 17 | 1K |
| N127 | Electric drive control unit | 18L |
| N2/10 | Supplemental restraint system control unit | 22L |
| N93/1 | Audio gateway control unit | 14L |
| R12/13 | Driver airbag squib 1 | 27L |
| R12/14 | Driver airbag squib 2 | 25L |
| R12/3 | Driver airbag squib | 30L |
| R22/4 | Steering wheel heater | 42L |
| S110 | Left multifunction steering wheel button group | 44L |
| S110s1 | ScrolI forward button | 43L |
| S110s4 | ScrolI back button | 44L |
| S110s7 | OK button | 45L |
| S111 | Right multifunction steering wheel button group | 47L |
| S111s1 | Volume (+) button | 46L |
| S111s2 | Volume (-) button | 46L |
| S111s4 | Voice control system ON button | 47L |
| S4 | Combination switch | 33L |
| S4/2 | Horn button | 36L |
| S4/2 | Horn button | 40L |
| S4/2 | Horn button | 38L |
| S40/4 | Cruise control/variable speed limiter switch group | 49L |
| S40/4 | Cruise control/variable speed limiter switch group | 52L |
| S40/4s1 | Resume from memory switch | 48L |
| S40/4s2 | Decelerate and set switch | 49L |
| S40/4s3 | Accelerate and set switch | 50L |
| S40/4s4 | OFF switch | 50L |
| S40/4s6 | Cruise control/variable speed limiter switch | 51L |
| W1/3 | Left cockpit ground point | 12L |
| Z50/43 | Circuit 15 (fused) connector sleeve | 1E |
| Z6/150 | Ground connection connector sleeve | 11G |
| Z6/151 | Ground connection connector sleeve | 11E |
| Z6/153 | Ground connection connector sleeve | 6G |
