Wiring Diagram Airbag/Fanfare Horns Clock Spring Contact - PE82.25-P-2100-97BBA
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|

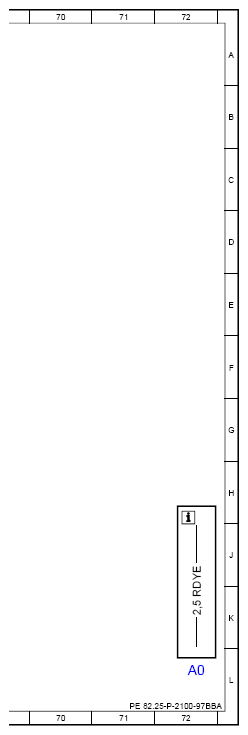

| A0 | Use of wiring diagrams | 72L |
| A45/1 | Steering wheel clock spring contact | 4A |
| A45/1 | Steering wheel clock spring contact | 12A |
| A45/1 | Steering wheel clock spring contact | 20A |
| A45/1 | Steering wheel clock spring contact | 28A |
| A45/1 | Steering wheel clock spring contact | 36A |
| A45/1 | Steering wheel clock spring contact | 44A |
| A45/1 | Steering wheel clock spring contact | 52A |
| A45/1 | Steering wheel clock spring contact | 60A |
| A45/1x1 | Steering wheel clock spring contact electrical connector 1 | 16E |
| A45/1x2 | Steering wheel clock spring contact electrical connector 2 | 46D |
| Code 429 | twinamic | 32A |
| Code 429 | twinamic | 60G |
| Code 460 | Canada version | 36D |
| Code 460 | Canada version | 2D |
| Code 460 | Canada version | 9D |
| Code 460 | Canada version | 34D |
| Code 460 | Canada version | 59A |
| Code 460 | Canada version | 38A |
| Code 460 | Canada version | 62A |
| Code 494 | USA version | 36D |
| Code 494 | USA version | 2D |
| Code 494 | USA version | 9D |
| Code 494 | USA version | 34D |
| Code 494 | USA version | 59A |
| Code 494 | USA version | 62A |
| Code 494 | USA version | 38A |

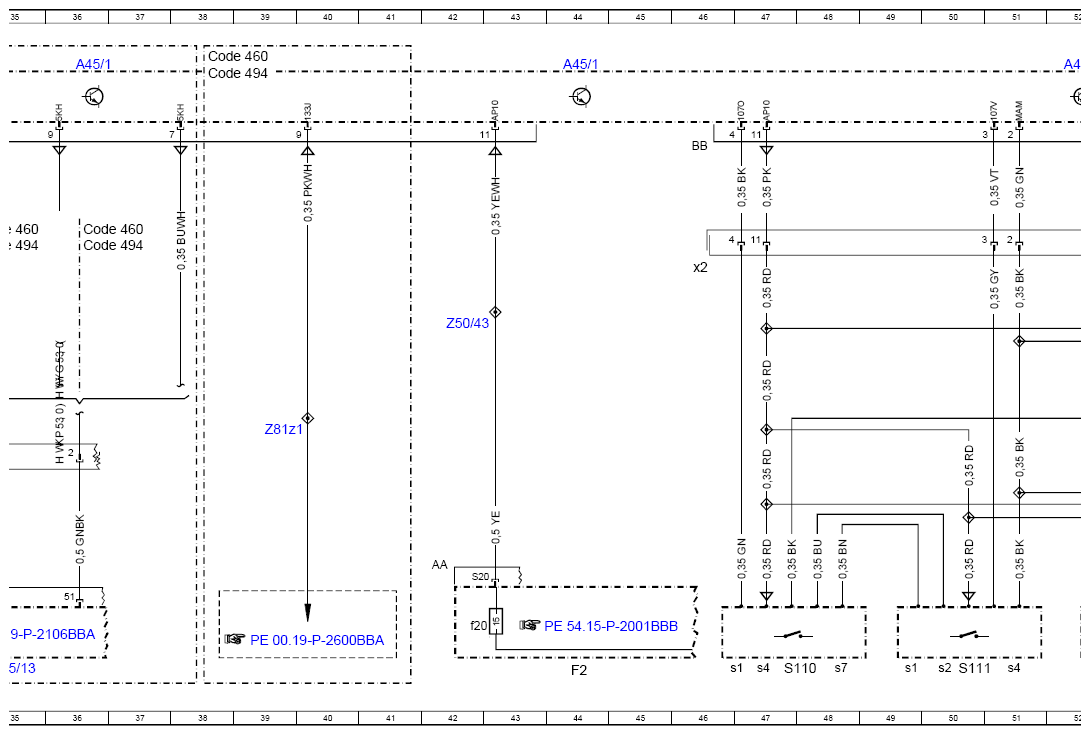

| F2 | Vehicle interior fuse and relay module | 44L |
| F2f20 | Fuse 20 | 42K |
| N15/13 | Double clutch transmission control unit | 35L |

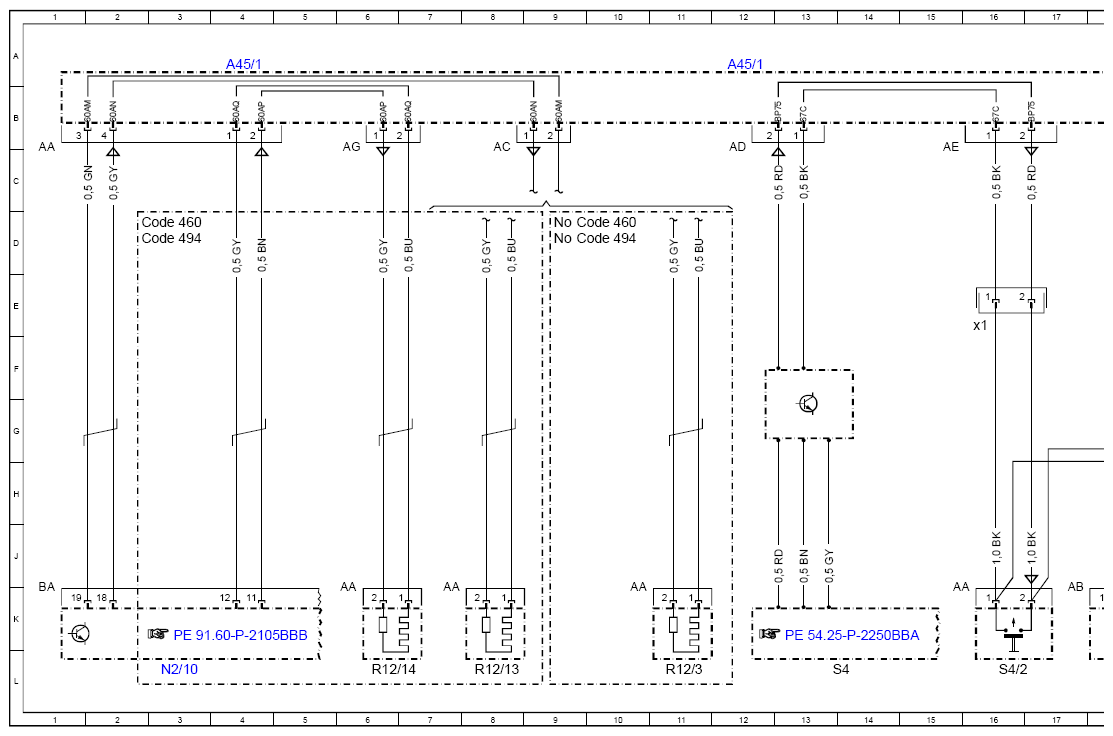

| N2/10 | Supplemental restraint system control unit | 3L |

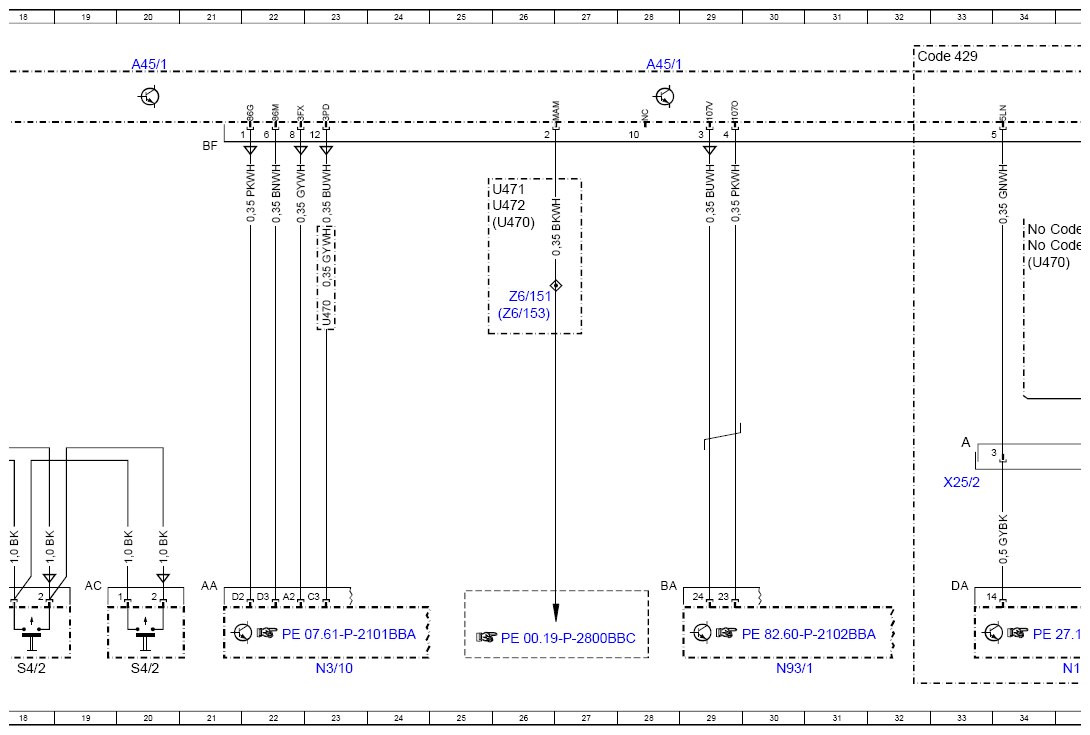

| N3/10 | ME-SFI [ME] control unit | 23L |
| N93/1 | Audio gateway control unit | 30L |
| R12/13 | Driver airbag squib 1 | 8L |
| R12/14 | Driver airbag squib 2 | 6L |
| R12/3 | Driver airbag squib | 11L |
| S110 | Left multifunction steering wheel button group | 47L |
| S110/1 | Steering wheel downshift button | 66L |
| S110s1 | ScrolI forward button | 46L |
| S110s4 | ScrolI back button | 47L |
| S110s7 | OK button | 48L |
| S111 | Right multifunction steering wheel button group | 50L |
| S111/1 | Steering wheel upshift button | 64L |
| S111s1 | Volume (+) button | 49L |
| S111s2 | Volume (-) button | 50L |
| S111s4 | Voice control system ON button | 51L |
| S4 | Combination switch | 14L |
| S4/2 | Horn button | 18L |
| S4/2 | Horn button | 16L |
| S4/2 | Horn button | 20L |

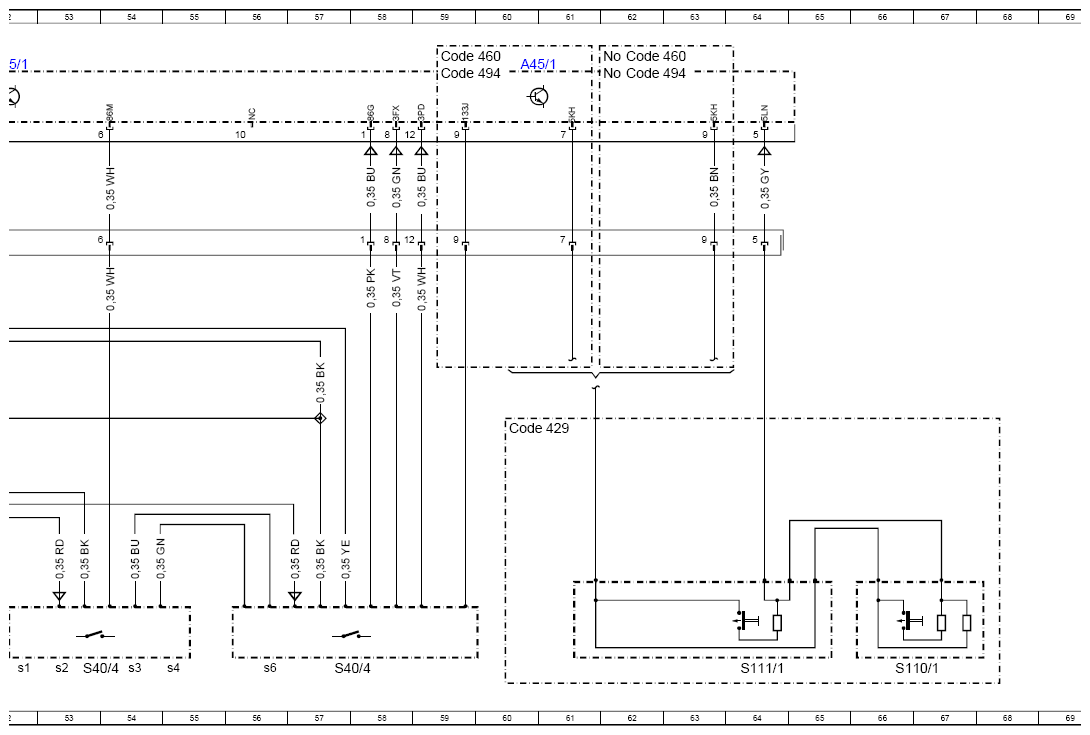

| S40/4 | Cruise control/variable speed limiter switch group | 53L |
| S40/4 | Cruise control/variable speed limiter switch group | 57L |
| S40/4s1 | Resume from memory switch | 52L |
| S40/4s2 | Decelerate and set switch | 53L |
| S40/4s3 | Accelerate and set switch | 54L |
| S40/4s4 | OFF switch | 55L |
| S40/4s6 | Cruise control/variable speed limiter switch | 56L |
| U470 | Valid for model 453.0 | 23E |
| U470 | Valid for model 453.0 | 34D |
| U470 | Valid for model 453.0 | 25D |
| U471 | Valid for model 453.3 | 25C |
| U472 | Valid for model 453.4 | 25C |
| X25/2 | Engine compartment/vehicle interior electrical connector | 33H |
| Z50/43 | Circuit 15 (fused) connector sleeve | 42E |
| Z6/151 | Ground connection connector sleeve | 26E |
| Z6/153 | Ground connection connector sleeve | 26E |
| Z81z1 | Circuit 58d connector sleeve | 39G |
