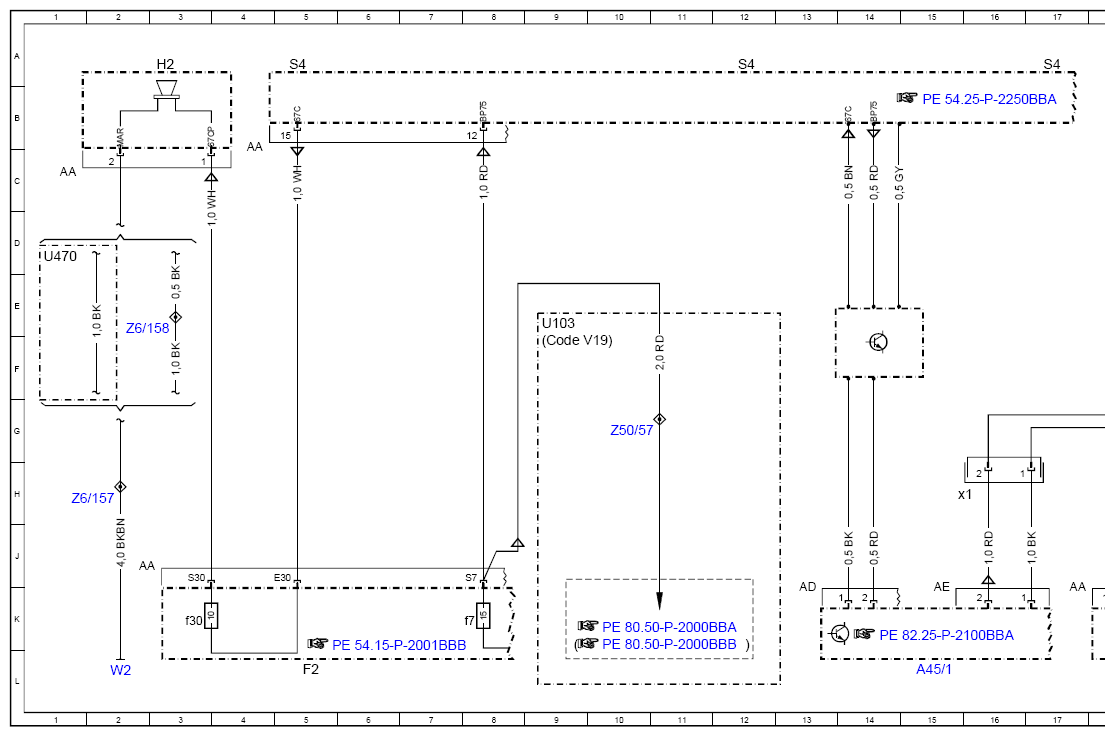

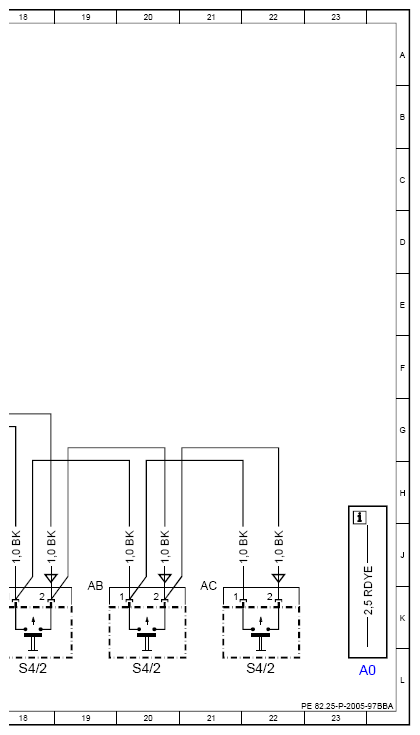

Signaling Horn Wiring Diagram - PE82.25-P-2005-97BBA
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| A45/1 | Steering wheel clock spring contact | 15L |
| A45/1x1 | Steering wheel clock spring contact electrical connector 1 | 16H |
| Code V19 | Anti-theft alarm system | 9F |
| F2 | Vehicle interior fuse and relay module | 5L |
| F2f30 | Fuse 30 | 3K |
| F2f7 | Fuse 7 | 8K |
| H2 | Fanfare horns | 3A |
| S4 | Combination switch | 5A |
| S4 | Combination switch | 12A |
| S4 | Combination switch | 17A |
| S4/2 | Horn button | 20L |
| S4/2 | Horn button | 18L |
| S4/2 | Horn button | 22L |
| U103 | Valid without code V19 | 9E |
| U470 | Valid for model 453.0 | 1D |
| W2 | Right front ground point | 2L |
| Z50/57 | Circuit 30 (fused) connector sleeve | 10G |
| Z6/157 | Ground connection connector sleeve | 2H |
| Z6/158 | Ground connection connector sleeve | 2E |
