Remove/Install Front Dome Lamp - AR82.20-P-0110SR

MODEL 453

Courtesy of MERCEDES-BENZ USA

	Remove/install

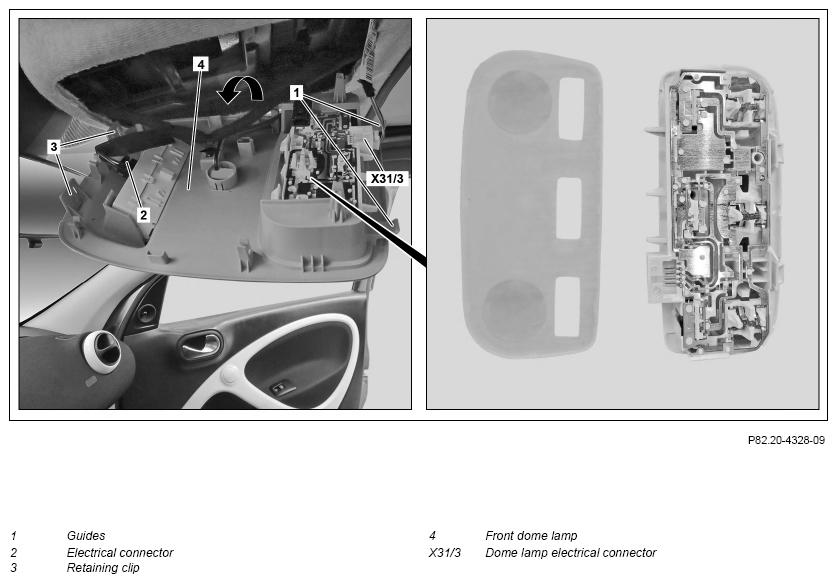

1	Unclip retaining clips (3) and remove front dome lamp (4) from guides (1)	Clip remover	Fig 1
2	Swivel out front dome lamp (4) in direction of arrow until the dome lamp electrical connector (X31/3) and electrical connector (2) is accessible
3	Disconnect dome lamp electrical connector (X31/3) and electrical connector (2)
4	Remove front dome lamp (4)
5	Install in the reverse order

Fig 1: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
