Remove/Install Footrest On Passenger Side - AR68.30-P-1340SR
MODEL 453

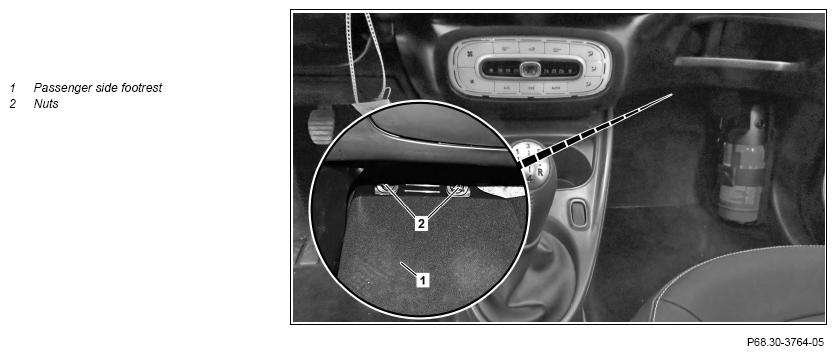

Shown on MODEL 453.0 with CODE 224 Fire extinguisher
 Courtesy of MERCEDES-BENZ USA
|
  |
Remove/install |
|
|
| 1 |
Move passenger seat toward rear |
|
|
| 2 |
Unscrew nuts (2) |
|
|
| 3 |
Remove footrest on passenger side (1) |
|
|
| 4 |
Install in the reverse order |
|
|
