Retrofit Rear Spoiler - AZ88.00-P-0008SR

MODEL 453.3

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Install

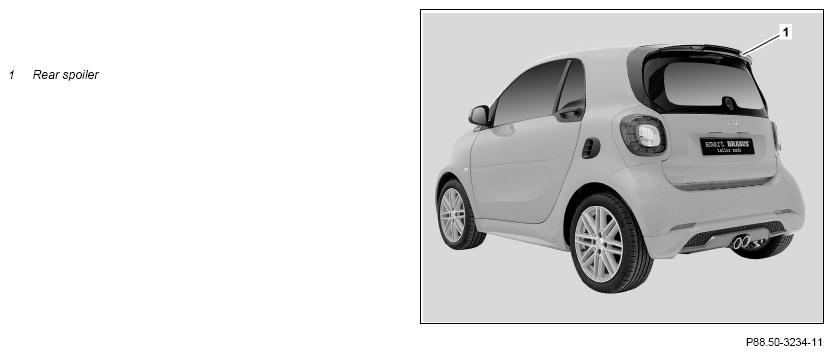

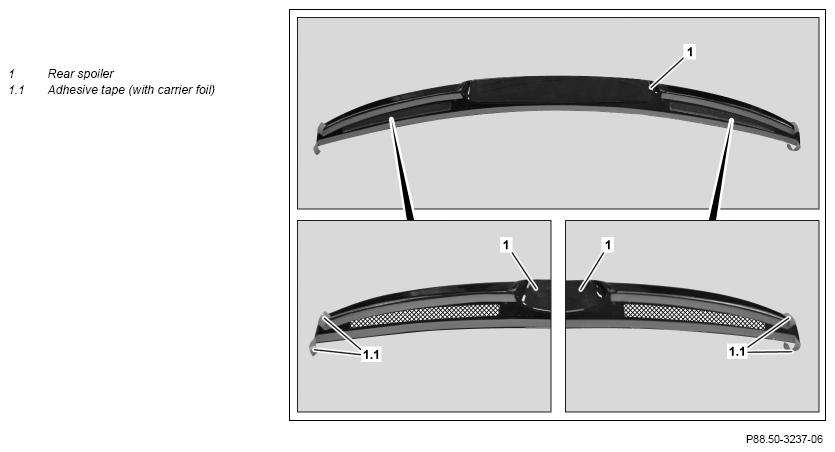

1	Paint outside of rear spoiler (1) and inside of rear spoiler (1) in assembly area of adhesive tapes (1.1)	Do not paint cross-hatched area on inside of rear spoiler (1). Otherwise proper bonding is not ensured. Use only paints approved by Daimler AG.
2	Retrofit rear spoiler (1)		AZ88.00-P-0008-01SR
		When pressing on, ensure that the pressure is applied directly on the adhesive strips. The maximum adhesive strength is only reached after approx. 72 h at 20 °C. Avoid any contact with moisture (e.g. rain, fog, frost, carwash) or any mechanical stress within the first 24 h. Otherwise adhesion problems may occur.
		Cleaner	*BR00.45-Z-1025-04A
		Adhesive parts kit (with isopropanol cleaner)	*BR00.45-Z-1141-02A
	Update Vehicle Documentation (VeDoc)
3	Attach note for rear spoiler retrofitted according to AZ88.00-P-0008SR under field organization text to KG 88

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
BR00.45-Z-1141-02A	Adhesive parts kit (with isopropanol cleaner)	A 451 989 00 71

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98	Rear spoiler parts kit	1
A 453 989 01 00	Bonding kit	1
