Remove/Install Ignition/Starter Switch Lock Cylinder - AR54.25-P-1030SR
MODEL 453
| Remove/install | |||
| Remove steering column tube module | AR54.25-P-2802SR | ||

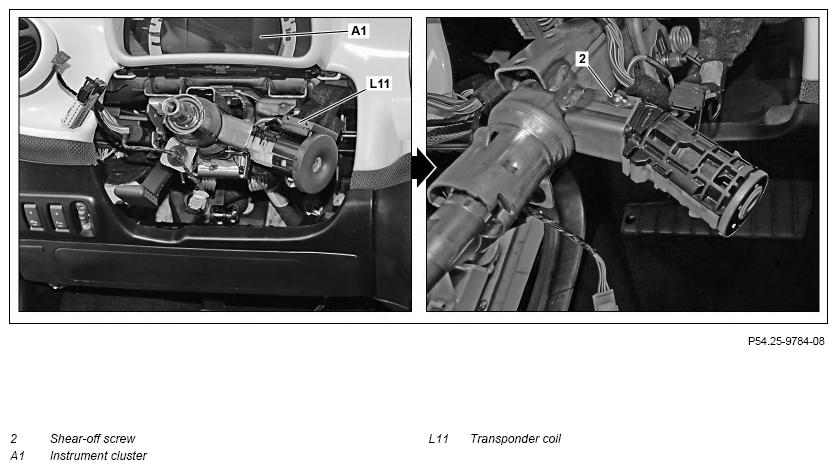

| 2 | Remove instrument cluster (A1) | AR54.30-P-6015SR | |
| 3 | Remove transponder coil (L11) | AR80.35-P-4515SR | |
| 4 | Drill out stump of shear-off screw (2) on steering lock | ||

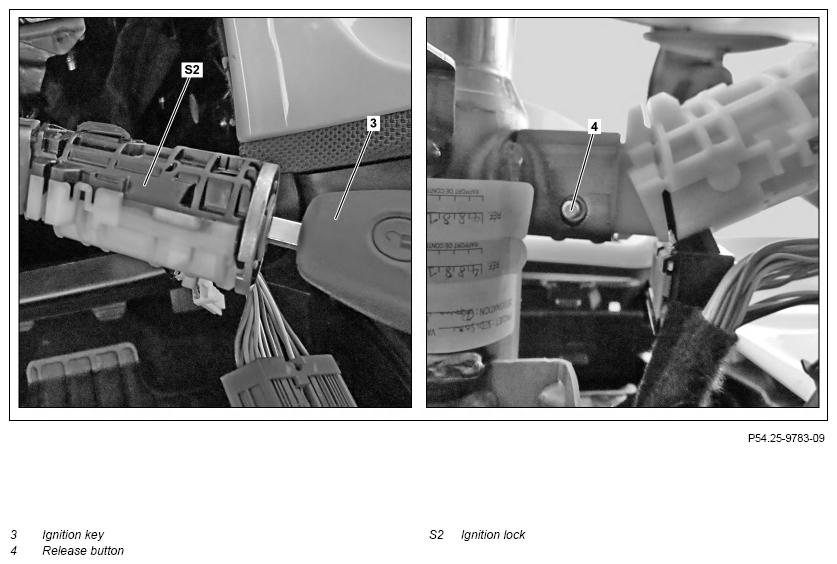

| 5 | Turn ignition key (3) to position 1 | ||
| 6 | Press in release button (4), remove ignition lock (S2) with integrated lock cylinder | ||
| 7 | Install in the reverse order |
