Remove/Install Front Door Inner Actuation - AR72.10-P-1400SR
MODEL 453
| Remove/install | |||

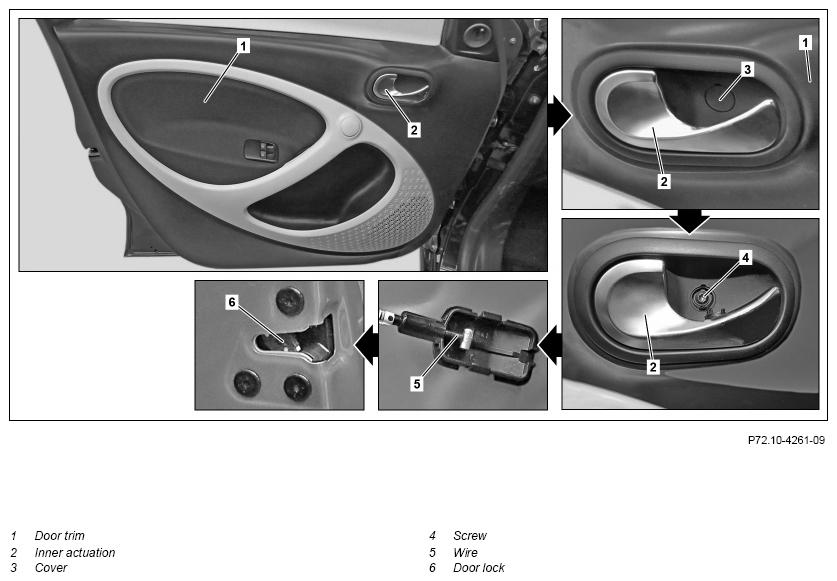

| 1 | Detach cover (3) on side door handle (2) | ||
| 2 | Unscrew bolt (4) on inside door handle (2) | ||
| 3 | Unclip inside door handle (2) from door panel (1) using wedge | Fig 1 | |
| 4 | Unclip wire (5) from inside door handle (2) | ||
| 5 | Install in the reverse order | ||
| Check | |||
| 6 | Mechanically lock front door (6) and check whether it can be opened with the inside door handle (2) |
