Wiring Diagram Of Windscreen Wiper - PE82.30-P-2000-97BBA
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 56L |
| A1 | Instrument cluster | 44L |
| B38/2 | Rain/light sensor | 16L |

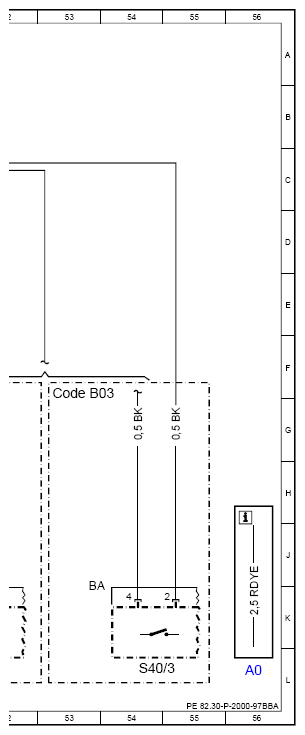

| Code B03 | Direct starting | 53F |

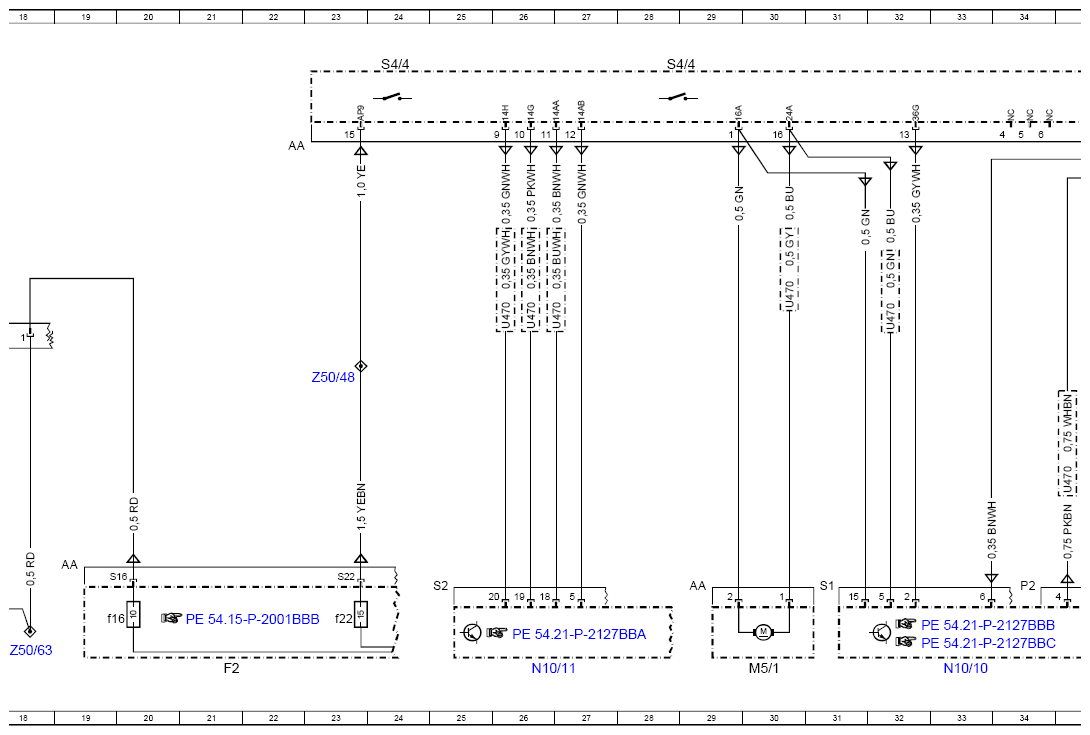

| F2 | Vehicle interior fuse and relay module | 21L |
| F2f16 | Fuse 16 | 19K |
| F2f22 | Fuse 22 | 23K |
| M5/1 | Windshield washer system pump | 30L |

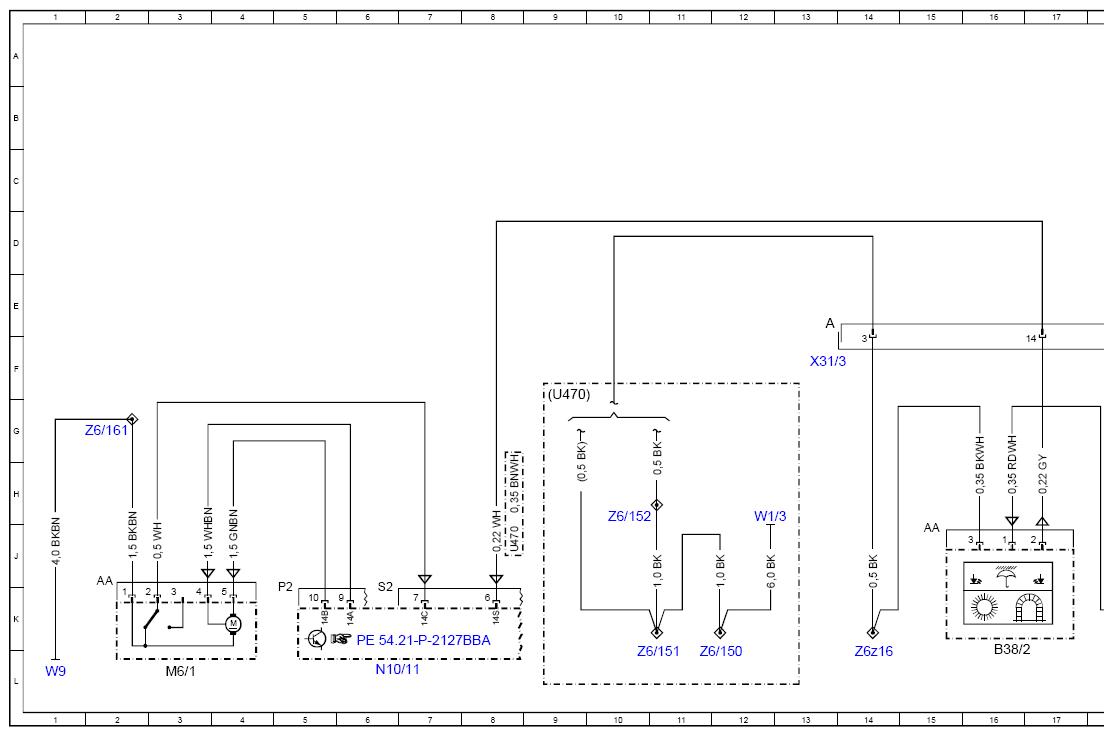

| M6/1 | Wiper motor | 3L |

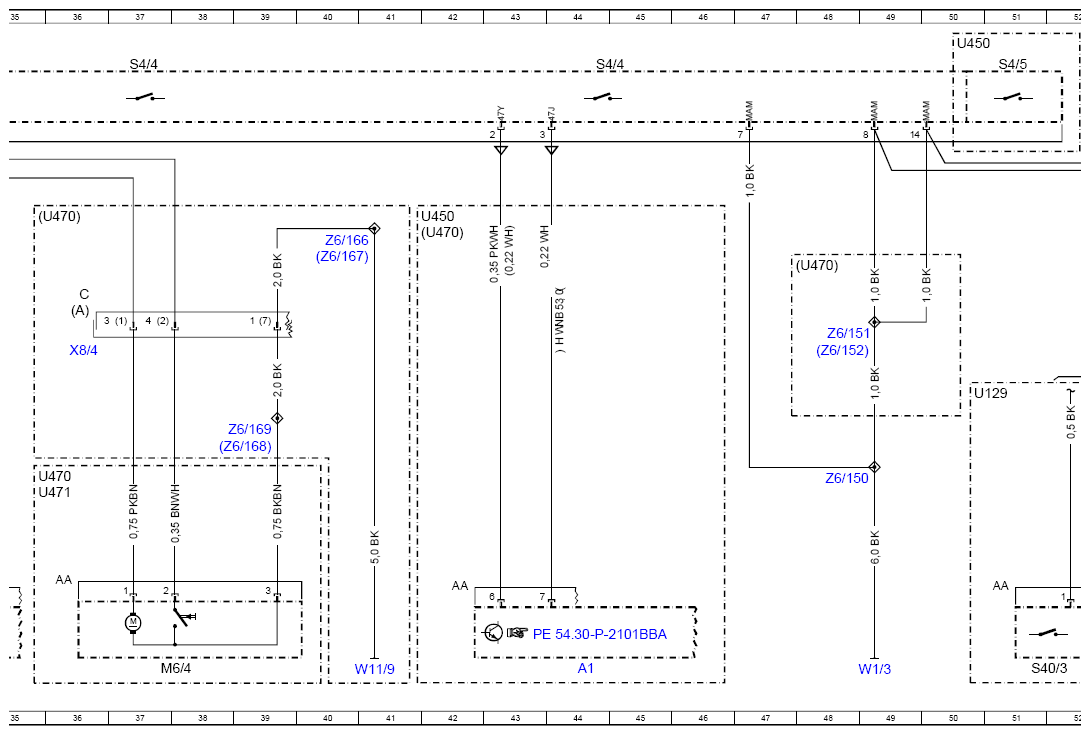

| M6/4 | Tailgate wiper motor | 37L |
| N10/10 | Center SAM control unit | 33L |
| N10/11 | Driver SAM control unit | 6L |
| N10/11 | Driver SAM control unit | 26L |
| S4/4 | Windshield wiper system switch | 28A |
| S4/4 | Windshield wiper system switch | 24A |
| S4/4 | Windshield wiper system switch | 37A |
| S4/4 | Windshield wiper system switch | 44A |
| S4/5 | Menu navigation button group | 51A |
| S40/3 | Clutch pedal switch | 54L |
| S40/3 | Clutch pedal switch | 51L |
| U129 | Not valid for direct starting | 50F |
| U450 | Valid for equipment without multifunction steering wheel | 41D |
| U450 | Valid for equipment without multifunction steering wheel | 50A |
| U470 | Valid for model 453.0 | 8J |
| U470 | Valid for model 453.0 | 9F |
| U470 | Valid for model 453.0 | 26E |
| U470 | Valid for model 453.0 | 27E |
| U470 | Valid for model 453.0 | 26E |
| U470 | Valid for model 453.0 | 35H |
| U470 | Valid for model 453.0 | 35H |
| U470 | Valid for model 453.0 | 32E |
| U470 | Valid for model 453.0 | 30E |
| U470 | Valid for model 453.0 | 35D |
| U470 | Valid for model 453.0 | 41D |
| U470 | Valid for model 453.0 | 47D |
| U471 | Valid for model 453.3 | 35H |
| W1/3 | Left cockpit ground point | 12H |
| W1/3 | Left cockpit ground point | 49L |
| W11/9 | Left rear ground point | 41L |
| W9 | Left front ground point (at lamp unit) | 1L |
| X31/3 | Dome lamp electrical connector | 13F |
| X8/4 | Trunk lid electrical connector | 36F |
| Z50/48 | Circuit 15 (fused) connector sleeve | 23F |
| Z50/63 | Circuit 30 (fused) connector sleeve | 18L |
| Z6/150 | Ground connection connector sleeve | 11L |
| Z6/150 | Ground connection connector sleeve | 48H |
| Z6/151 | Ground connection connector sleeve | 10L |
| Z6/151 | Ground connection connector sleeve | 48F |
| Z6/152 | Ground connection connector sleeve | 10H |
| Z6/152 | Ground connection connector sleeve | 48F |
| Z6/161 | Ground connection connector sleeve | 2G |
| Z6/166 | Circuit 31 connector sleeve | 40D |
| Z6/167 | Circuit 31 connector sleeve | 40D |
| Z6/168 | Circuit 31 connector sleeve | 39G |
| Z6/169 | Circuit 31 connector sleeve | 39G |
| Z6z16 | Ground connection connector sleeve | 14L |
