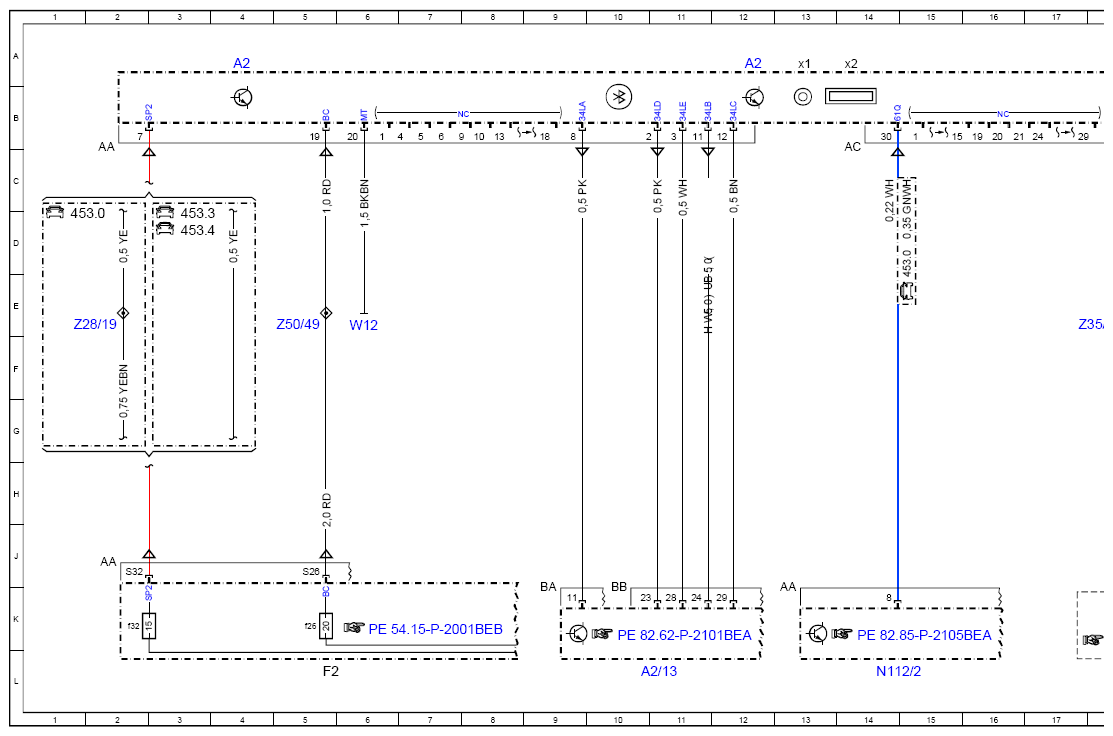

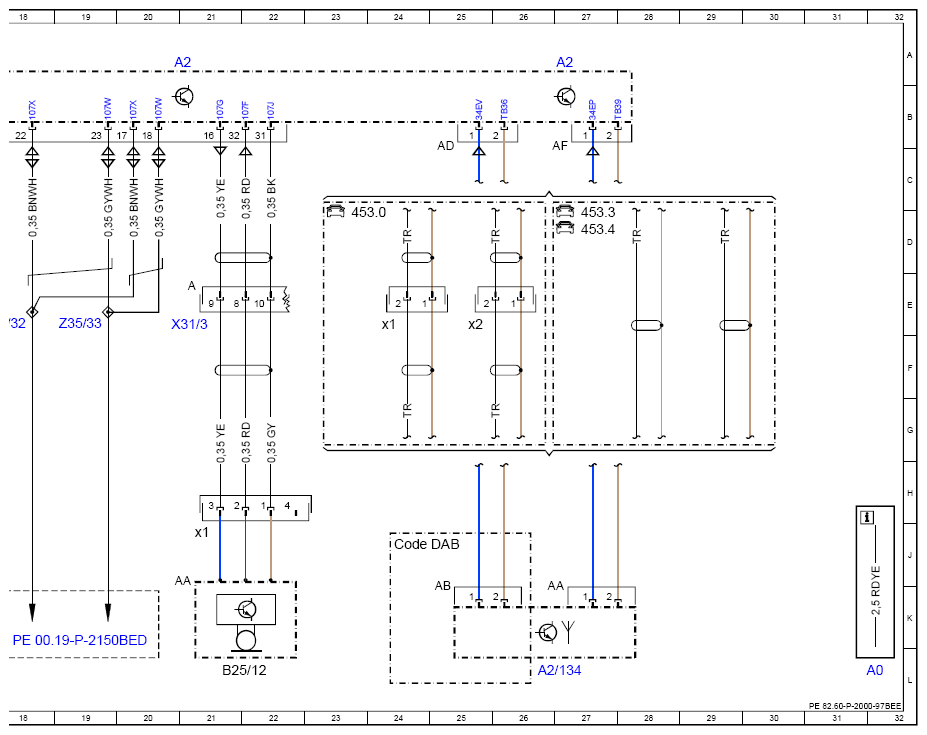

Wiring Diagram Of Radio - PE82.60-P-2000-97BEE
MODEL 453.091/391/491 up to model year 2020 with CODE 537 (smart Audio system) with CODE 561 (Radio 61C - PREMIUM without DAB with PREMIUM SOUND) with CODE 562 (Radio 62C - R0 with DAB and PREMIUM SOUND) except CODE 535 (smart Media system) except CODE C08 (Basic fittings f. radio)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A2 | Radio | 4A |
| A2 | Radio | 12A |
| A2 | Radio | 27A |
| A2 | Radio | 20A |
| A2/13 | Sound system amplifier control unit | 11L |
| A2/134 | FM, AM and DAB antenna | 26L |
| A2/134x1 | DAB antenna electrical connector | 24E |
| A2/134x2 | FM, AM antenna electrical connector | 25E |
| A2x1 | AUX jack | 13A |
| A2x2 | USB connection | 14A |
| B25/12 | Hands-free system microphone | 21L |
| B25/12x1 | Hands-free system microphone electrical connector | 21J |
| Code DAB | Digital radio (DAB) | 24J |
| F2 | Vehicle interior fuse and relay module | 5L |
| F2f26 | Fuse 26 | 5K |
| F2f32 | Fuse 32 | 2K |
| N112/2 | Telematics services communication module | 14L |
| W12 | Ground point (center console) | 6E |
| X31/3 | Dome lamp electrical connector | 21E |
| Z28/19 | Circuit 15R connector sleeve | 2E |
| Z35/32 | Diagnostic CAN (low) connector sleeve, multimedia | 18E |
| Z35/33 | Diagnostic CAN (high) connector sleeve, multimedia | 19E |
| Z50/49 | Circuit 30 (fused) connector sleeve | 5E |
