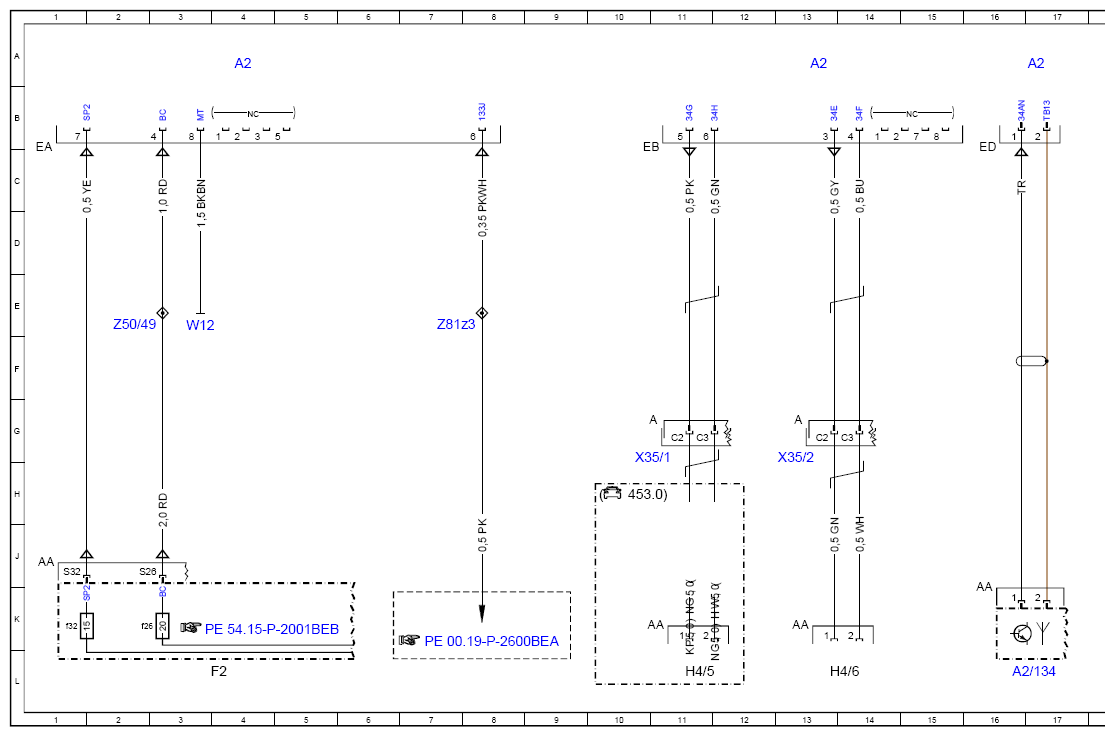

Wiring Diagram Of Radio - PE82.60-P-2000-97BED
MODEL 453.091/391/491 up to model year 2020 with CODE C08 (Basic fittings f. radio) except CODE 535 (smart Media system) except CODE 537 (smart Audio system)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| A2 | Radio | 4A |
| A2 | Radio | 13A |
| A2 | Radio | 17A |
| A2/134 | FM, AM and DAB antenna | 16L |
| F2 | Vehicle interior fuse and relay module | 4L |
| F2f26 | Fuse 26 | 2K |
| F2f32 | Fuse 32 | 1K |
| H4/5 | Left front door speaker | 11L |
| H4/6 | Right front door speaker | 13L |
| W12 | Ground point (center console) | 3E |
| X35/1 | Left front door electrical connector | 11H |
| X35/2 | Right front door electrical connector | 13H |
| Z50/49 | Circuit 30 (fused) connector sleeve | 2E |
| Z81z3 | Circuit 58d connector sleeve | 7E |
