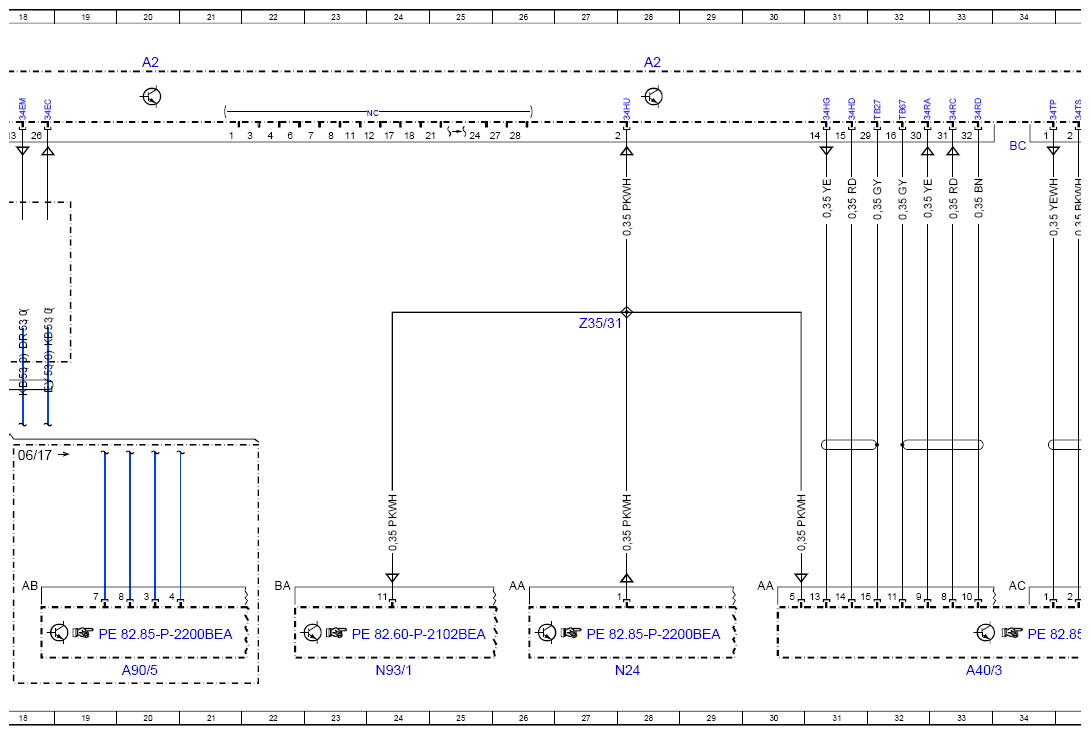

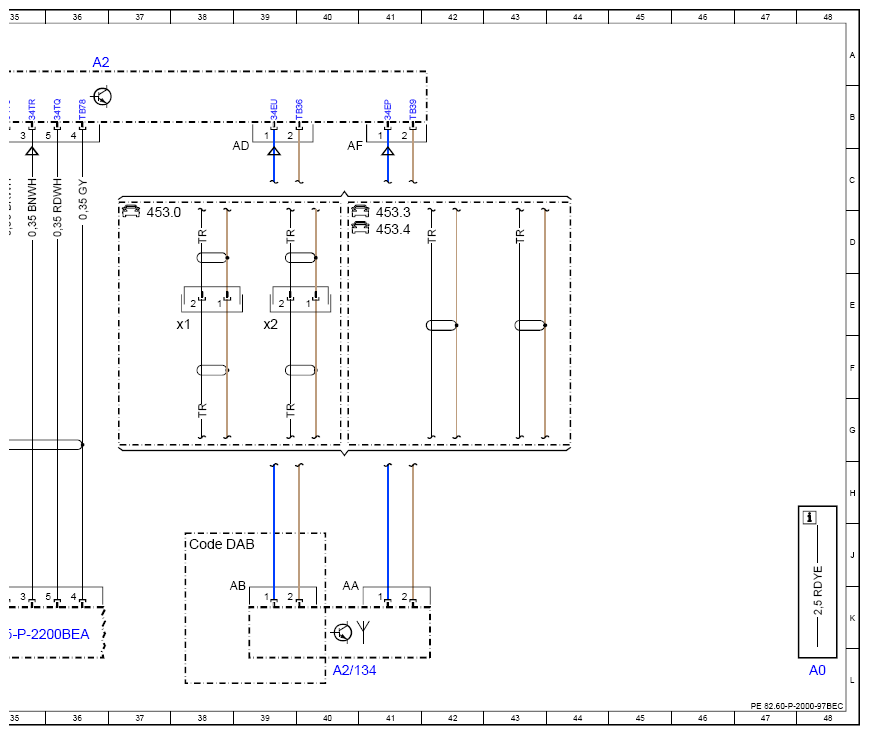

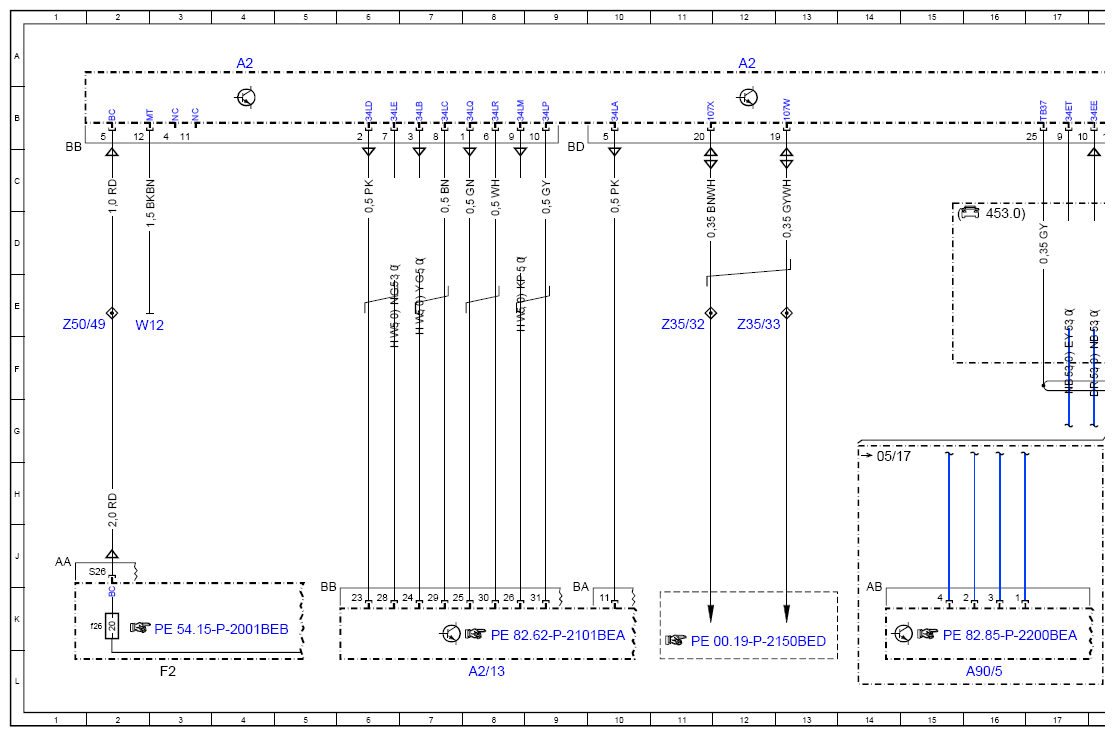

Wiring Diagram Of Radio - PE82.60-P-2000-97BEC
MODEL 453.091/391/491 up to model year 2020 with CODE 535 (smart Media system) with CODE 556 (Radio 56A MM2012 with DAB and PREMIUM SOUND) with CODE 557 (RADIO 57A MM2012 without DAB) except CODE 537 (smart Audio system) except CODE C08 (Basic fittings f. radio) with sound system
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| A2 | Radio | 4A |
| A2 | Radio | 12A |
| A2 | Radio | 20A |
| A2 | Radio | 28A |
| A2 | Radio | 36A |
| A2/13 | Sound system amplifier control unit | 8L |
| A2/134 | FM, AM and DAB antenna | 40L |
| A2/134x1 | DAB antenna electrical connector | 38E |
| A2/134x2 | FM, AM antenna electrical connector | 39E |
| A40/3 | Smart radio multimedia navigator | 33L |
| A90/5 | Multimedia connection unit | 16L |
| A90/5 | Multimedia connection unit | 20L |
| Code DAB | Digital radio (DAB) | 38J |
| F2 | Vehicle interior fuse and relay module | 3L |
| F2f26 | Fuse 26 | 2K |
| N24 | Multimedia operating unit | 28L |
| N93/1 | Audio gateway control unit | 24L |
| W12 | Ground point (center console) | 2E |
| Z35/31 | Telematics wake-up signal connector sleeve | 27E |
| Z35/32 | Diagnostic CAN (low) connector sleeve, multimedia | 11E |
| Z35/33 | Diagnostic CAN (high) connector sleeve, multimedia | 12E |
| Z50/49 | Circuit 30 (fused) connector sleeve | 1E |
