Wiring Diagram Of Radio - PE82.60-P-2000-97BBE
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) up to model year 2020 with CODE 537 (smart Audio system) with CODE 561 (Radio 61C - PREMIUM without DAB with PREMIUM SOUND) with CODE 562 (Radio 62C - R0 with DAB and PREMIUM SOUND) except CODE 535 (smart Media system) except CODE C08 (Basic fittings f. radio)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A2 | Radio | 5A |
| A2 | Radio | 12A |
| A2 | Radio | 20A |
| A2 | Radio | 25A |
| A2/13 | Sound system amplifier control unit | 3L |

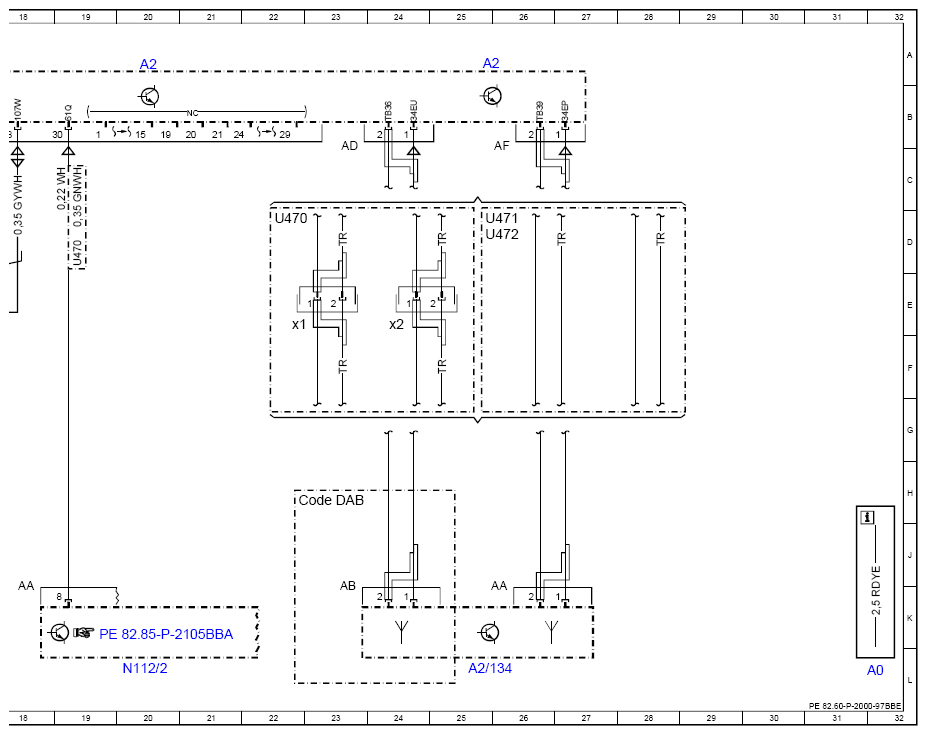

| A2/134 | FM, AM and DAB antenna | 25L |
| A2/134x1 | DAB antenna electrical connector | 22E |
| A2/134x2 | FM, AM antenna electrical connector | 24E |
| A2x1 | AUX jack | 6A |
| A2x2 | USB connection | 7A |

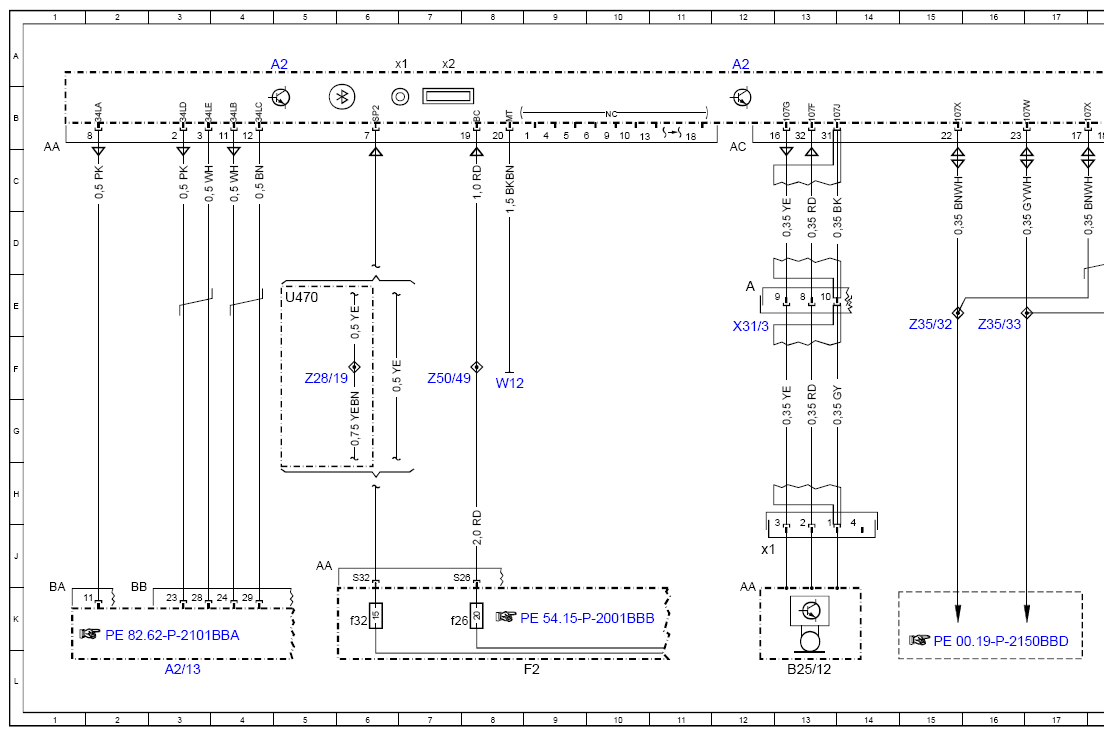

| B25/12 | Hands-free system microphone | 13L |
| B25/12x1 | Hands-free system microphone electrical connector | 12J |
| Code DAB | Digital radio (DAB) | 22H |
| F2 | Vehicle interior fuse and relay module | 9L |
| F2f26 | Fuse 26 | 7K |
| F2f32 | Fuse 32 | 6K |
| N112/2 | Telematics services communication module | 20L |
| U470 | Valid for model 453.0 | 5E |
| U470 | Valid for model 453.0 | 19D |
| U470 | Valid for model 453.0 | 22D |
| U471 | Valid for model 453.3 | 25D |
| U472 | Valid for model 453.4 | 25D |
| W12 | Ground point (center console) | 8F |
| X31/3 | Dome lamp electrical connector | 12E |
| Z28/19 | Circuit 15R connector sleeve | 5F |
| Z35/32 | Diagnostic CAN (low) connector sleeve, multimedia | 15E |
| Z35/33 | Diagnostic CAN (high) connector sleeve, multimedia | 16E |
| Z50/49 | Circuit 30 (fused) connector sleeve | 7F |
