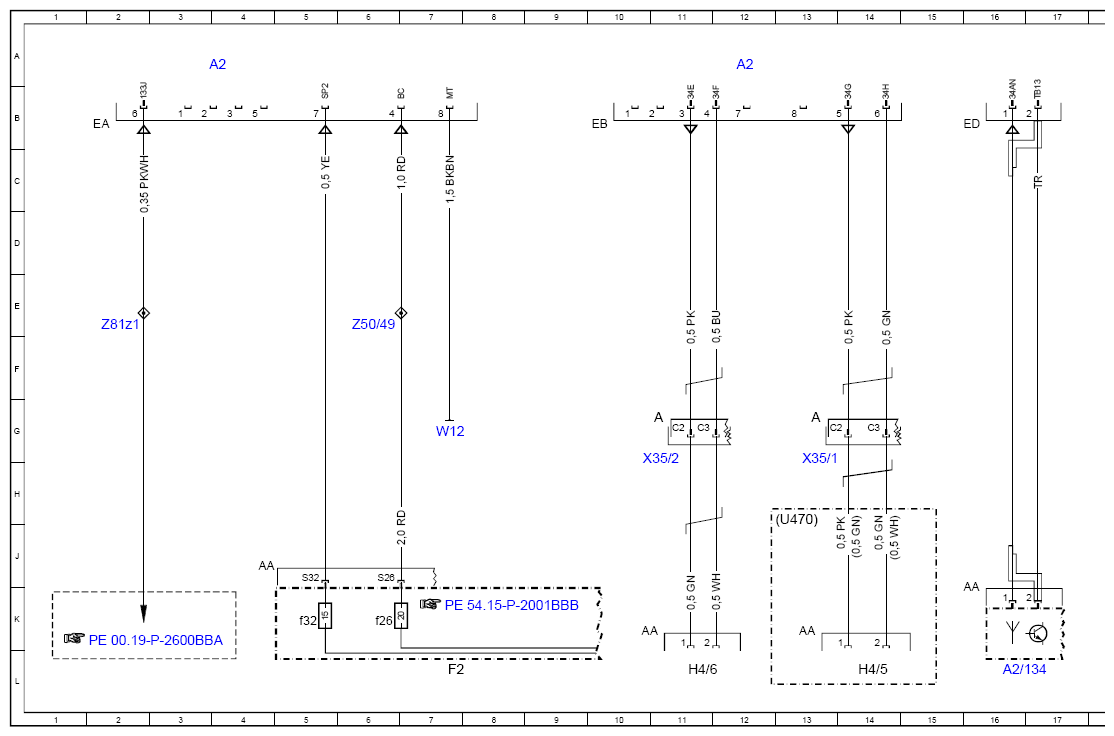

Wiring Diagram Of Radio - PE82.60-P-2000-97BBD
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) up to model year 2020 with CODE C08 (Basic fittings f. radio) except CODE 535 (smart Media system) except CODE 537 (smart Audio system)
| Code: | Designation: | Position: |
|---|---|---|

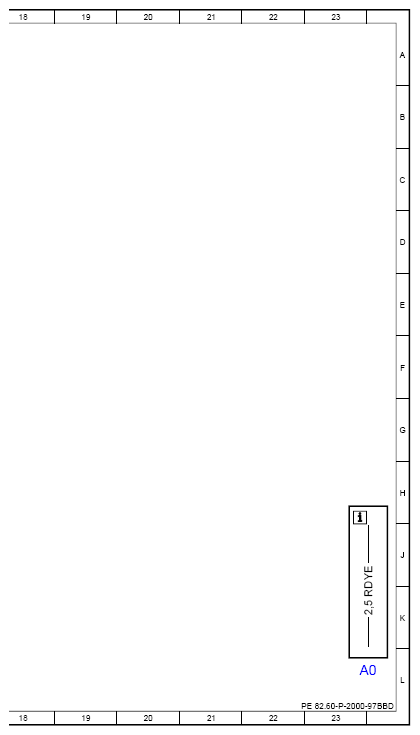

| A0 | Use of wiring diagrams | 23L |
| A2 | Radio | 4A |
| A2 | Radio | 12A |
| A2/134 | FM, AM and DAB antenna | 16L |
| F2 | Vehicle interior fuse and relay module | 7L |
| F2f26 | Fuse 26 | 6K |
| F2f32 | Fuse 32 | 5K |
| H4/5 | Left front door speaker | 14L |
| H4/6 | Right front door speaker | 11L |
| U470 | Valid for model 453.0 | 13H |
| W12 | Ground point (center console) | 7G |
| X35/1 | Left front door electrical connector | 13H |
| X35/2 | Right front door electrical connector | 11H |
| Z50/49 | Circuit 30 (fused) connector sleeve | 6E |
| Z81z1 | Circuit 58d connector sleeve | 2E |
