Wiring Diagram Of Radio - PE82.60-P-2000-97BBB
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) up to model year 2020 with CODE 535 (smart Media system) except CODE 537 (smart Audio system) except CODE 556 (Radio 56A MM2012 with DAB and PREMIUM SOUND) except CODE 557 (RADIO 57A MM2012 without DAB) except CODE C08 (Basic fittings f. radio)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 64L |
| A2 | Radio | 4A |
| A2 | Radio | 12A |
| A2 | Radio | 20A |
| A2 | Radio | 28A |
| A2 | Radio | 36A |
| A2 | Radio | 44A |
| A2 | Radio | 52A |
| A2 | Radio | 62A |

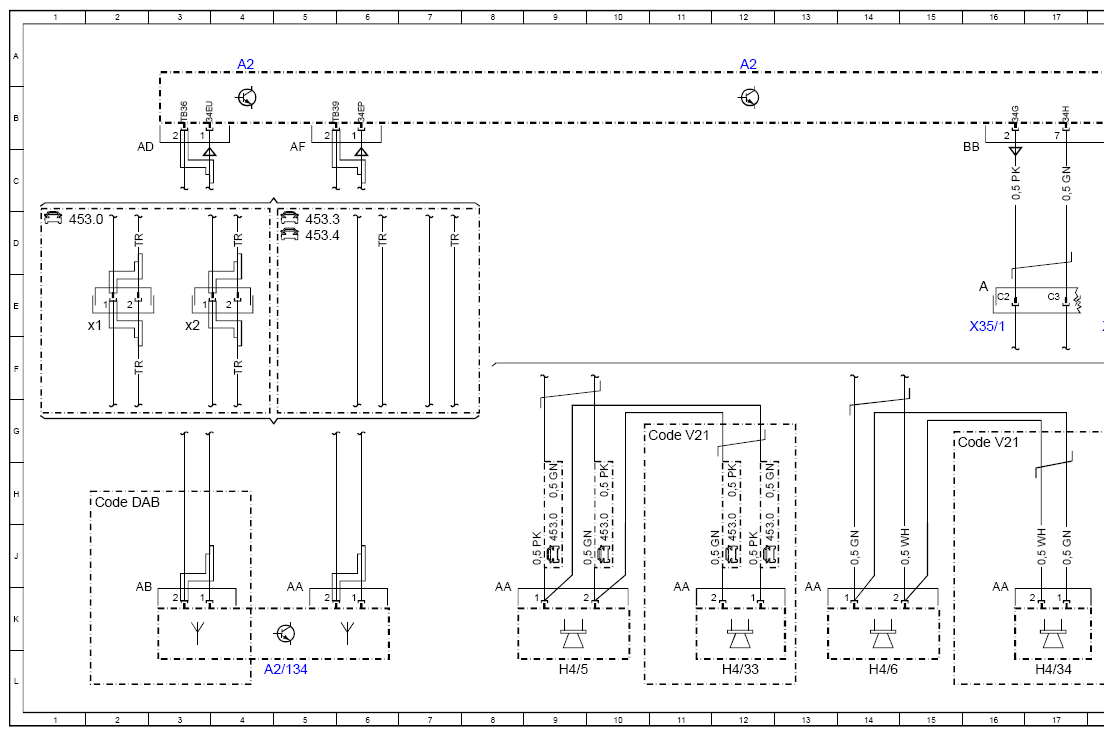

| A2/134 | FM, AM and DAB antenna | 5L |
| A2/134x1 | DAB antenna electrical connector | 2E |
| A2/134x2 | FM, AM antenna electrical connector | 3E |

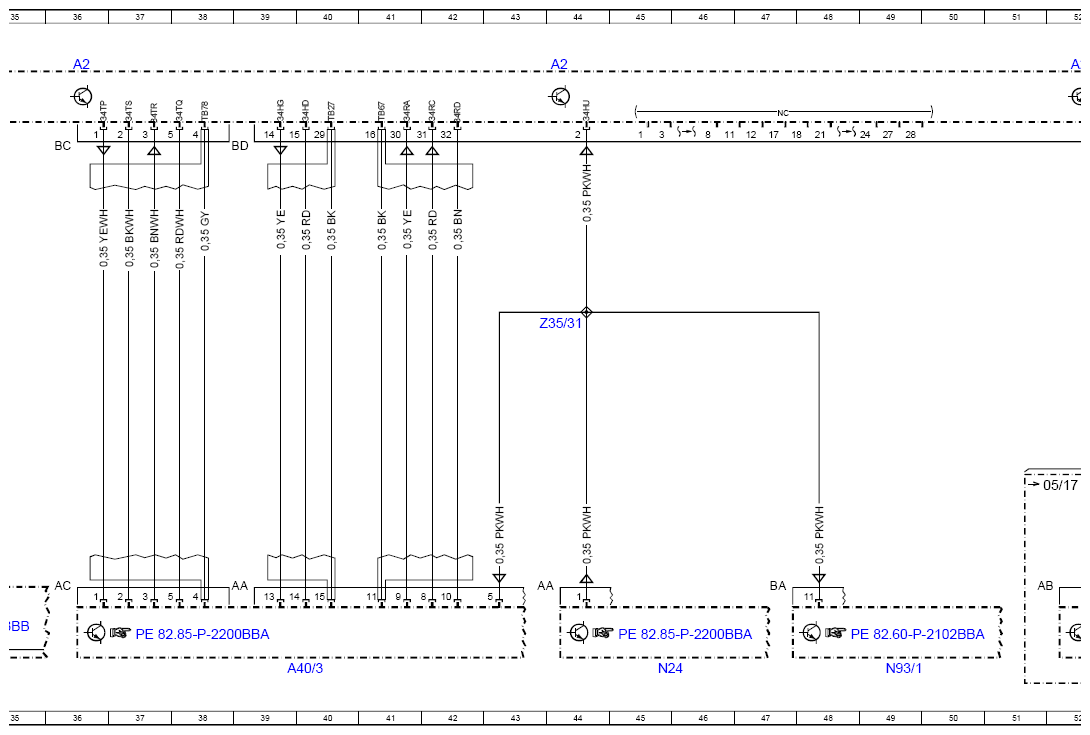

| A40/3 | smart radio multimedia navigator | 40L |

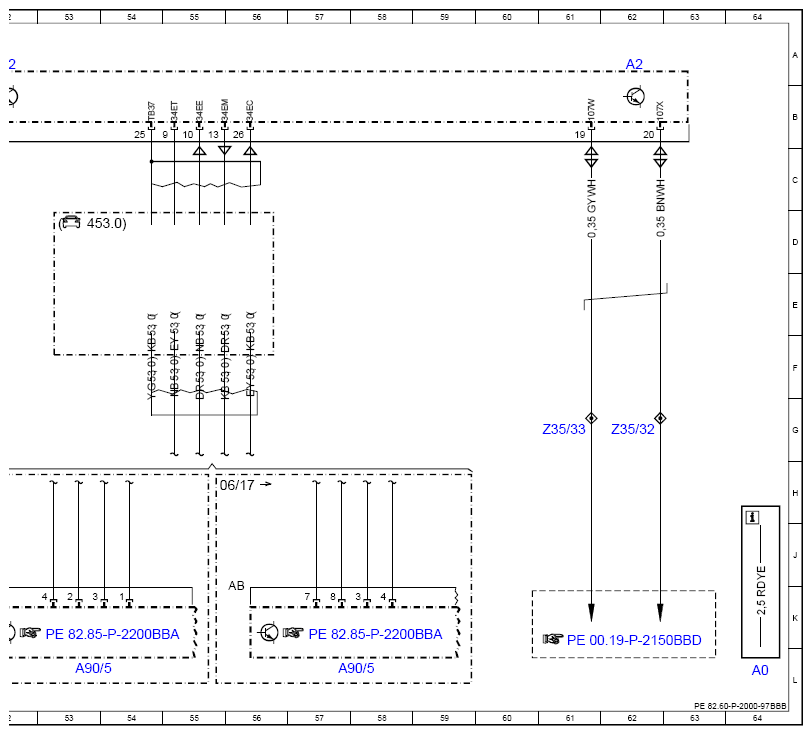

| A90/5 | Multimedia connection unit | 57L |
| A90/5 | Multimedia connection unit | 53L |
| Code DAB | Digital radio (DAB) | 2H |
| Code P26 | Cool & Media Package | 18F |
| Code P26 | Cool & Media Package | 18G |
| Code P74 | Comfort package | 19G |
| Code V21 | Electrically adjustable and heated outside mirror | 19F |
| Code V21 | Electrically adjustable and heated outside mirror | 10G |
| Code V21 | Electrically adjustable and heated outside mirror | 15G |
| F2 | Vehicle interior fuse and relay module | 34L |
| F2f26 | Fuse 26 | 32K |

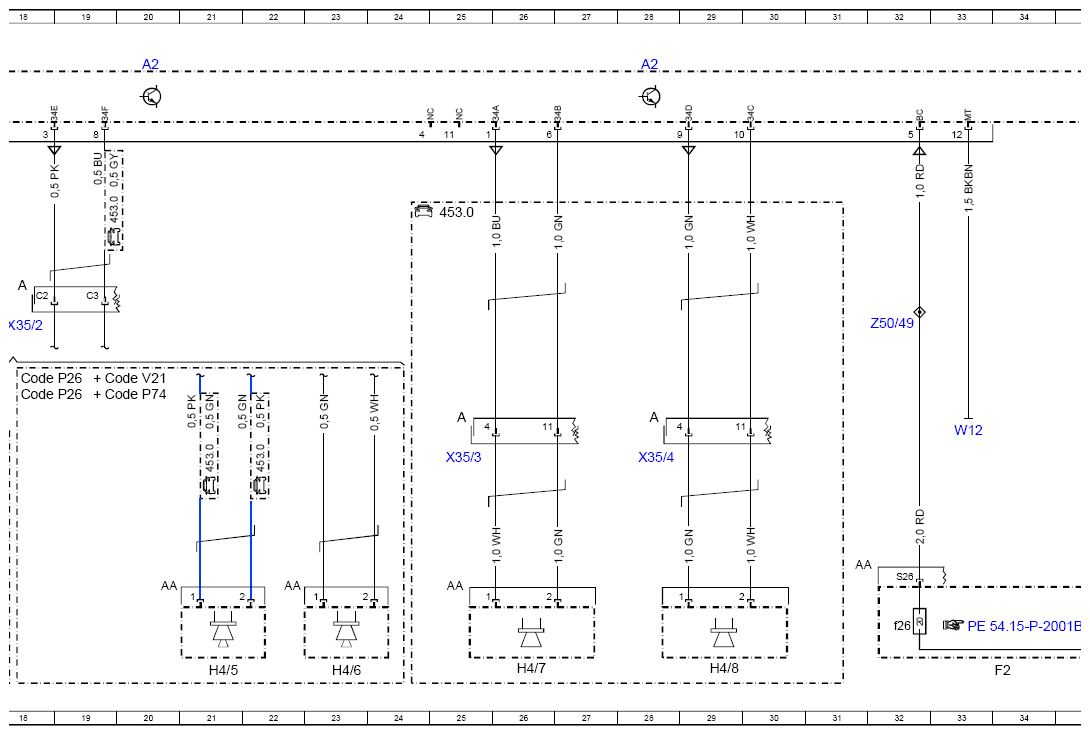

| H4/33 | Left mirror triangle tweeter | 12L |
| H4/34 | Right mirror triangle tweeter | 17L |
| H4/5 | Left front door speaker | 9L |
| H4/5 | Left front door speaker | 21L |
| H4/6 | Right front door speaker | 14L |
| H4/6 | Right front door speaker | 23L |
| H4/7 | Left rear speaker | 26L |
| H4/8 | Right rear speaker | 29L |
| N24 | Multimedia operating unit | 45L |
| N93/1 | Audio gateway control unit | 49L |
| W12 | Ground point (center console) | 33G |
| X35/1 | Left front door electrical connector | 16E |
| X35/2 | Right front door electrical connector | 18E |
| X35/3 | Left rear door electrical connector | 25H |
| X35/4 | Right rear door electrical connector | 28H |
| Z35/31 | Telematics wake-up signal connector sleeve | 44E |
| Z35/32 | Diagnostic CAN (low) connector sleeve, multimedia | 62G |
| Z35/33 | Diagnostic CAN (high) connector sleeve, multimedia | 61G |
| Z50/49 | Circuit 30 (fused) connector sleeve | 32E |
