Wiring Diagram Of Radio - PE82.60-P-2000-97BBA
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) up to model year 2020 with CODE 537 (smart Audio system) except CODE 535 (smart Media system) except CODE 561 (Radio 61C - PREMIUM without DAB with PREMIUM SOUND) except CODE 562 (Radio 62C - R0 with DAB and PREMIUM SOUND) except CODE C08 (Basic fittings f. radio)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A2 | Radio | 4A |
| A2 | Radio | 12A |
| A2 | Radio | 20A |
| A2 | Radio | 28A |

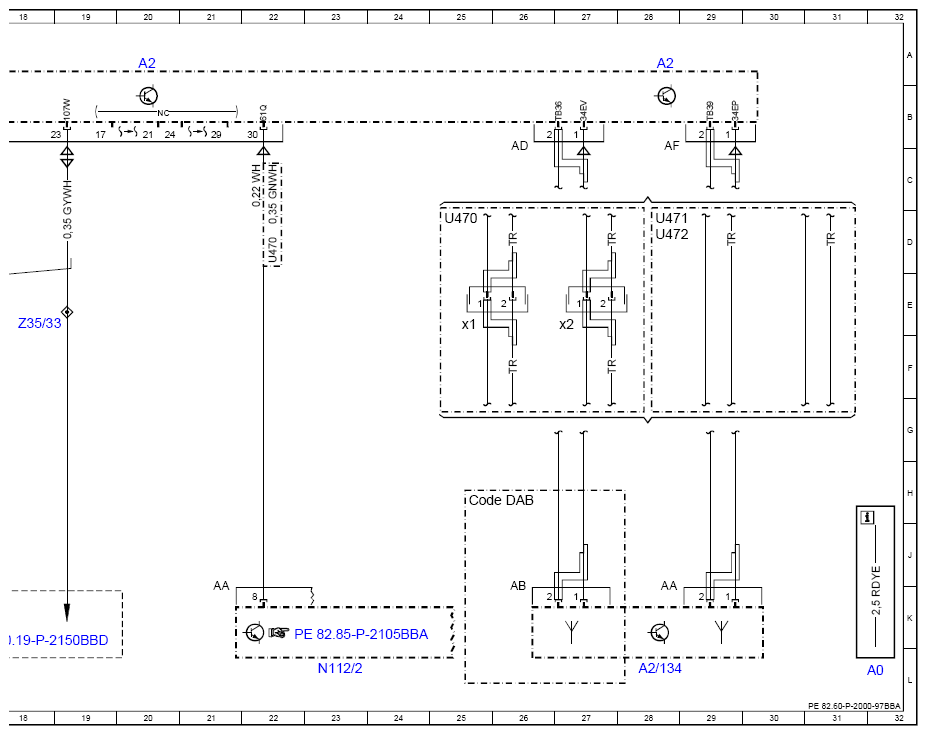

| A2/134 | FM, AM and DAB antenna | 28L |
| A2/134x1 | DAB antenna electrical connector | 25E |
| A2/134x2 | FM, AM antenna electrical connector | 27E |
| A2x1 | AUX jack | 6A |
| A2x2 | USB connection | 6A |
| B25/12 | Hands-free system microphone | 15L |
| B25/12x1 | Hands-free system microphone electrical connector | 14J |
| Code DAB | Digital radio (DAB) | 25H |
| F2 | Vehicle interior fuse and relay module | 8L |
| F2f26 | Fuse 26 | 7K |
| F2f32 | Fuse 32 | 5K |

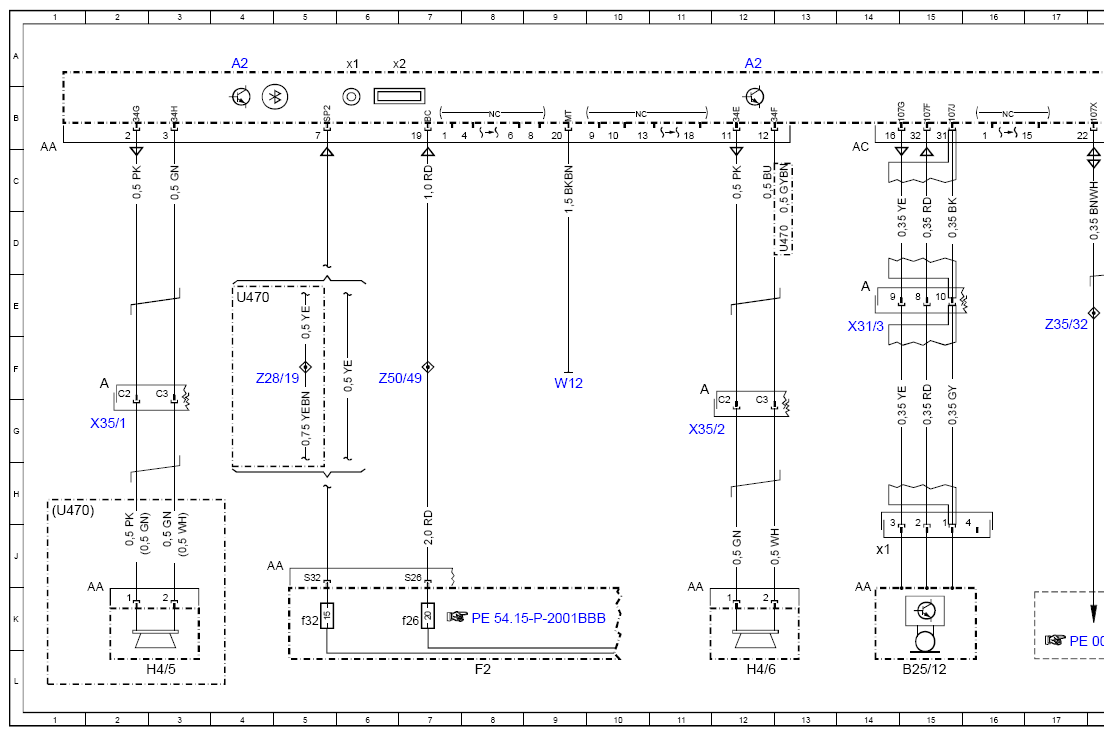

| H4/5 | Left front door speaker | 3L |
| H4/6 | Right front door speaker | 12L |
| N112/2 | Telematics services communication module | 23L |
| U470 | Valid for model 453.0 | 1H |
| U470 | Valid for model 453.0 | 4E |
| U470 | Valid for model 453.0 | 13D |
| U470 | Valid for model 453.0 | 22D |
| U470 | Valid for model 453.0 | 25D |
| U471 | Valid for model 453.3 | 28D |
| U472 | Valid for model 453.4 | 28D |
| W12 | Ground point (center console) | 9F |
| X31/3 | Dome lamp electrical connector | 14E |
| X35/1 | Left front door electrical connector | 2G |
| X35/2 | Right front door electrical connector | 11G |
| Z28/19 | Circuit 15R connector sleeve | 5F |
| Z35/32 | Diagnostic CAN (low) connector sleeve, multimedia | 17E |
| Z35/33 | Diagnostic CAN (high) connector sleeve, multimedia | 18E |
| Z50/49 | Circuit 30 (fused) connector sleeve | 7F |
